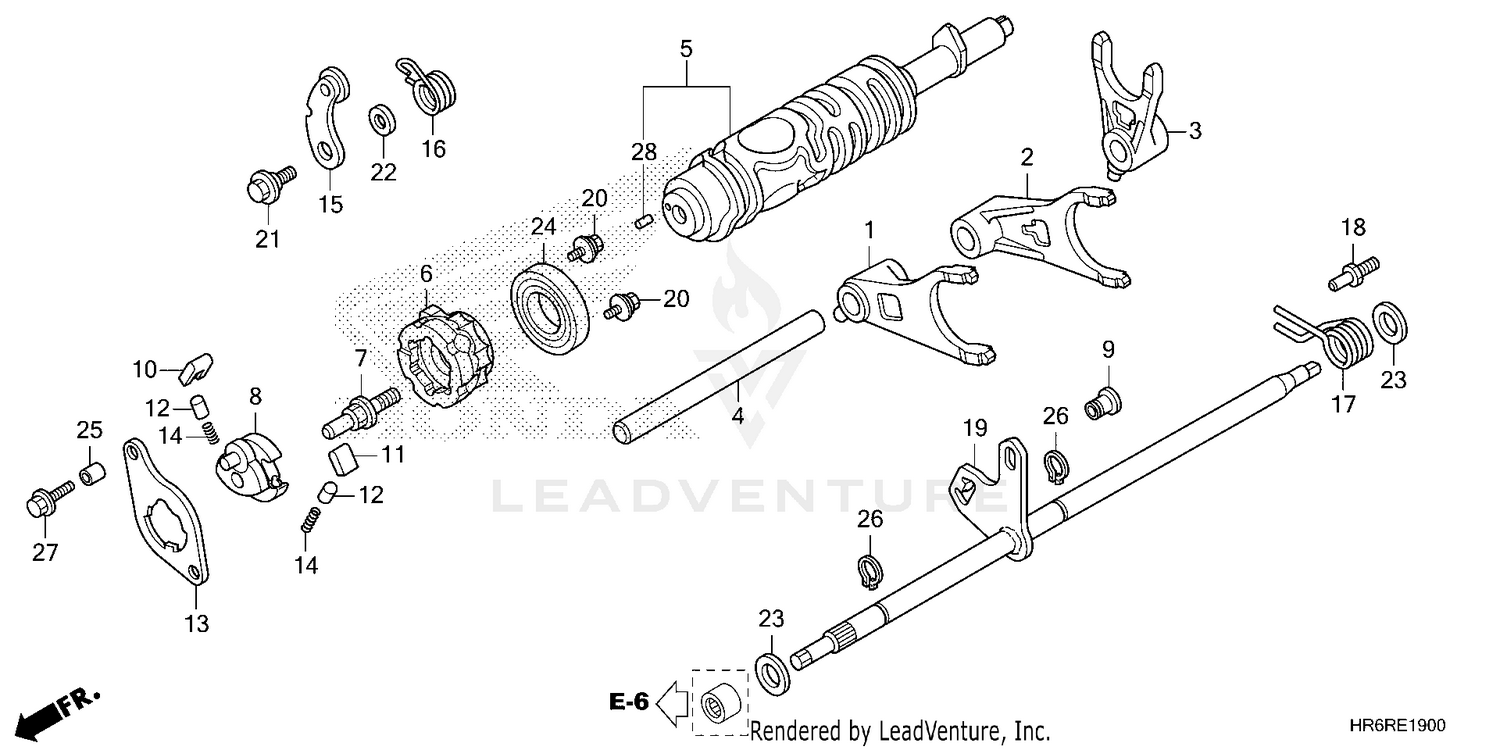

Gearshift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, FR. GEARSHIFT
24211-HR6-A60
|
$72.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-HR6-A60
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWINGARM, GEARSHIFT
24213-HR6-A60
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-HP0-A51
|
$28.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT
24310-HR6-B00
|
$284.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
CENTER, SHIFT DRUM
24312-HP7-A01
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SHIFTER
24315-HL4-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFTER, DRUM
24321-HC0-000
|
$65.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SHIFTER
24322-HP7-A00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAWL A, RATCHET
24324-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAWL B, RATCHET
24325-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-KBH-901
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, GUIDE
24328-HR6-B00
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, GEARSHIFT DRUM
24430-HP7-A00
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SHIFT DRUM STOPPER
24435-HP5-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SHIFT RETURN
24651-HP7-A00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, RETURN SPRING
24652-HR3-A70
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPINDLE, GEARSHIFT
24680-HR6-A60
|
$190.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X12)
90021-HP7-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-MR5-670
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (12MM)
90451-GF6-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (16005)
91001-HR3-HG1
|
$15.15 | ||
|
Unavailable |
|||
|
#24
BEARING (16005) (KOYO)
91051-719-003
|
$34.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
