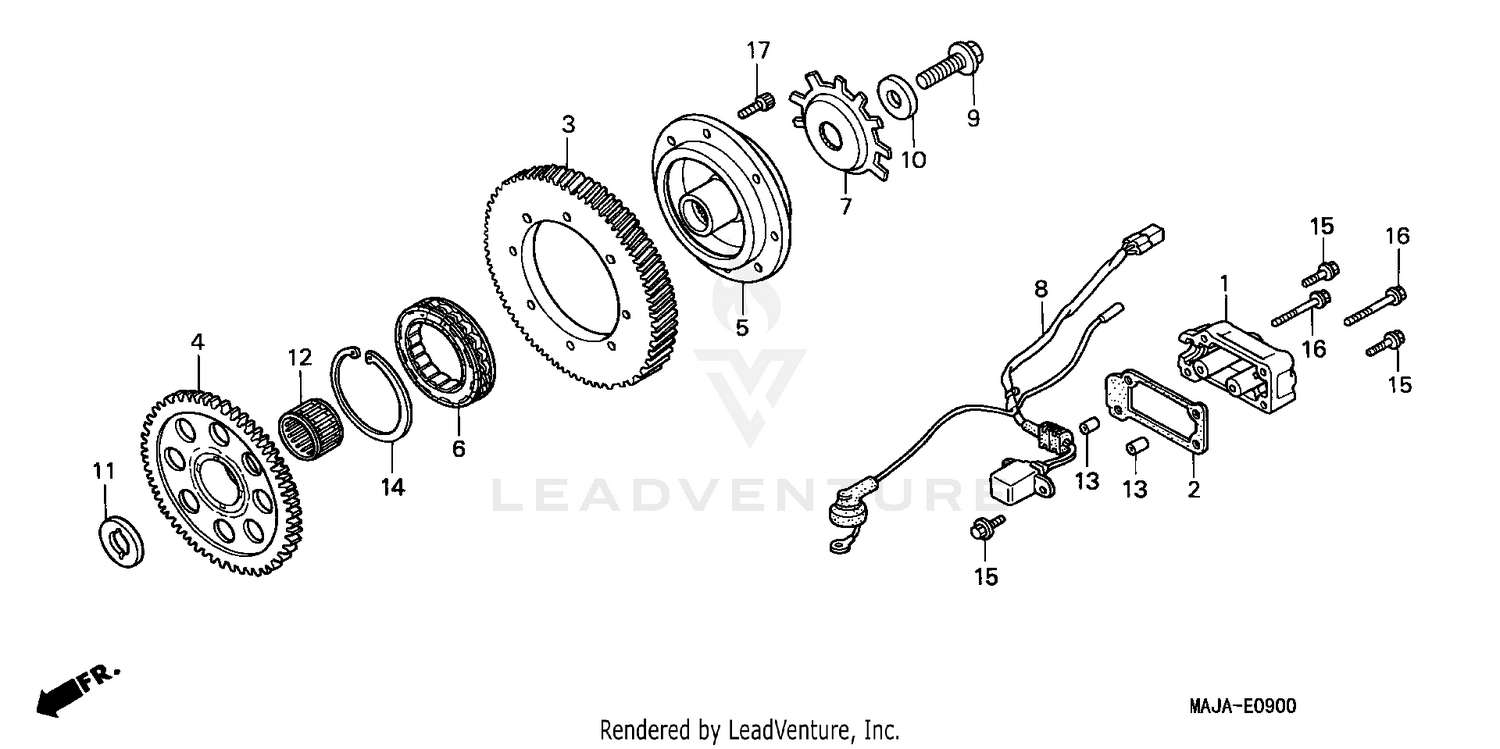

Starting Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, PULSER
11561-MT3-000
|
$47.73 | ||
|
Unavailable |
|||
|
#2
GASKET, PULSER COVER
11565-MY3-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, ALTERNATOR DRIVE (93T)
13321-MT3-000
|
$194.13 | ||
|
Unavailable |
|||
|
#4
GEAR, STARTER DRIVEN (68T)
28110-MY3-000
|
$152.68 | ||
|
Unavailable |
|||
|
#5
CLUTCH, STARTER (OUTER)
28121-MY3-000
|
$295.91 | ||
|
Unavailable |
|||
|
#6
CLUTCH, ONE-WAY
28126-MT3-004
|
$93.19 | ||
|
Unavailable |
|||
|
#7
ROTOR, PULSE
30291-MT3-000
|
$36.22 | ||
|
Unavailable |
|||
|
#8
IGNITION PULSE GENERATOR ASSY.
30300-MT3-003
|
$65.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (12X45)
90024-MT3-000
|
$13.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (12.5X35X5)
90401-MT3-000
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (30X60X5)
90406-MT3-000
|
$28.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, NEEDLE (40X45X26.8)
91026-MT3-003
|
$57.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP (INNER) (75MM)
94520-75000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X14)
96600-06014-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
