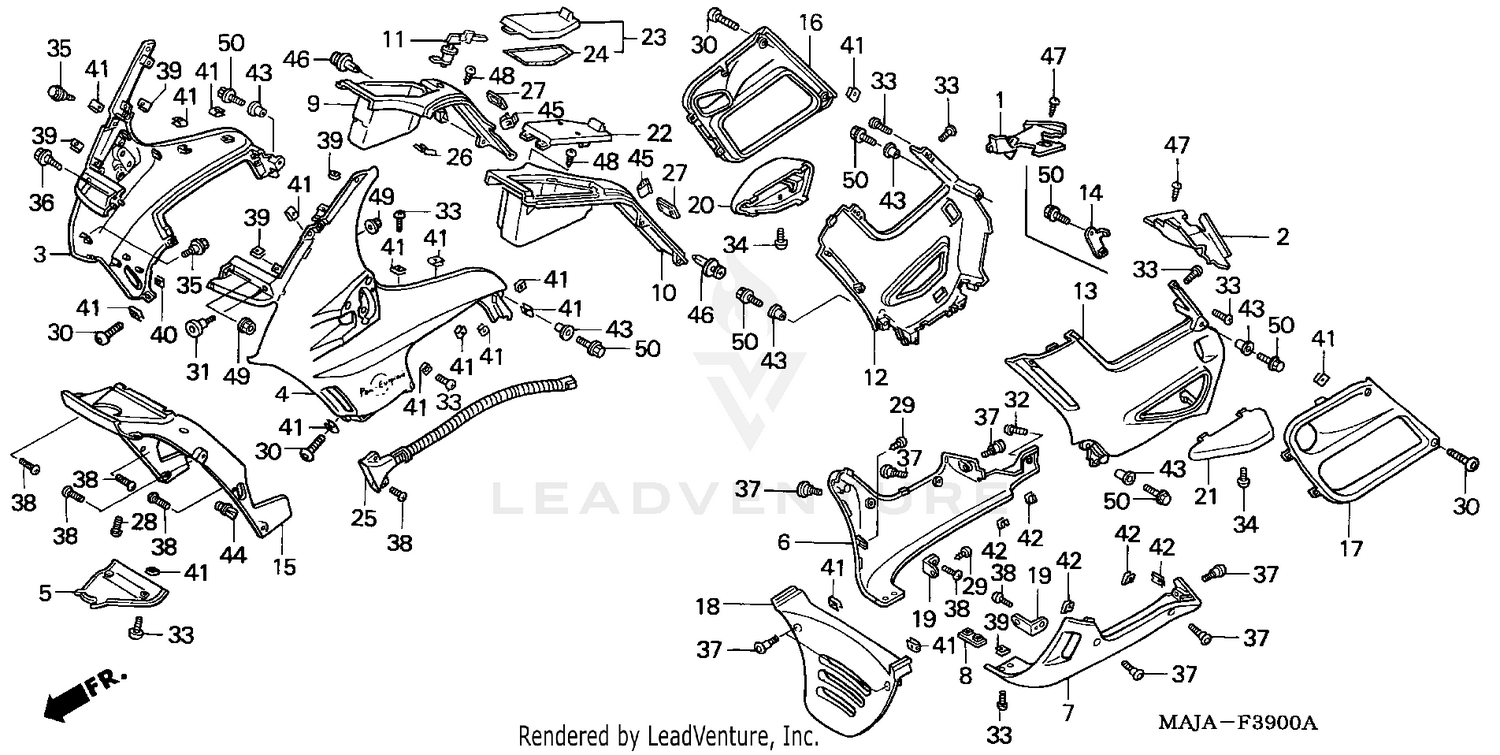

Cowl Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, R. FR. AIR
19070-MT3-000
|
$47.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, L. FR. AIR
19170-MT3-000
|
$47.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
COWL SET, R. (UPPER) (TYPE22) (WL)
64200-MAJ-T80ZA
|
$342.22 | ||
|
Unavailable |
|||
|
#4
COWL SET, L. (UPPER) (TYPE22) (WL)
64201-MAJ-T80ZA
|
$342.22 | ||
|
Unavailable |
|||
|
#5
COVER, HEADLIGHT (LOWER) *NH1* (BLACK)
64215-MY3-000ZB
|
$38.57 | ||
|
Unavailable |
|||
|
#6
COWL, R. (LOWER) *NH285* (GUSTO GRAY)
64220-MT3-000ZA
|
$192.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWL, L. (LOWER) *NH285* (GUSTO GRAY)
64221-MT3-000ZA
|
$192.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, COWL SETTING (LOWER)
64222-MT3-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
POCKET, R. COWL *NH285* (GUSTO GRAY)
64225-MAJ-G00ZA
|
$199.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
POCKET, L. COWL *NH285* (GUSTO GRAY)
64226-MAJ-G00ZA
|
$132.34 | ||
|
Unavailable |
|||
|
#11
LOCK ASSY., POCKET LID
64228-MT3-003
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
COWL, R. MIDDLE *R114CU* (CANDY WINE BERRY RED-U)
64230-MAJ-G50ZC
|
$345.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
COWL, L. MIDDLE *R114CU* (CANDY WINE BERRY RED-U)
64231-MAJ-G50ZC
|
$324.27 | ||
|
Unavailable |
|||
|
#14
STAY, MIDDLE COWL
64233-MT3-000
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
COWL, MIDDLE (INNER) *R114CU* (CANDY WINE BERRY RED-U)
64235-MT3-000ZK
|
$133.17 | ||
|
Unavailable |
|||
|
#16
COVER, R. MAINTENANCE *R114CU* (CANDY WINE BERRY RED-U)
64245-MAJ-G50ZC
|
$109.73 | ||
|
Unavailable |
|||
|
#17
COVER, L. MAINTENANCE *R114CU* (CANDY WINE BERRY RED-U)
64246-MAJ-A40ZC
|
$109.73 | ||
|
Unavailable |
|||
|
#18
PANEL, FR. *NH285* (GUSTO GRAY)
64255-MT3-000ZA
|
$158.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, COWL (LOWER)
64256-MT3-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, R. ENGINE GUARD *NH285* (GUSTO GRAY)
64260-MAJ-G00ZA
|
$65.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, L. ENGINE GUARD *NH285* (GUSTO GRAY)
64261-MT3-000ZA
|
$61.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
LID, L. COWL POCKET *NH285* (GUSTO GRAY)
64271-MT3-010ZA
|
$39.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
LID, R. COWL POCKET *NH285* (GUSTO GRAY)
64272-MAJ-G00ZA
|
$66.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, POCKET LID
64274-MT3-300
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUCT, FRESH AIR IN.
64280-MT3-000
|
$65.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, LOCK KEY SETTING
75581-673-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, MAINTENANCE *NH285* (GUSTO GRAY)
77121-MT3-000ZA
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, SPECIAL (5X16)
90001-MG1-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (4X12) (PO)
90101-SA4-000
Superseded by 93913-14280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (4X12) (PO) SCREW, PAN (4X8)
93913-14280
|
$0.95 | ||
|
Unavailable |
|||
|
#30
SCREW, TRUSS (5X16)
90103-MT3-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, SPECIAL (6X19)
90104-MN4-000
|
$7.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, PAN (6X11)
90106-KY2-701
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCREW, TRUSS (5X16)
90109-SB6-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TRUSS (5X16)
90111-MT3-000
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
90113-MJ4-670
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN (6X14)
90113-MM5-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, VISOR SETTING
90114-KW7-900
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, PLATE (5MM)
90305-MN5-000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, CLIP (6MM)
90311-MT3-000
|
$7.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT, CLIP (5MM)
90312-MT3-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, SPRING (6MM)
90320-MM5-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER (6X20) WASHER, CHAIN CASE SETTING
90512-KF9-900
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER (6X20) (L. SIDE ONLY)
90512-422-000
Superseded by 90512-KF9-900
|
$3.84 | ||
|
Unavailable |
|||
|
#44
CLIP, SPLASH SHIELD
90657-SB0-003
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP, SNAP FITTING
90666-SD4-003
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
SCREW, TAPPING (5X8)
93903-25080
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW, TAPPING (5X12)
93903-25280
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
