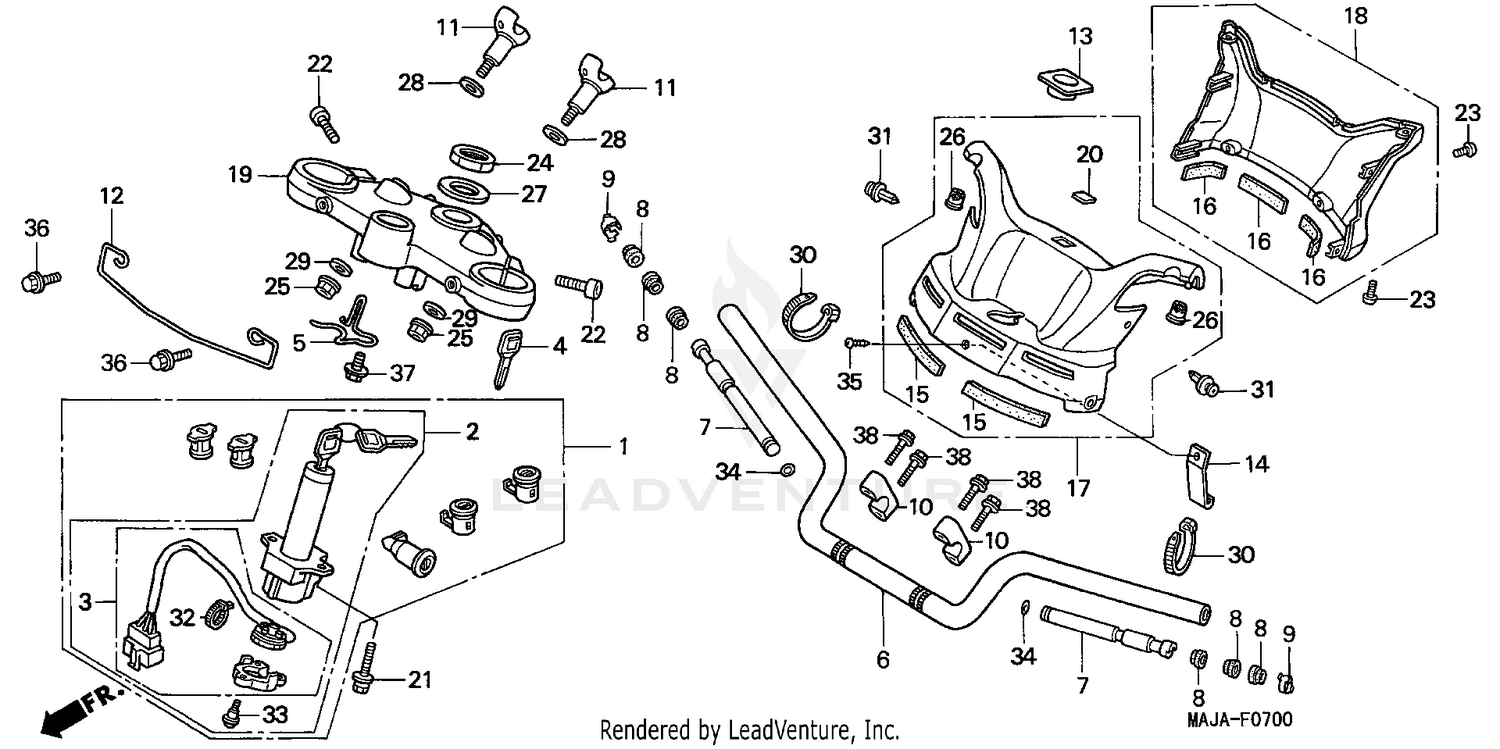

Handlebar@top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK SET
06350-MAJ-505
|
$234.82 | ||
|
Available to order. Add to View Price |
|||
|
#1
LOCK SET
35010-MAJ-A31
Superseded by 06350-MAJ-505
|
$234.82 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK
35100-MAJ-A32
Superseded by 35012-MAJ-505
|
$114.41 | ||
|
Unavailable |
|||
|
#3
BASE, CONTACT
35101-MAJ-G41
|
$50.52 | ||
|
Unavailable |
|||
|
#4
KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)
35121-KW3-771
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MT3-670
Superseded by 35121-KW3-771
|
$12.25 | ||
|
Unavailable |
|||
|
#4
KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)
35122-KW3-771
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MT3-670
Superseded by 35122-KW3-771
|
$12.25 | ||
|
Unavailable |
|||
|
#6
HANDLEBAR (NOT AVAILABLE)
53100-MAJ-G00
|
$157.06 | ||
|
Unavailable |
|||
|
#7
WEIGHT B, HANDLE
53106-MAJ-G00
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, HANDLE WEIGHT (B)
53107-MY1-000
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, HANDLE WEIGHT SNAP
53108-MK4-000
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, HANDLE (UPPER)
53131-HB6-000
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, HANDLE (LOWER)
53134-MT3-000
|
$24.86 | ||
|
Unavailable |
|||
|
#12
GUIDE, CABLE
53135-MT3-000
|
$9.31 | ||
|
Unavailable |
|||
|
#13
COVER, COMBINATION & LOCK SWITCH (NOT AVAILABLE)
53136-MT3-000
|
$7.42 | ||
|
Unavailable |
|||
|
#14
STAY, HANDLE COVER (UPPER) (NOT AVAILABLE)
53137-MT3-010
|
$6.84 | ||
|
Unavailable |
|||
|
#15
SEAL, FR. HANDLE COVER (NOT AVAILABLE)
53151-MAJ-G00
|
$5.39 | ||
|
Unavailable |
|||
|
#16
SEAL, RR. HANDLE COVER (NOT AVAILABLE)
53152-MAJ-G00
|
$3.45 | ||
|
Unavailable |
|||
|
#17
COVER ASSY., FR. HANDLE *NH285* (GUSTO GRAY)
53155-MAJ-G00ZA
|
$170.43 | ||
|
Unavailable |
|||
|
#18
COVER ASSY., RR. HANDLE *NH285* (GUSTO GRAY)
53156-MAJ-G00ZA
|
$126.37 | ||
|
Unavailable |
|||
|
#19
BRIDGE, FORK TOP
53240-MAJ-G50
|
$205.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
MARK, WING
87609-MAJ-G00
|
$13.62 | ||
|
Unavailable |
|||
|
#21
BOLT, SOCKET (8MM)
90100-KV3-700
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X30)
90112-KM4-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, VISOR SETTING
90114-KW7-900
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, STEERING STEM
90304-425-000
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#26
NUT, INSERT (5X0.8)
90316-MJ1-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, STEERING STEM
90503-425-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (12MM)
90531-011-010
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, HANDLE CUSHION
90535-KB9-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND, WIRE HARNESS
90651-MA6-720
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BAND, SELF-LOCK
91058-MG9-681
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TAPPING (3X16)
91059-KY2-711
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (11.5X2)
91304-216-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, TAPPING (5X10)
93903-35180
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (8X35)
95801-08035-08
|
$2.38 | ||
|
Unavailable |
|||
