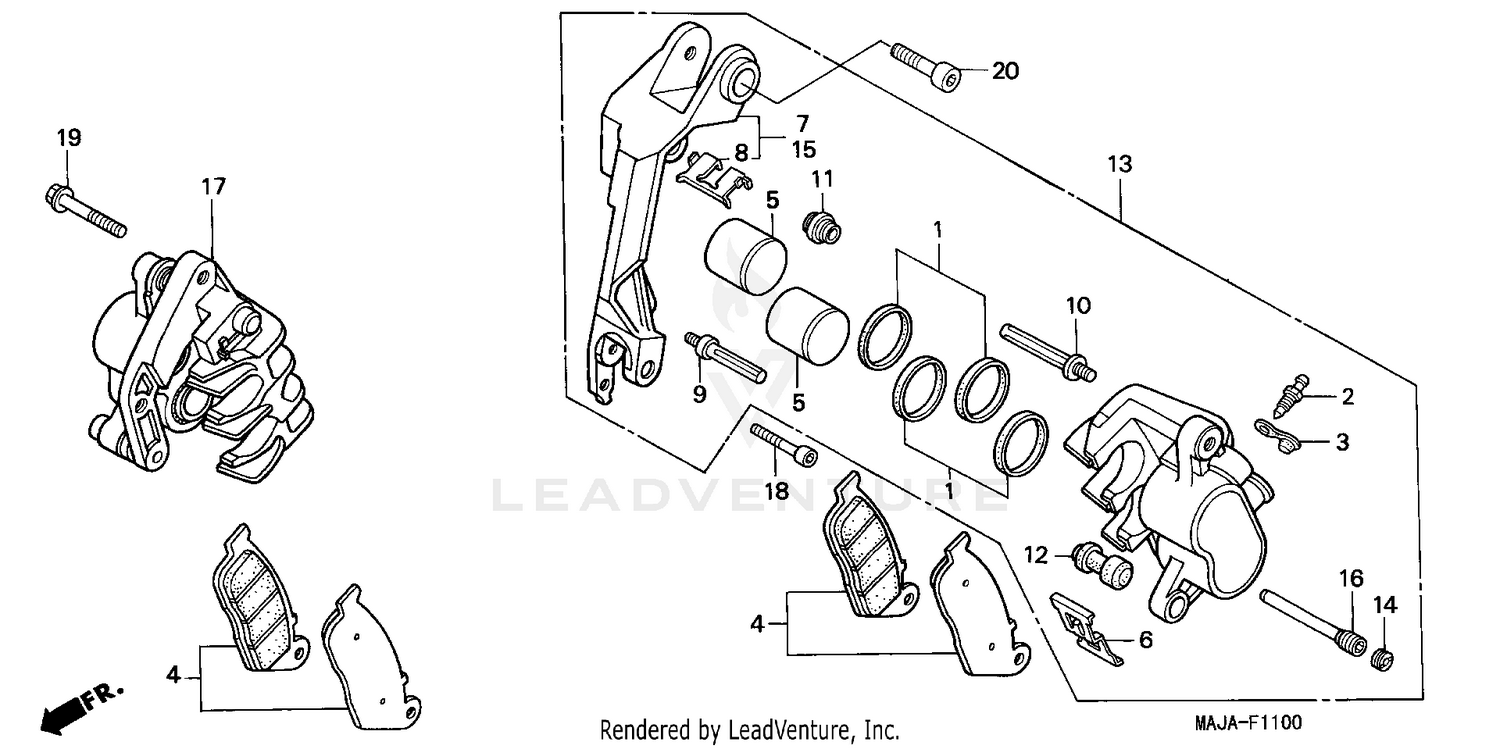

Front Brake Caliper (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD SET, FR. BRAKE (SEE KIT P/N--END OF BLOCK)
45105-ML7-405
|
$66.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON (NISSIN)
45107-ML4-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. FR. CALIPER (NISSIN)
45110-MT3-006
|
$130.86 | ||
|
Unavailable |
|||
|
#8
RETAINER
45112-ML7-921
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT A, PIN (NISSIN)
45131-ML7-921
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, PIN
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT B
45133-MA3-006
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-MT3-305
|
$461.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, R. FR. CALIPER (NOT AVAILABLE)
45210-MT3-006
|
$121.58 | ||
|
Unavailable |
|||
|
#16
PIN, HANGER (NISSIN)
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)
45250-MT3-305
|
$369.59 | ||
|
Unavailable |
|||
|
#18
BOLT, SOCKET (6X25)
90105-MJ1-000
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X32)
90107-MT3-003
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X36)
90131-ML7-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
