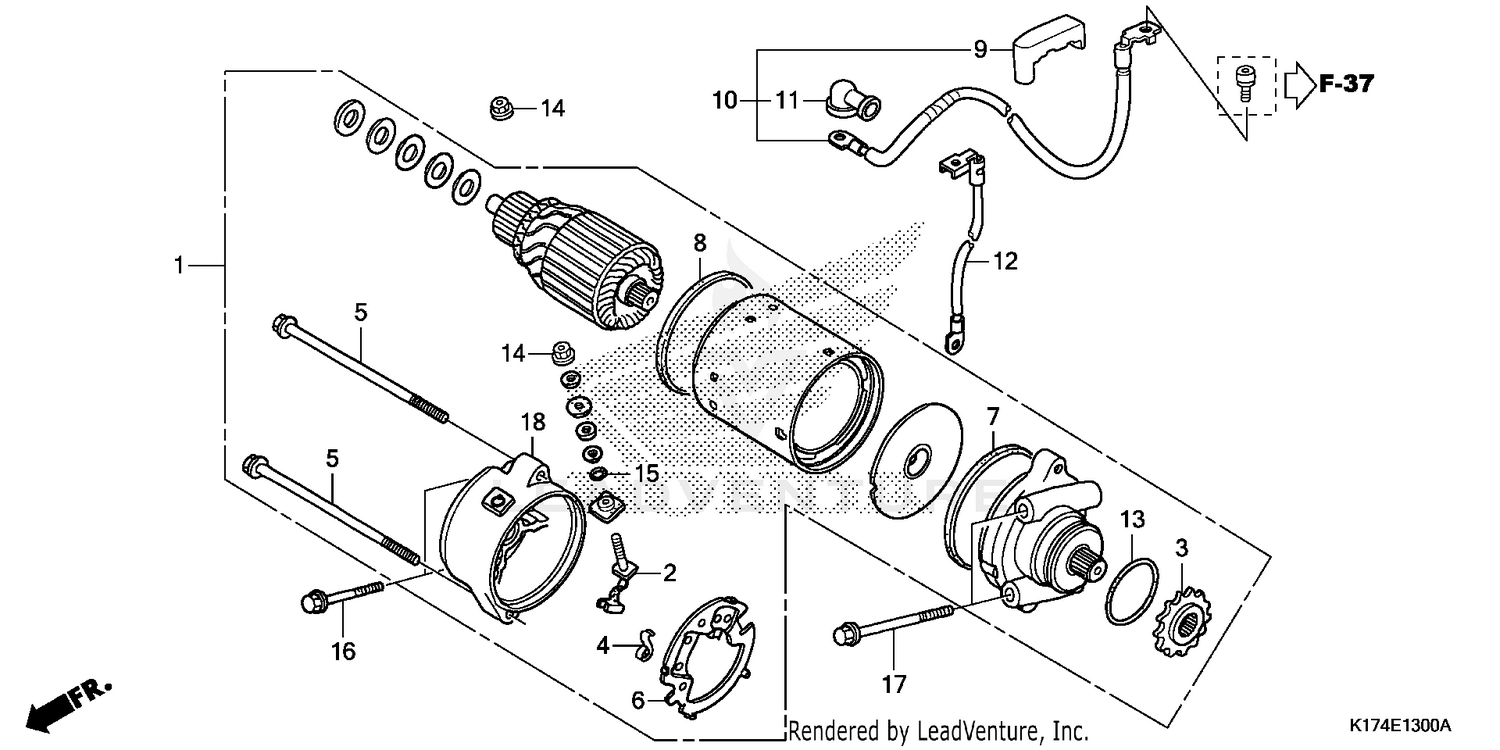

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY. (MITSUBA)
31200-KW4-018
|
$687.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31201-KS5-901
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, STARTER MOTOR (13T)
31202-216-154
|
$57.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-KC1-901
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER SET, BRUSH
31206-MN4-008
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, SEAL
31207-179-711
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER B, STARTER MAGNETIC TERMINAL
32406-KR3-870
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, STARTER MOTOR
32410-KEB-900
|
$51.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#12
CABLE, BATTERY GROUND
32601-KR3-870
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING, PINION CAP
53438-611-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X65)
96001-06065-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, RR.
31203-KW4-008
|
$75.31 | ||
|
Available to order. Add to View Price |
|||
