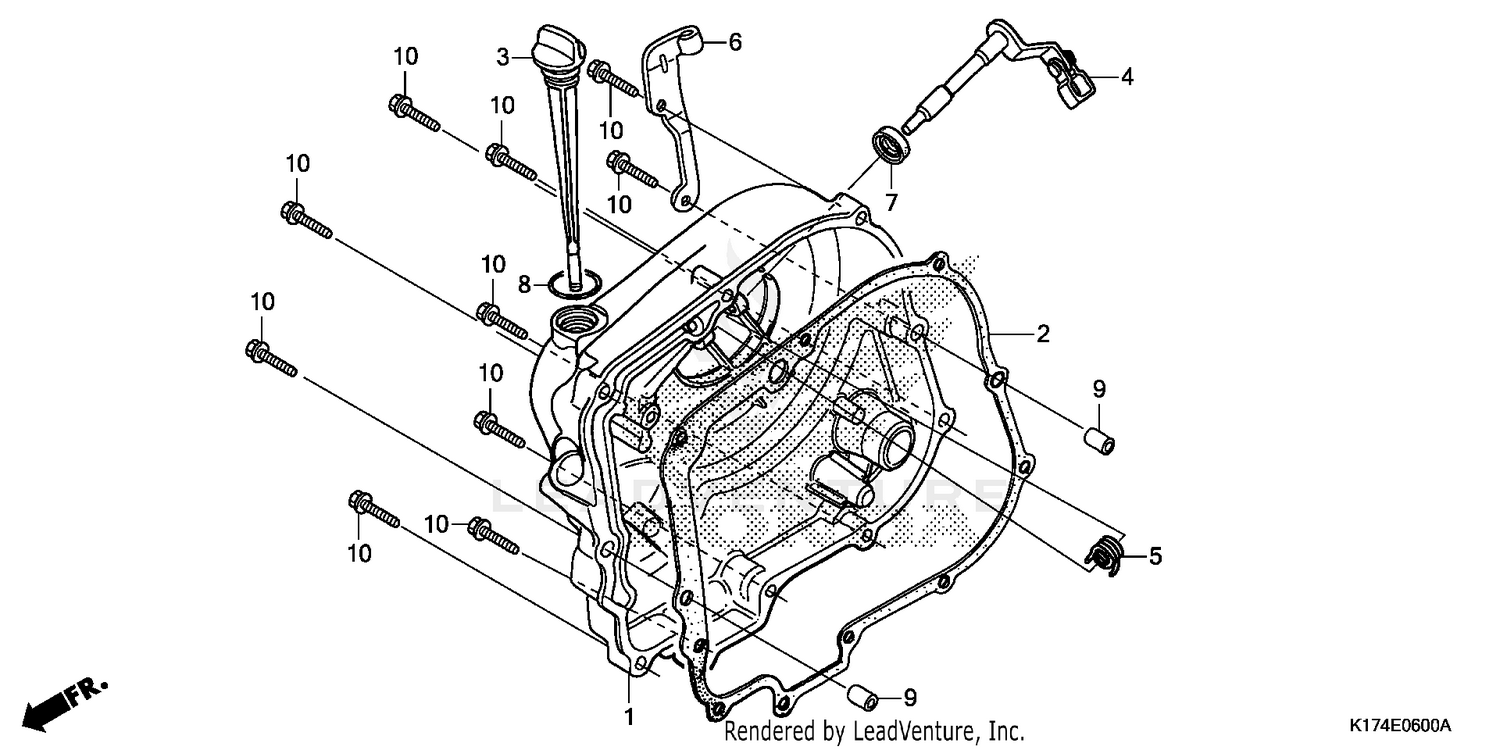

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-KR3-600
|
$277.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R.
11393-KBG-772
Superseded by 11393-KBG-773
|
$25.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-KB4-670
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, CLUTCH
22810-KR3-600
|
$54.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH LEVER
22815-KE1-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECEIVER, CLUTCH CABLE
22838-KR3-600
|
$27.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
