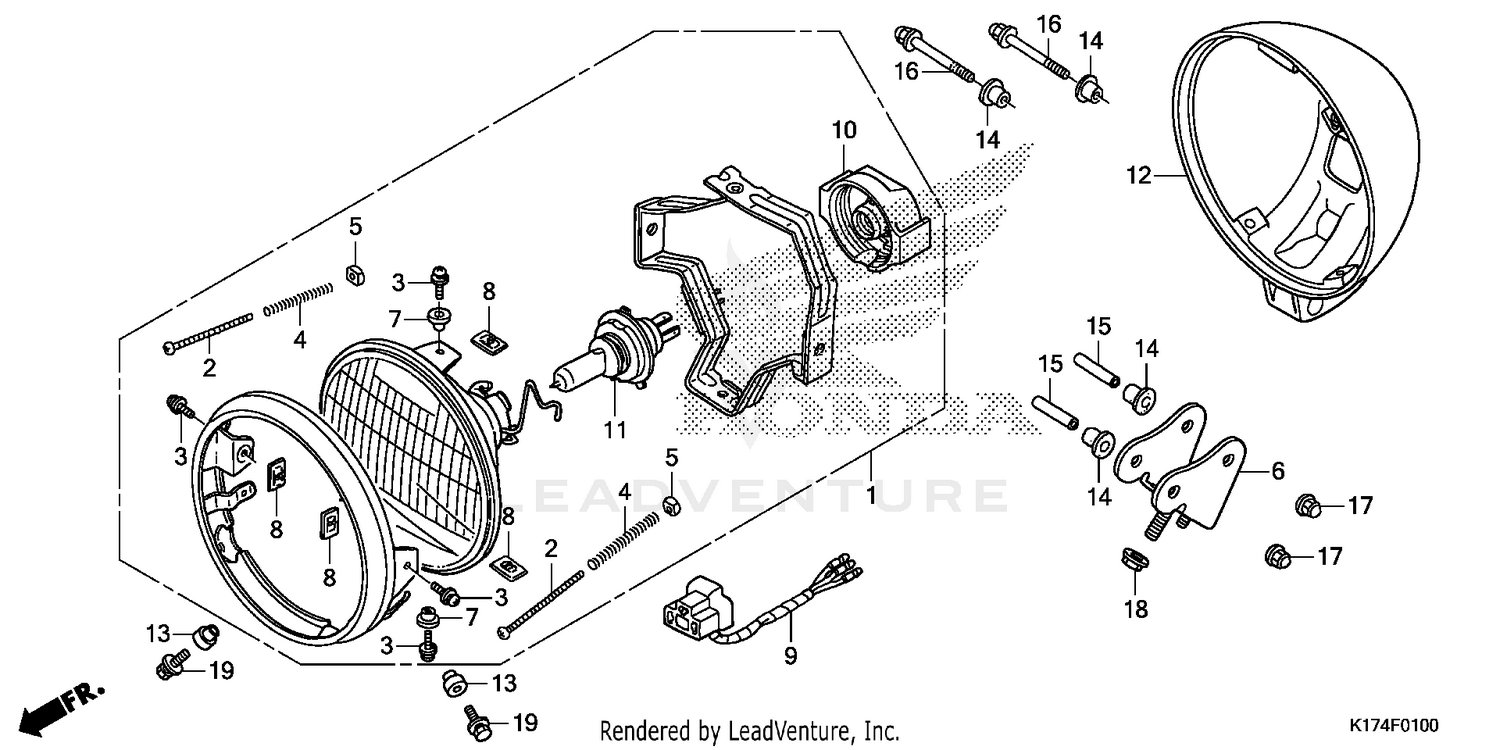

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 60/55W) (COO)
33100-MAA-305
|
$223.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, BEAM ADJUSTING
33114-GE1-670
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-WASHER
33104-MAH-671
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, BEAM ADJUSTING
33108-MM2-003
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, BEAM ADJUSTING
33118-438-841
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, HEADLIGHT
33124-KEN-A50
|
$63.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
33127-MAA-A31
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, UNIT HOLDER
33128-MAA-A31
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOCKET ASSY., HEADLIGHT
33130-KEN-A50
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RUBBER
33180-MR7-003
|
$17.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-602
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, HEADLIGHT
61301-MN0-003
|
$135.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, HEADLIGHT SETTING
61304-KR3-980
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, HEADLIGHT MOUNTING
61315-MZ5-000
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, HEADLIGHT STAY
61316-MK7-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP (6MM)
90132-MK7-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (6MM)
90202-ZV0-000
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT-WASHER (5X20)
93402-05020-00
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
