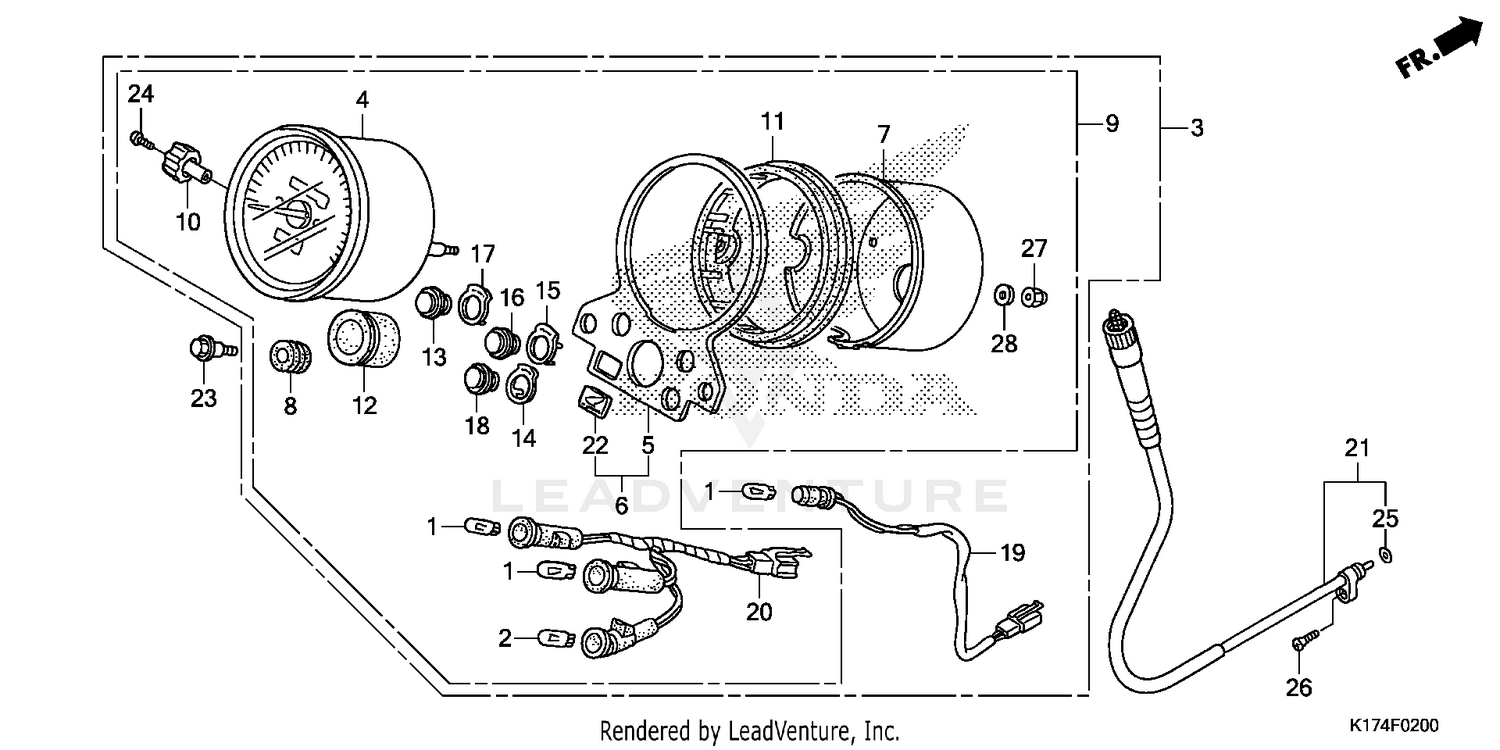

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#2
BULB, WEDGE BASE (T6.5) (12V 3W)
34908-KM1-671
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER ASSY. (MPH/KPH)
37200-KEN-A52
|
$483.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPEEDOMETER
37210-KEN-A51
|
$412.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET
37211-KEN-691
|
$55.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
37211-KR3-950
|
$64.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
37212-KR3-760
|
$102.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MOUNTING
37215-KR3-672
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
METER ASSY.
37220-KEN-A52
|
$456.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
KNOB, TRIP
37220-MA6-008
|
$15.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, RUBBER
37242-KR3-671
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET, COMBINATION SWITCH
37312-KR3-671
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS, HIGH BEAM PILOT (BLUE)
37551-GN0-711
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
PANEL, NEUTRAL
37555-KEB-901
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
PANEL, TURN SIGNAL PILOT
37556-KR3-671
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
LENS, TURN SIGNAL PILOT (ORANGE)
37561-KR3-671
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
PANEL, HIGH BEAM
37567-KEB-901
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
LENS, NEUTRAL PILOT (GREEN)
37571-KR3-671
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SOCKET
37619-KEN-A51
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
SOCKET, PILOT
37650-KEB-901
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE ASSY., SPEEDOMETER
44830-KR3-000
|
$37.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM, WING MARK
86150-MR1-760
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, METER SETTING
90104-KR3-670
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (2X6)
90158-KM7-911
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (6.8X1.9)
91301-027-000
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (6.8X1.9)
91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#25
O-RING (6.8X1.9)
91310-MC7-003
Superseded by 91306-PJ4-000
|
$3.78 | ||
|
Unavailable |
|||
|
#26
SCREW, OVAL (5X20)
93700-05020-0G
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CAP (5MM)
94021-05020-0S
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
