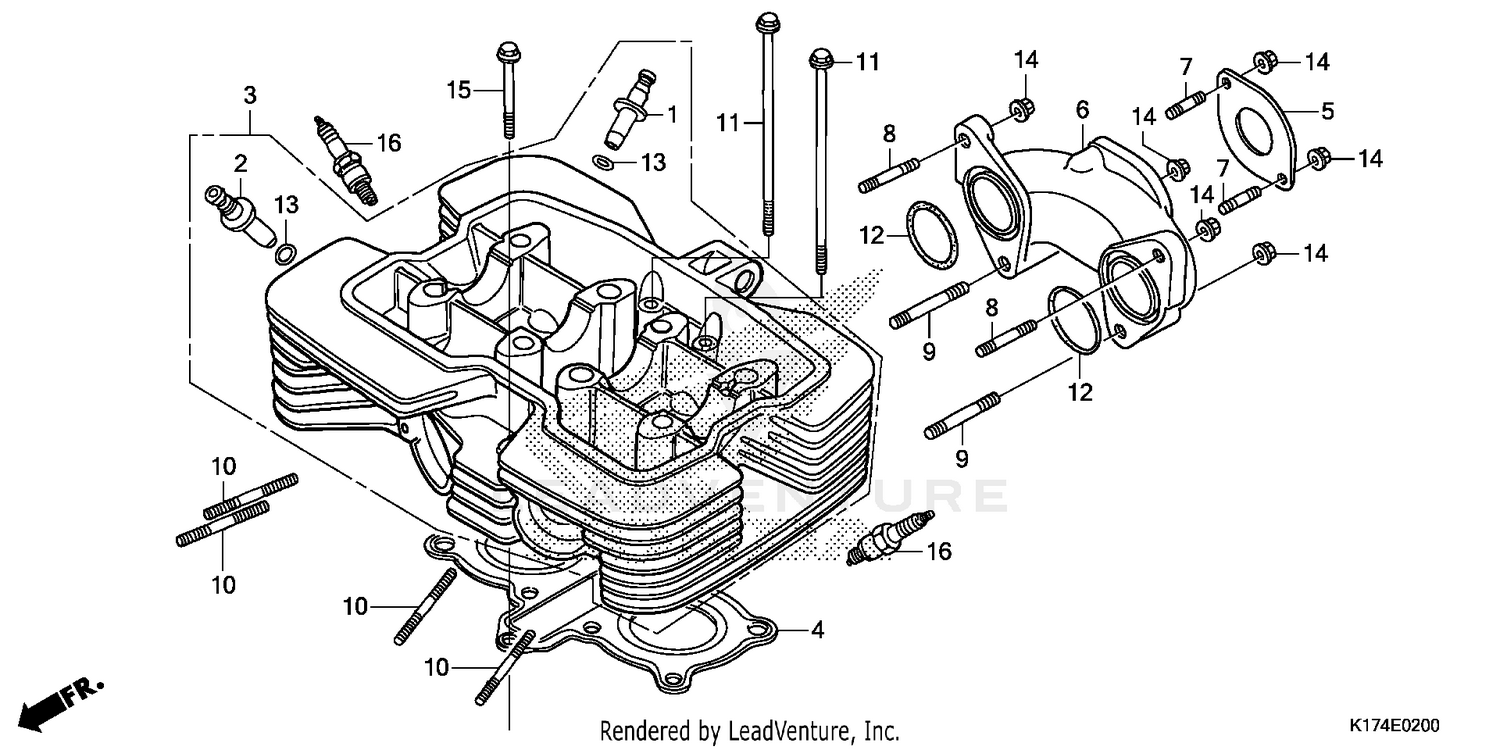

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE
12021-149-300
Superseded by 12021-149-405
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
GUIDE, VALVE
12021-149-405
|
$14.36 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12023-465-405
|
$22.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12023-465-830
Superseded by 12023-465-405
|
$22.91 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD
12200-KBG-671
|
$1,110.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KBG-671
|
$44.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
16229-KBG-771
Superseded by 16229-KBG-772
|
$11.69 | ||
|
Unavailable |
|||
|
#6
MANIFOLD, IN.
17111-KBG-670
|
$119.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD (6X16)
90033-KEN-620
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD (6X32)
90033-399-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (6X40)
90034-KBG-670
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD (6X29)
90036-KBG-670
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X145)
90048-KB4-670
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (25.5X2.5) (ARAI)
91301-KR3-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X65)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR5HSA) (NGK)
98056-55718
|
$2.91 | ||
|
Unavailable |
|||
|
#16
SPARK PLUG (U16FSR-U) (DENSO)
98056-55726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR6HSA) (NGK)
98056-56718
|
$2.91 | ||
|
Unavailable |
|||
|
#16
SPARK PLUG (U20FSR-U) (DENSO)
98056-56726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR7HSA) (NGK)
98056-57718
|
$2.91 | ||
|
Unavailable |
|||
|
#16
SPARK PLUG (U22FSR-U) (DENSO)
98056-57726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
