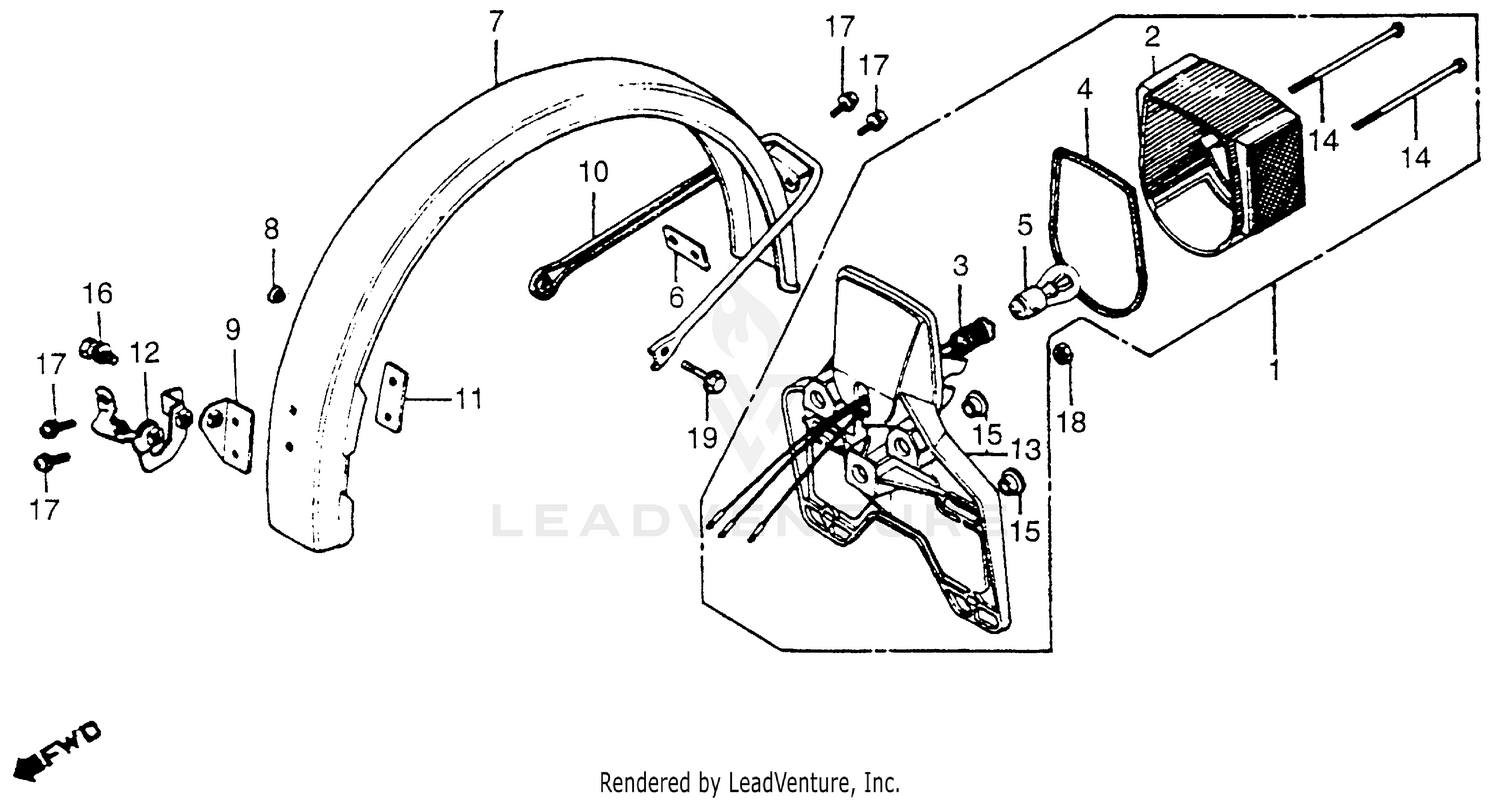

Taillight + Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY. (6V 32/3CP) (STANLEY) (NOT AVAILABLE)
33700-190-671
Superseded by 33700-147-671
|
$62.32 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT (STANLEY)
33702-147-671
|
$19.73 | ||
|
Unavailable |
|||
|
#3
WIRE, TAILLIGHT (STANLEY)
33705-147-671
|
$10.97 | ||
|
Unavailable |
|||
|
#4
GASKET, TAILLIGHT LENS
33709-074-671
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)
34906-329-671
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FENDER MOUNT (NOT AVAILABLE)
61106-147-670
|
$3.03 | ||
|
Unavailable |
|||
|
#7
PANEL, RR. *NH44MS*
80101-147-010ZM
Superseded by 80101-191-830ZA
|
$34.98 | ||
|
Unavailable |
|||
|
#7
PANEL, RR. FENDER *NH115MS* (ROCKY GRAY METALLIC SPECIAL) (NOT AVAILABLE)
80101-147-010ZN
|
$34.97 | ||
|
Unavailable |
|||
|
#8
PLUG, FENDER (NOT AVAILABLE)
80103-GA6-670
|
$1.32 | ||
|
Unavailable |
|||
|
#9
BRACKET, RR. FENDER (NOT AVAILABLE)
80104-GA6-670
|
$3.60 | ||
|
Unavailable |
|||
|
#10
STAY, RR. FENDER (NOT AVAILABLE)
80106-192-600
|
$15.39 | ||
|
Unavailable |
|||
|
#11
NUT, RR. FENDER PLATE (NOT AVAILABLE)
80107-147-000
|
$3.03 | ||
|
Unavailable |
|||
|
#12
STAY, RR. FENDER (NOT AVAILABLE)
80108-GA6-670
|
$16.29 | ||
|
Unavailable |
|||
|
#13
BRACKET, NUMBER PLATE (NOT AVAILABLE)
84701-190-671
Superseded by 84701-147-671
|
$50.66 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING (4X60)
90147-147-671
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X14) (NOT AVAILABLE)
90111-GC1-000
|
$1.94 | ||
|
Unavailable |
|||
|
#16
BOLT-WASHER (6X14) (NOT AVAILABLE)
93481-06014-00
Superseded by 90111-GC1-000
|
$1.94 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (5X10)
93892-05010-00
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
