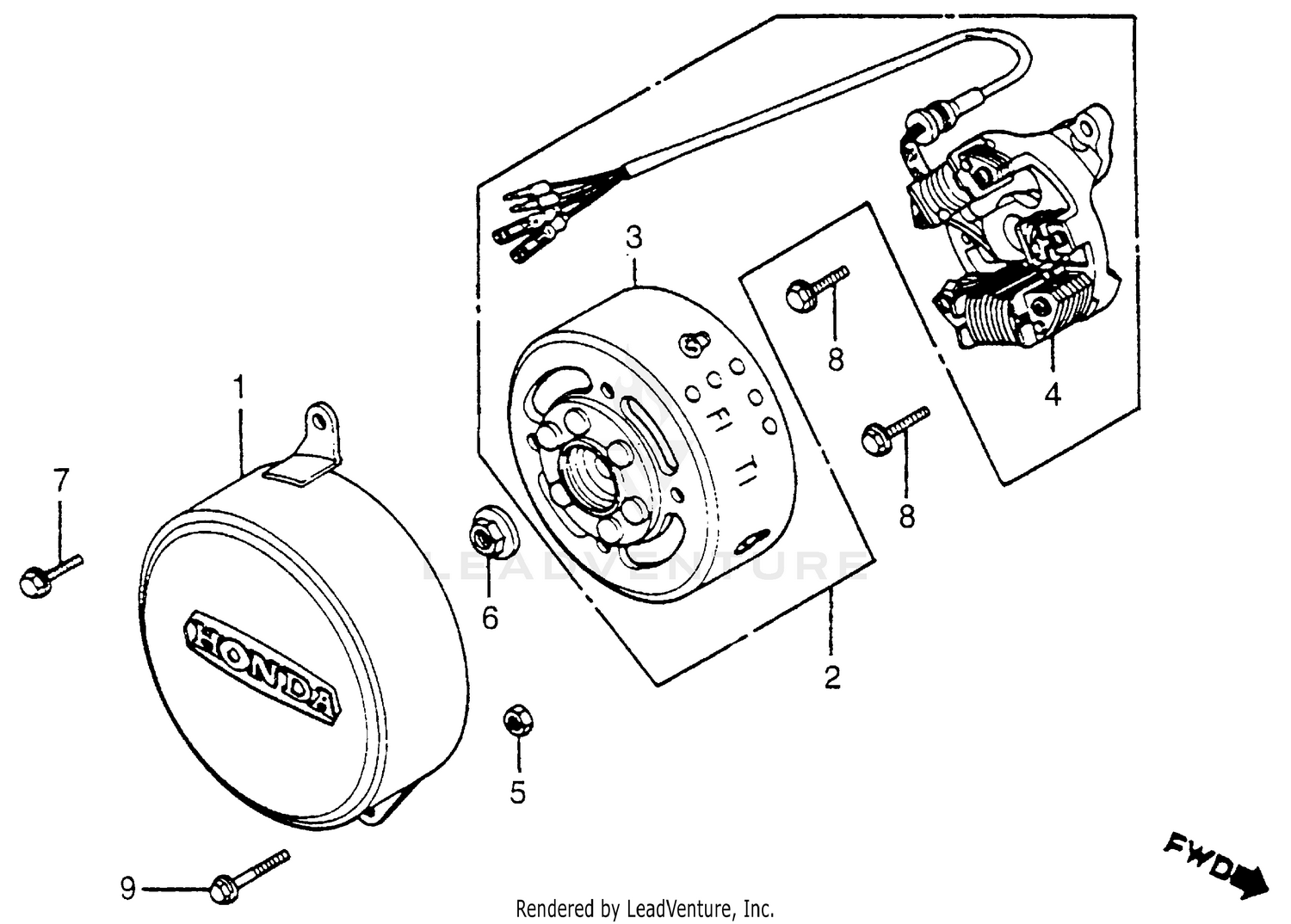

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, ALTERNATOR (NOT AVAILABLE)
11431-190-000
|
$29.30 | ||
|
Unavailable |
|||
|
#2
ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA)
31100-GA6-671
|
$156.45 | ||
|
Unavailable |
|||
|
#3
FLYWHEEL (MITSUBA) (NOT AVAILABLE)
31110-GA6-671
|
$108.04 | ||
|
Unavailable |
|||
|
#4
STATOR (MITSUBA) (NOT AVAILABLE)
31120-GA6-671
|
$89.28 | ||
|
Unavailable |
|||
|
#5
NUT, SPECIAL (6MM)
90205-147-000
|
$1.47 | ||
|
Unavailable |
|||
|
#6
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6X20)
96000-06020-00
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
