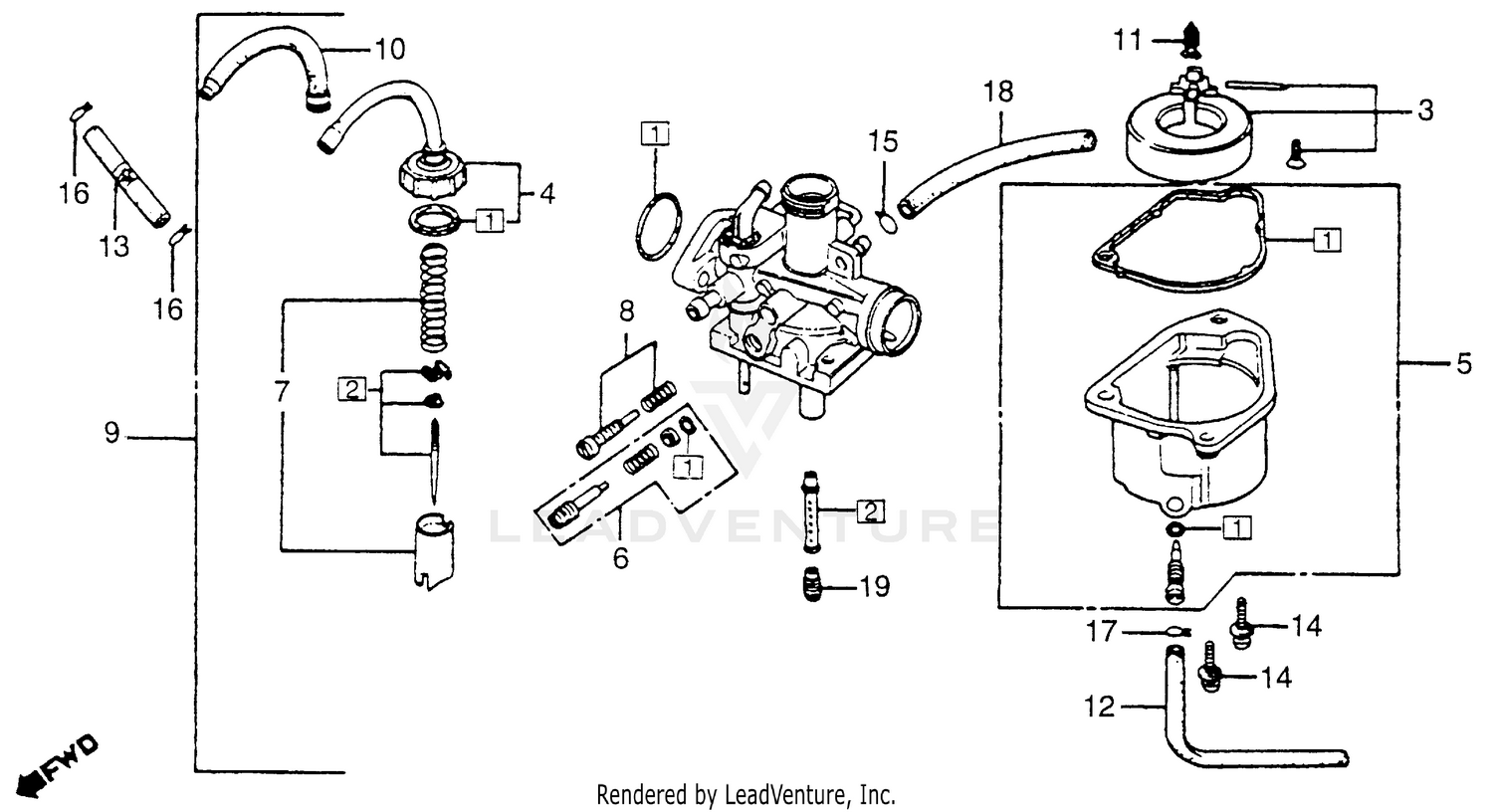

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-190-004
|
$17.92 | ||
|
Unavailable |
|||
|
#2
NEEDLE SET, JET (NOT AVAILABLE)
16012-GA6-671
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-147-004
|
$54.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP SET (NOT AVAILABLE)
16014-187-013
|
$18.94 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-GA6-671
|
$50.10 | ||
|
Unavailable |
|||
|
#6
SCREW SET A (NOT AVAILABLE)
16016-191-004
|
$12.16 | ||
|
Unavailable |
|||
|
#7
VALVE SET, THROTTLE (NOT AVAILABLE)
16022-191-004
|
$34.88 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-GC8-004
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B
16028-187-003
Superseded by 16028-GC8-004
|
$19.82 | ||
|
Unavailable |
|||
|
#9
CARBURETOR ASSY. (NOT AVAILABLE)
16100-GA6-671
|
$136.32 | ||
|
Unavailable |
|||
|
#10
CAP, CABLE (NOT AVAILABLE)
16118-187-003
|
$7.10 | ||
|
Unavailable |
|||
|
#11
VALVE, FLOAT
16155-883-005
|
$24.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
TUBE, RUBBER
16199-435-771
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE 4, CONTROL VALVE (NOT AVAILABLE)
16608-GA6-670
|
$1.60 | ||
|
Unavailable |
|||
|
#14
SCREW-WASHER (4X12)
93892-04012-08
|
$0.67 | ||
|
Unavailable |
|||
|
#15
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, VACUUM (3.5X1000) (3.5X130)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
JET, MAIN (#75)
99101-187-0750
|
$8.55 | ||
|
Unavailable |
|||
