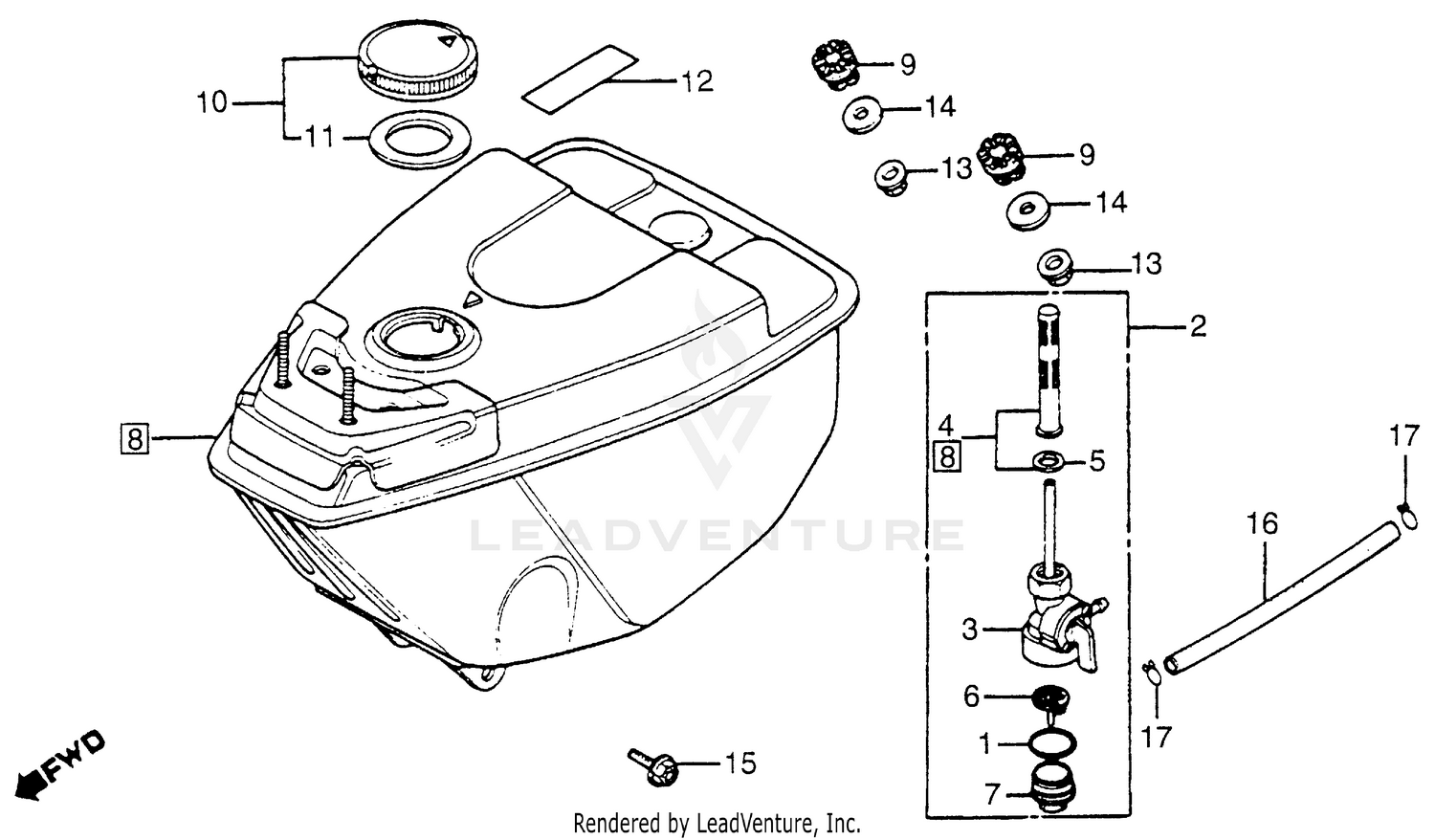

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)
16080-898-631
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, FUEL STRAINER CUP
16173-001-004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16955-283-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (2.4X18.6)
16958-011-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#1
O-RING (2.4X18.6)
16958-028-000
Superseded by 16075-GHB-B00
|
$5.87 | ||
|
Unavailable |
|||
|
#2
PETCOCK ASSY. (NOT AVAILABLE)
16950-GA6-671
|
$51.73 | ||
|
Unavailable |
|||
|
#3
BODY, PETCOCK (NOT AVAILABLE)
16951-GA6-671
|
$38.40 | ||
|
Unavailable |
|||
|
#4
SCREEN SET, FUEL STRAINER
16952-GA6-671
|
$31.95 | ||
|
Unavailable |
|||
|
#5
O-RING (9X1.3)
16958-397-771
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER, CUP
16959-471-831
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUP, FUEL STRAINER
16967-GA6-671
|
$28.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TANK SET *B-6M*
175A1-GA6-670ZA
Superseded by 175A1-GA6-605ZA
|
$115.63 | ||
|
Unavailable |
|||
|
#8
TANK SE*NH-44M-S*
175A1-GA6-670ZC
Superseded by 175A1-GA6-605ZC
|
$159.51 | ||
|
Unavailable |
|||
|
#9
RUBBER, TANK MOUNTING (NOT AVAILABLE)
17523-GA6-670
|
$3.22 | ||
|
Unavailable |
|||
|
#10
CAP, FUEL FILLER
17620-GA7-013
Superseded by 17620-459-750
|
$22.25 | ||
|
Unavailable |
|||
|
#10
CAP, FUEL FILLER
17620-459-750
|
$22.25 | ||
|
Unavailable |
|||
|
#11
GASKET
17631-096-700
Superseded by 17631-096-702
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET
17631-096-701
Superseded by 17631-096-702
|
$2.96 | ||
|
Unavailable |
|||
|
#12
LABEL, FUEL *NH1* (BLACK) (NOT AVAILABLE)
87512-147-670ZA
|
$1.61 | ||
|
Unavailable |
|||
|
#13
NUT, FLANGE (8MM)
90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (10X25) (NOT AVAILABLE)
93483-10025-00
|
$0.99 | ||
|
Unavailable |
|||
|
#16
BULK HOSE, FUEL (4.5X3000) (4.5X190)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
