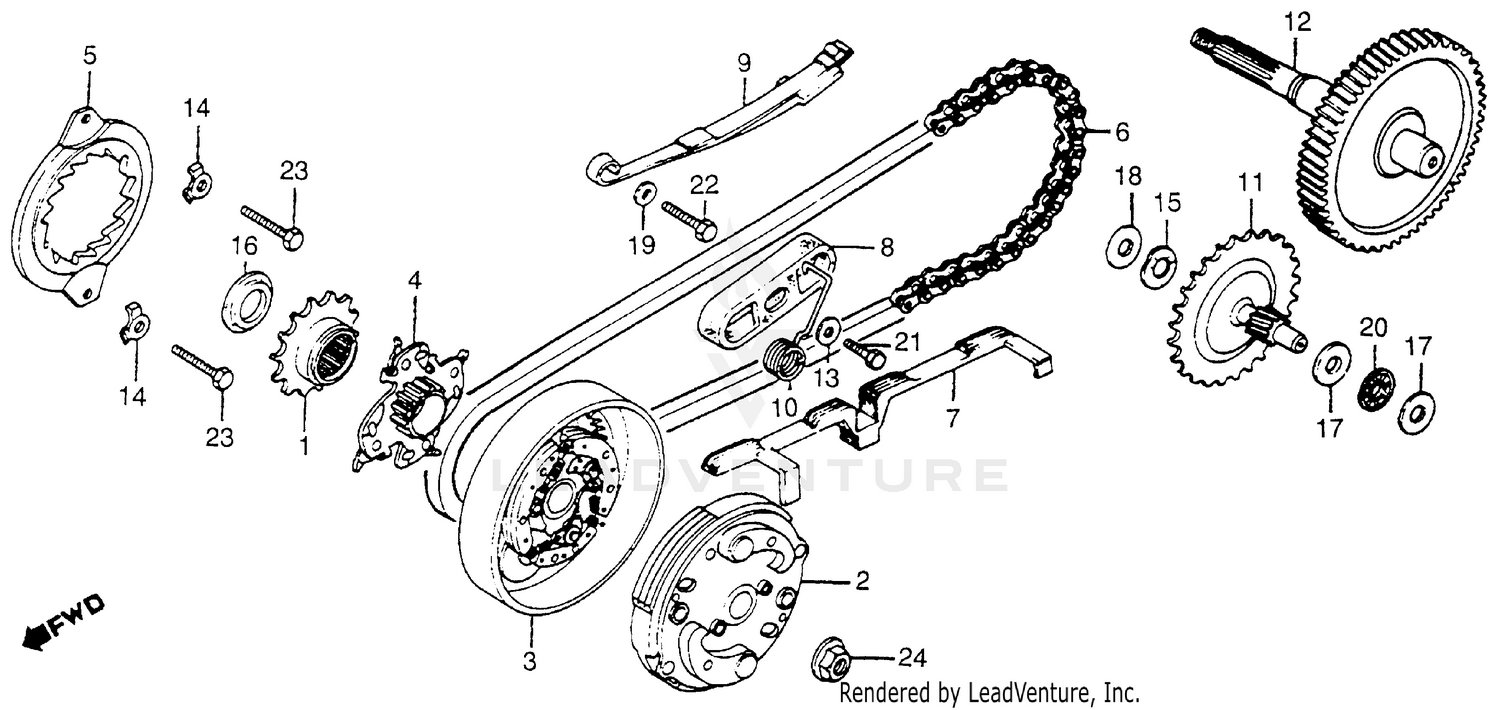

Clutch Drive Chain Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, DRIVE (NOT AVAILABLE)
22102-191-000
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE ASSY., DRIVE (NOT AVAILABLE)
22300-191-020
|
$86.99 | ||
|
Unavailable |
|||
|
#3
CLUTCH ASSY., SECOND (NOT AVAILABLE)
22600-191-000
|
$119.34 | ||
|
Unavailable |
|||
|
#4
PLATE, SUN GEAR (NOT AVAILABLE)
22650-191-000
|
$48.06 | ||
|
Unavailable |
|||
|
#5
PLATE, RATCHET (NOT AVAILABLE)
22671-191-000
|
$36.97 | ||
|
Unavailable |
|||
|
#6
CHAIN, DRIVE (270H-80L) (DID)
23100-147-003
|
$63.54 | ||
|
Unavailable |
|||
|
#6
CHAIN, DRIVE (270H-80L) (DID)
23100-190-003
Superseded by 23100-147-003
|
$63.54 | ||
|
Unavailable |
|||
|
#7
GUIDE A, DRIVE CHAIN
23110-147-000
|
$17.55 | ||
|
Unavailable |
|||
|
#8
GUIDE B, DRIVE CHAIN (NOT AVAILABLE)
23120-147-010
|
$4.65 | ||
|
Unavailable |
|||
|
#9
TENSIONER, DRIVE CHAIN
23130-147-020
|
$18.75 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSIONER (NOT AVAILABLE)
23145-147-000
|
$2.39 | ||
|
Unavailable |
|||
|
#11
SPROCKET, DRIVEN (NOT AVAILABLE)
23200-191-000
|
$97.68 | ||
|
Unavailable |
|||
|
#12
GEAR, FINAL (NOT AVAILABLE)
23220-190-010
|
$116.67 | ||
|
Unavailable |
|||
|
#13
WASHER, SPECIAL (6MM)
90438-671-000
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK (6MM)
90439-PH8-000
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK (6MM)
90439-634-000
Superseded by 90439-PH8-000
|
$4.95 | ||
|
Unavailable |
|||
|
#14
WASHER, LOCK (6MM)
90439-634-010
Superseded by 90439-PH8-000
|
$4.95 | ||
|
Unavailable |
|||
|
#15
WASHER, WAVE (12MM)
90444-190-000
|
$1.58 | ||
|
Unavailable |
|||
|
#16
WASHER, THRUST (15MM) (NOT AVAILABLE)
90445-191-000
|
$4.49 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (12MM) (TOYO)
90452-147-003
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (12MM) (TOMUSON)
90452-147-006
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (12MM) (NOT AVAILABLE)
90453-147-000
|
$1.50 | ||
|
Unavailable |
|||
|
#19
WASHER (6X16)
90473-147-000
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM) (TOMUSON)
91001-147-006
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X25)
92222-06025
Superseded by 92225-06025-0A
|
$0.62 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X25)
92222-06025-0A
Superseded by 92225-06025-0A
|
$0.62 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X25)
92225-06025-0A
|
$0.62 | ||
|
Unavailable |
|||
|
#24
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
