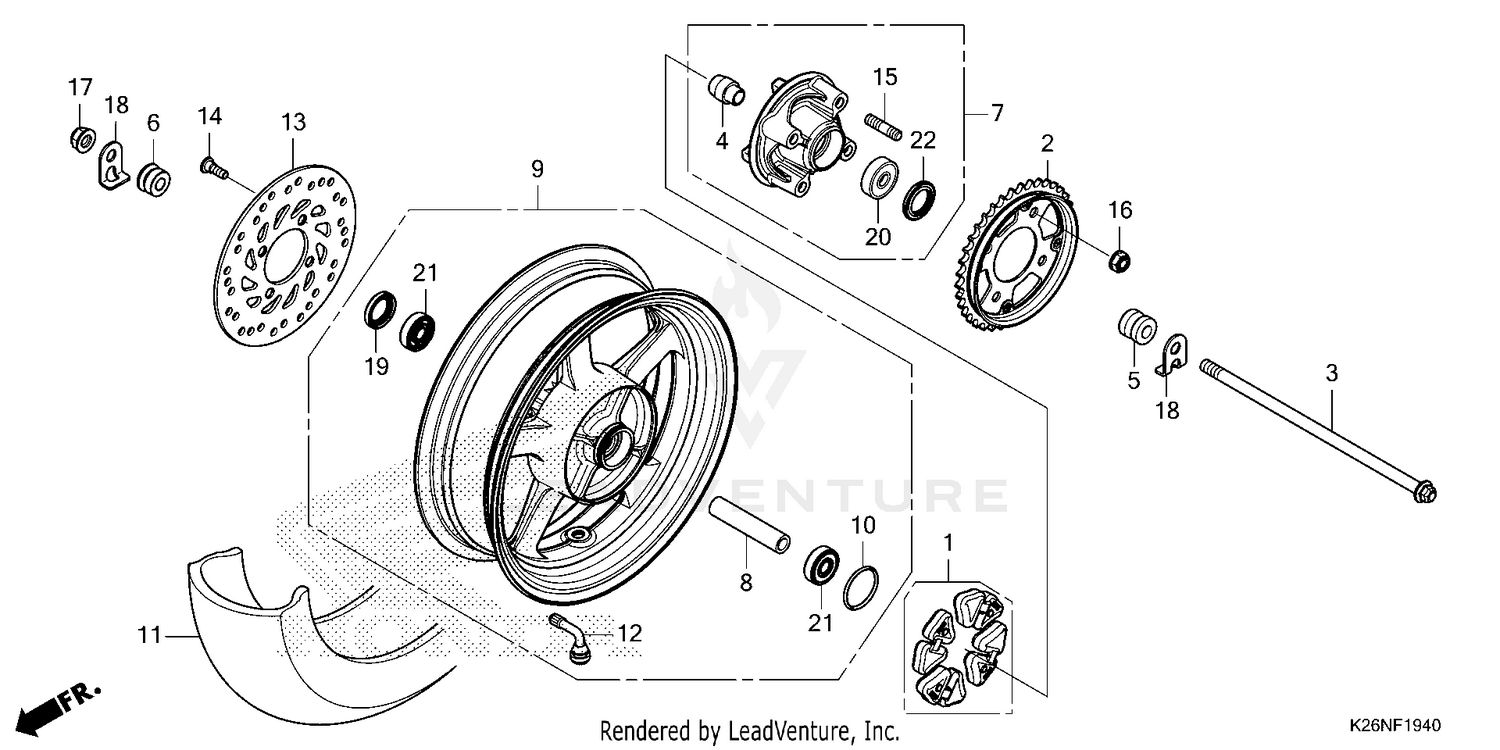

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-KWB-600
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (38T)
41200-K26-G01
|
$28.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-K26-G00
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE, RR. WHEEL
42303-KWB-600
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. RR. WHEEL SIDE
42311-K26-900
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. RR. WHEEL SIDE
42312-K26-G00
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLANGE SUB-ASSY., FINAL DRIVEN
42615-K26-G70
|
$120.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. AXLE DISTANCE
42620-K26-900
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. *YR112MU* (SUPER GOLD METALLIC-U)
42650-K26-G00ZA
|
$244.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (40.5X3) (NIPPON DUST KEEPER)
42653-001-004
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR.
42711-K26-B03
Superseded by 42711-K26-B06
|
$61.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR.
42711-K26-B04
Superseded by 42711-K26-B06
|
$61.26 | ||
|
Unavailable |
|||
|
#11
TIRE, RR.
42711-K26-B06
|
$61.26 | ||
|
Unavailable |
|||
|
#12
VALVE, RIM (DUNLOP) (NOT AVAILABLE)
42753-KJ9-004
|
$19.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, RR. BRAKE
43251-K26-G01
|
$56.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BRAKE DISK (8X24)
90105-KGH-900
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (10X22)
90128-K26-G00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (10MM)
90304-KGH-901
|
$3.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U (12MM) (FUJI SEIMITSU)
90306-KGH-901
|
$2.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, RR. AXLE
90559-K26-G00
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (26X37X6) (ARAI)
90753-051-003
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
91051-K35-V02
Superseded by 91051-K35-V03
|
$23.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
91051-K35-V03
|
$23.95 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6301U L) (FAG)
91053-K03-H01
Superseded by 91053-K03-H02
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6301U L) (FAG)
91053-K03-H02
|
$9.05 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (27X40X4.5) (NOK)
91251-KGH-902
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
