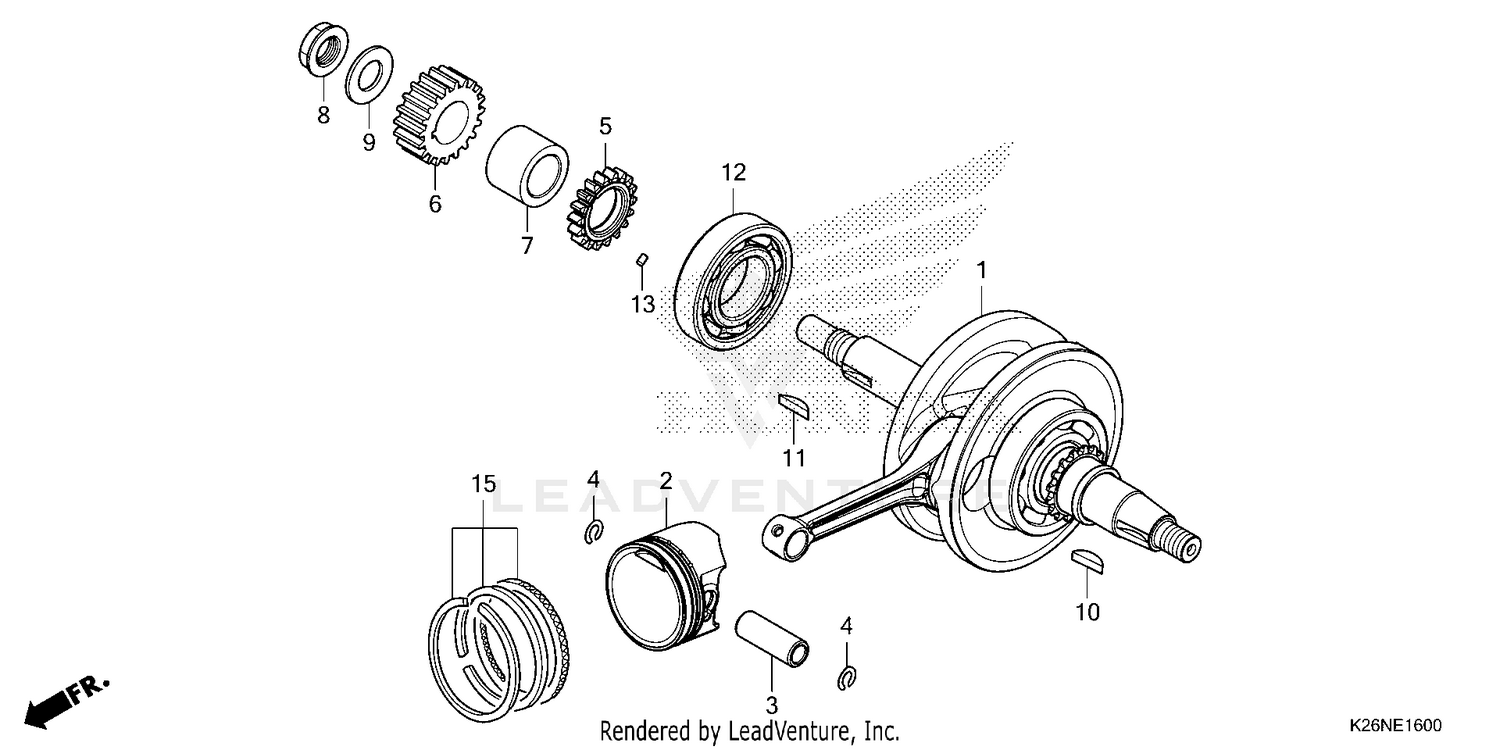

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-K26-G00
|
$255.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (STD)
13101-K26-G00
|
$30.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
13111-K0J-N00
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, PISTON PIN (12MM)
13115-K1M-T00
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, OIL PUMP DRIVE (18T)
15341-K1M-T01
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR A, PRIMARY DRIVE (25T)
23121-K26-G00
|
$51.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR B, PRIMARY DRIVE (25T)
23122-K26-G00
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR C, PRIMARY DRIVE (25T)
23123-K26-G00
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR D, PRIMARY DRIVE (25T)
23124-K26-G00
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, PRIMARY DRIVE GEAR
23125-K26-G00
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPECIAL FLANGE (14MM)
90202-KRM-840
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (14.2X26X3)
90432-KPT-A00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90701-HB6-000
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90741-003-010
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#11
KEY, WOODRUFF (4MM)
90741-KGH-900
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, R. RADIAL BALL SPECIAL (62/28) (NTN)
91001-K1M-T02
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (3X5)
94303-03050
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING SET, PISTON (STD) (TPR)
13011-K1J-D00
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
