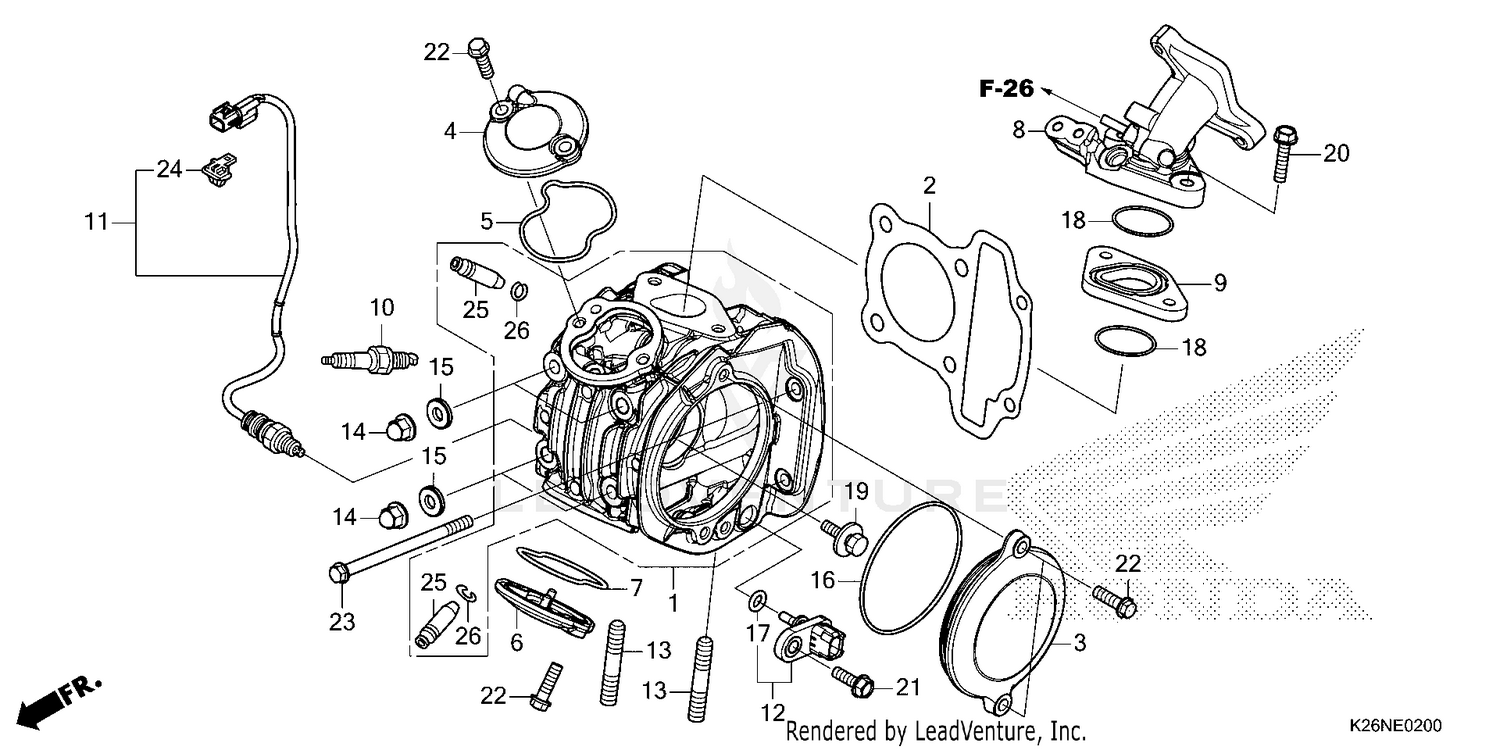

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-K26-G00
|
$174.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER HEAD
12251-K26-G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, L. CYLINDER HEAD SIDE
12341-K26-G00
|
$37.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, IN. TAPPET HOLE
12361-K26-G00
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, IN. TAPPET HOLE COVER
12365-K1M-T00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, EX. TAPPET HOLE
12371-K26-G00
|
$22.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EX. TAPPET HOLE COVER
12375-K1M-T00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, INLET
17110-K26-G10
|
$115.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
INSULATOR, IN. PIPE
17119-K26-G00
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPARK PLUG (CPR7EA-9S) (NGK)
31917-KWB-601
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, OXYGEN
36532-K26-G01
|
$50.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., OIL TEMPERATURE (MITSUBISHI)
37750-K0J-N21
|
$34.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (8X32)
90004-K1M-T00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT 2, STUD (8X32)
92900-08032-0E
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CAP (7MM)
90201-K1M-T00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER A, SEALING
90443-GGN-J00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (74.5X2.5) (NOK)
91301-PH8-005
|
$12.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
91304-K0J-N21
|
$28.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (31.5X2.4)
91304-K1M-T00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X12)
93404-06012-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X95) (NOT AVAILABLE)
96001-06095-00
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CONNECTOR
91565-S3Y-003
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, VALVE (OVER SIZE)
12204-K0J-P00
|
$53.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, VALVE GUIDE
12206-K0J-N00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
