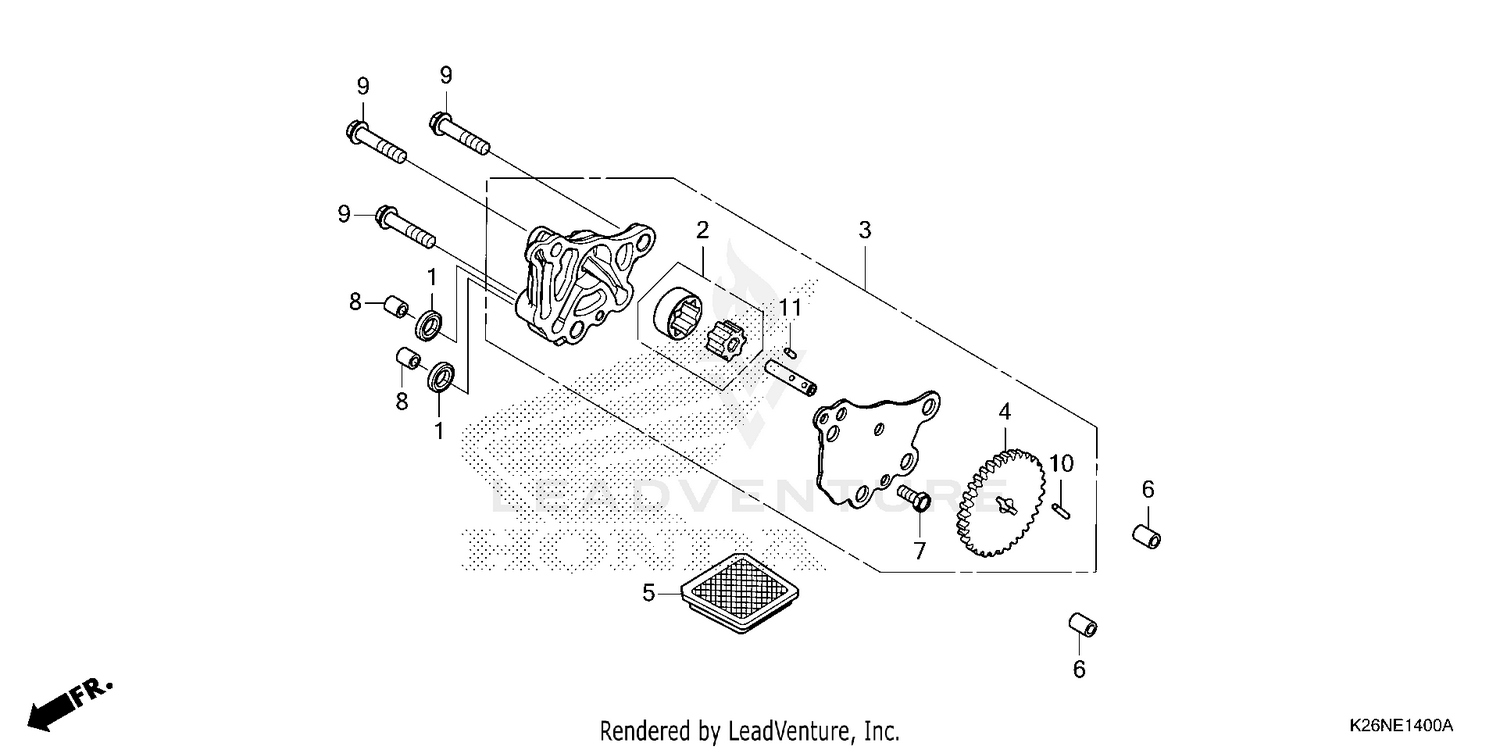

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET B, HEAD COVER
12396-KRM-840
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR SET, OIL PUMP
15021-K1M-T00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL PUMP ASSY.
15100-K26-G00
|
$20.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, OIL PUMP DRIVEN (25T)
15133-K1M-T00
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN, OIL FILTER
15421-KSP-910
|
$4.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN, DOWEL (8X12)
90702-KFM-900
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. (5X12)
93301-05012-0J
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER (2.5X13.5)
96220-25135
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER (2.5X8.5)
96220-25085
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
