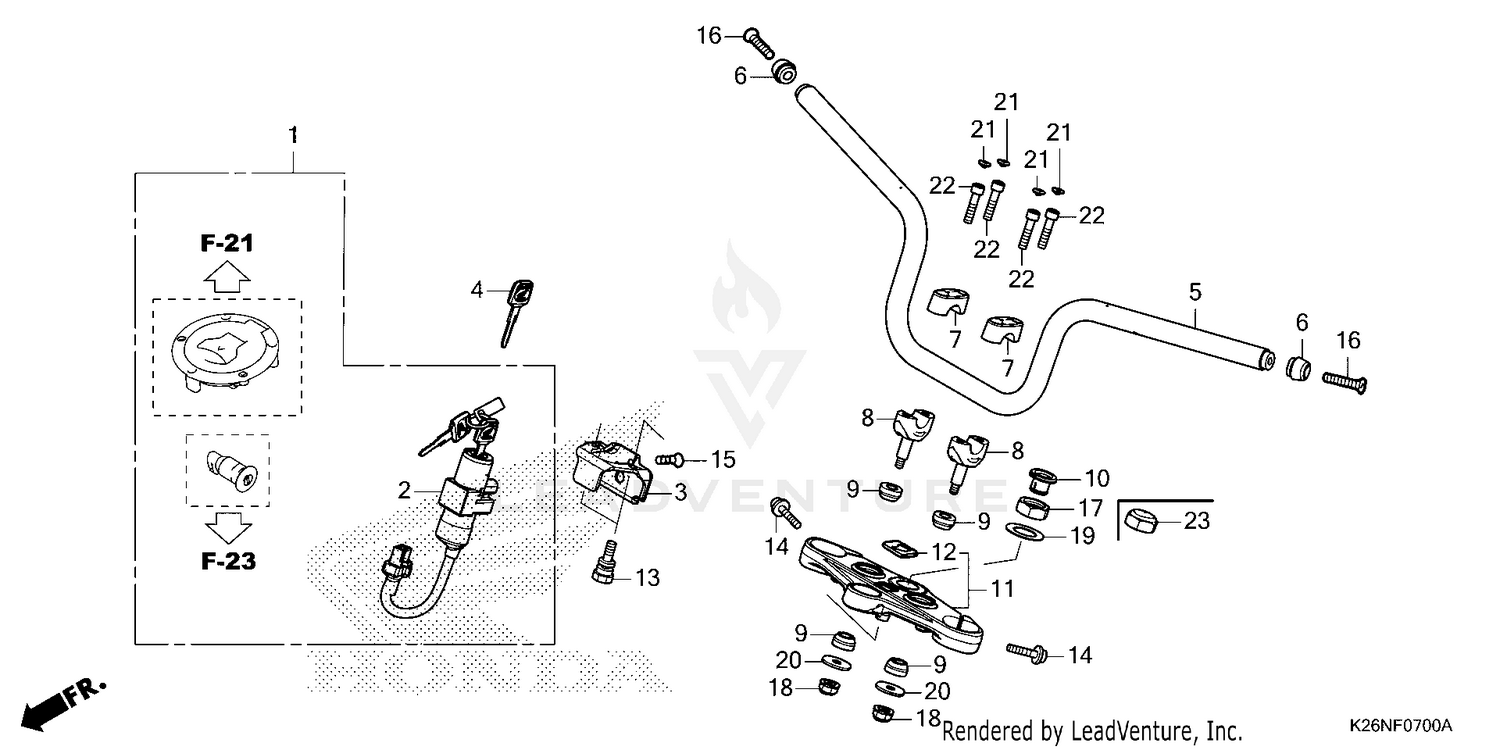

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK SET
35010-K26-G11
|
$189.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK
35100-K26-G11
|
$74.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, COMBINATION SWITCH
35105-K26-900
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK
35122-K26-B00
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
HANDLEBAR
53100-K26-G00
|
$28.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT A, HANDLE
53102-K26-900
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, HANDLEBAR (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
53131-K20-900ZE
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, HANDLE (LOWER)
53132-K26-G00
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, HANDLE CUSHION
53133-K26-900
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, STEERING NUT
53232-K26-G00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRIDGE, FORK TOP
53300-K26-G00
|
$64.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM, PRODUCT (MARUI)
86150-KPG-901
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BREAK OFF
90107-K20-T20
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE SOCKET (8X32)
90160-K26-900
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, U-LOCK FLAT (6X12)
90164-KZL-A00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, OVAL (6X45)
90191-KWB-600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, STEERING STEM
90304-K26-C20
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (8MM)
90304-KPG-901
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, STEERING STEM
90503-K26-C20
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, HANDLE HOLDER (LOWER)
90535-K26-900
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, SOCKET BOLT
91456-371-770
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X35)
96700-08035-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
