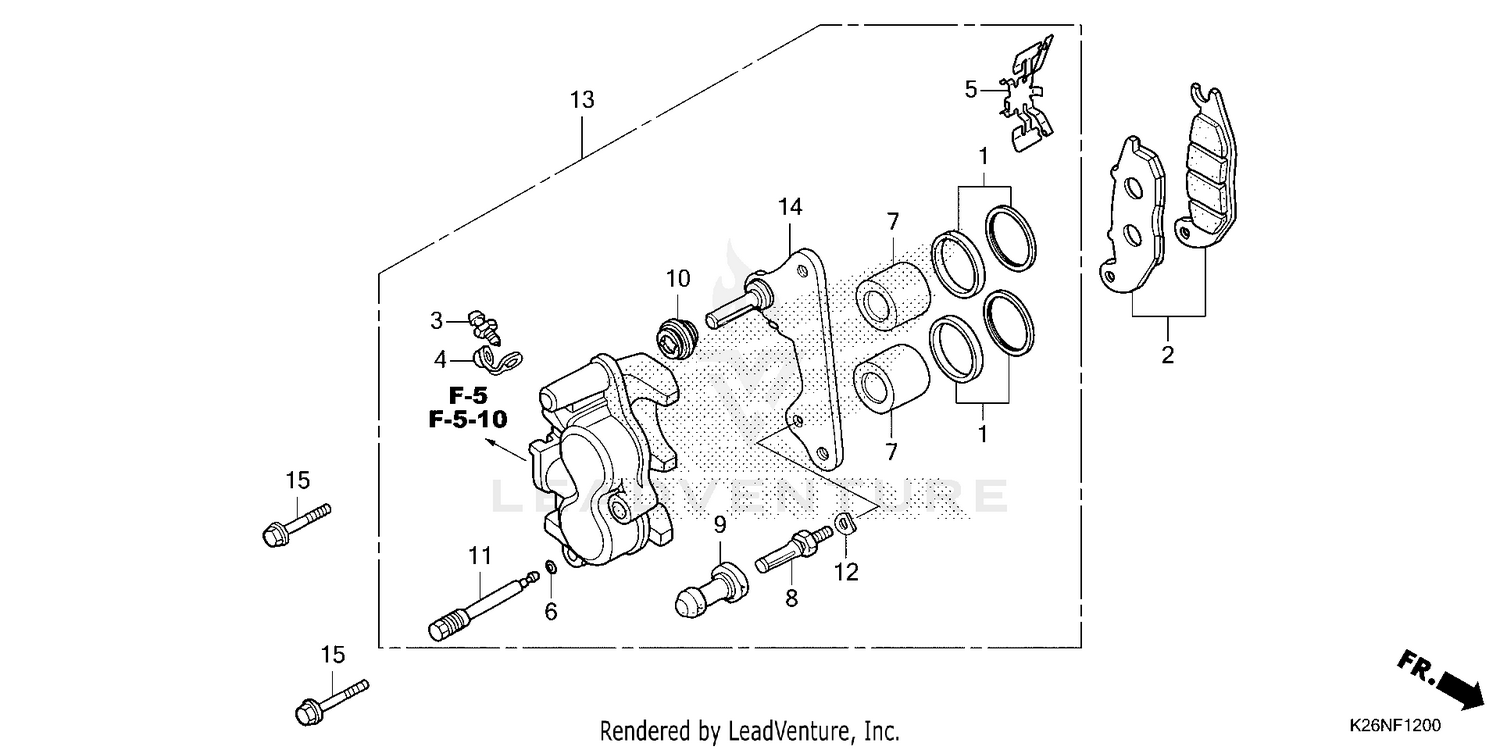

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)
06451-GE2-405
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-KPP-902
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, PAD
45108-KPH-951
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PISTON A (25X27)
45117-MAJ-G41
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, PIN
45131-GZ0-006
|
$10.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, HANGER
45215-KPH-951
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, WAVE (NISSIN)
45216-166-006
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., R. FR. (NISSIN)
45250-K26-C21
|
$114.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET SUB-ASSY., FR. CALIPER
45290-K26-C11
|
$45.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X25)
90131-KGH-900
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
