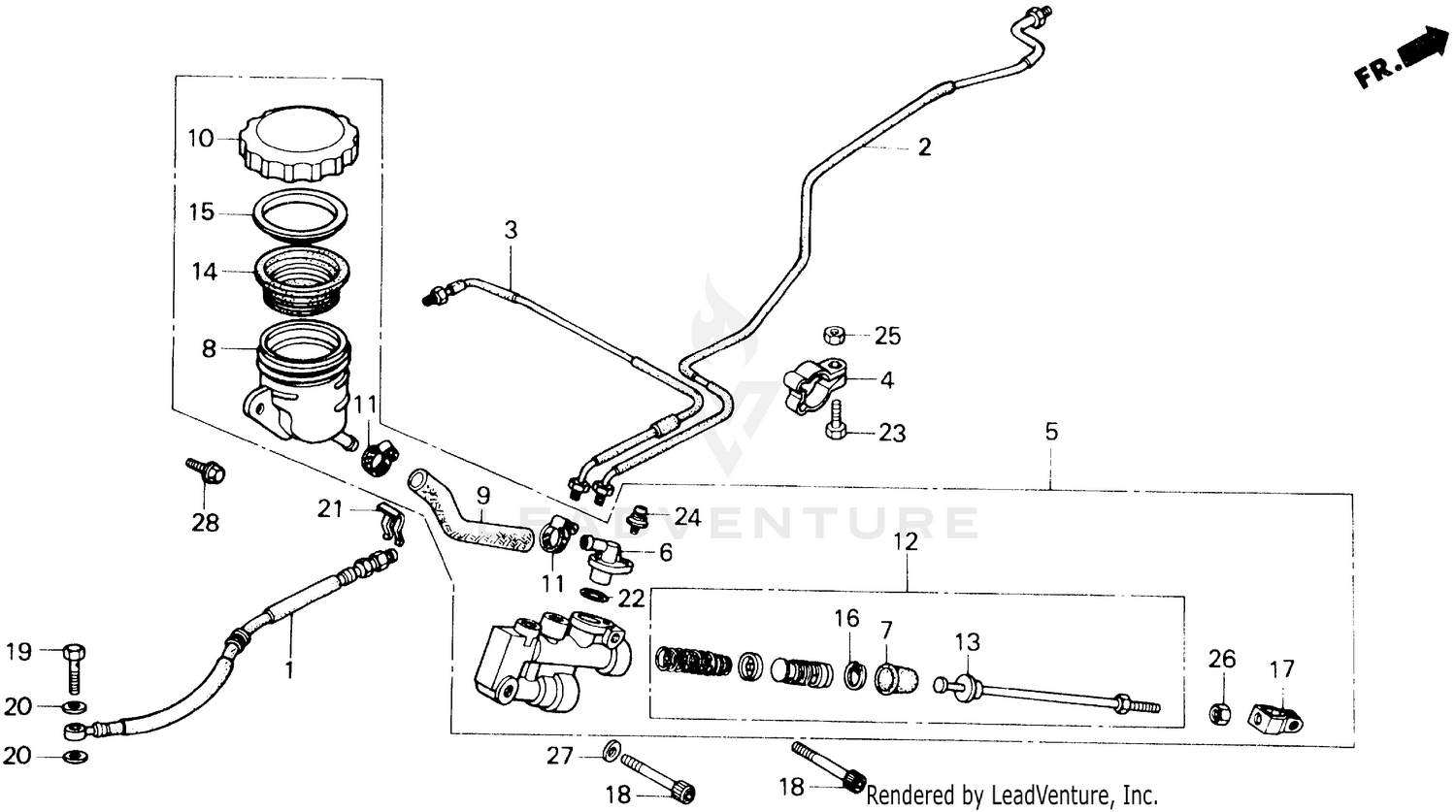

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE (NOT AVAILABLE)
43310-ML8-671
|
$43.75 | ||
|
Unavailable |
|||
|
#2
PIPE A, RR. MASTER CYLINDER (NOT AVAILABLE)
43311-MG9-010
|
$24.64 | ||
|
Unavailable |
|||
|
#3
PIPE B, RR. BRAKE CALIPER (NOT AVAILABLE)
43312-MG9-000
|
$9.87 | ||
|
Unavailable |
|||
|
#4
BAND, BRAKE PIPE (NOT AVAILABLE)
43320-MG9-000
|
$4.67 | ||
|
Unavailable |
|||
|
#5
MASTER CYLINDER ASSY., RR. BRAKE (NA USE ALT:43510-MG9-P10)
43500-MG9-006
|
$225.15 | ||
|
Unavailable |
|||
|
#6
CONNECTOR
43503-MG9-006
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUP, MASTER CYLINDER OIL
43511-MA6-006
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, MASTER CYLINDER (NOT AVAILABLE)
43512-MG9-000
|
$11.50 | ||
|
Unavailable |
|||
|
#10
CAP, OIL CUP
43513-MB4-672
|
$26.61 | ||
|
Unavailable |
|||
|
#11
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MG9-305
|
$81.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, PUSH (NOT AVAILABLE)
43530-MG9-006
|
$20.85 | ||
|
Unavailable |
|||
|
#14
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD (NOT AVAILABLE)
46504-445-771
|
$9.55 | ||
|
Unavailable |
|||
|
#18
BOLT, SOCKET (8X48) (NOT AVAILABLE)
90106-438-000
|
$6.28 | ||
|
Unavailable |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#19
BOLT, OIL (10X22)
90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, BRAKE HOSE
90651-538-000
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.40 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
