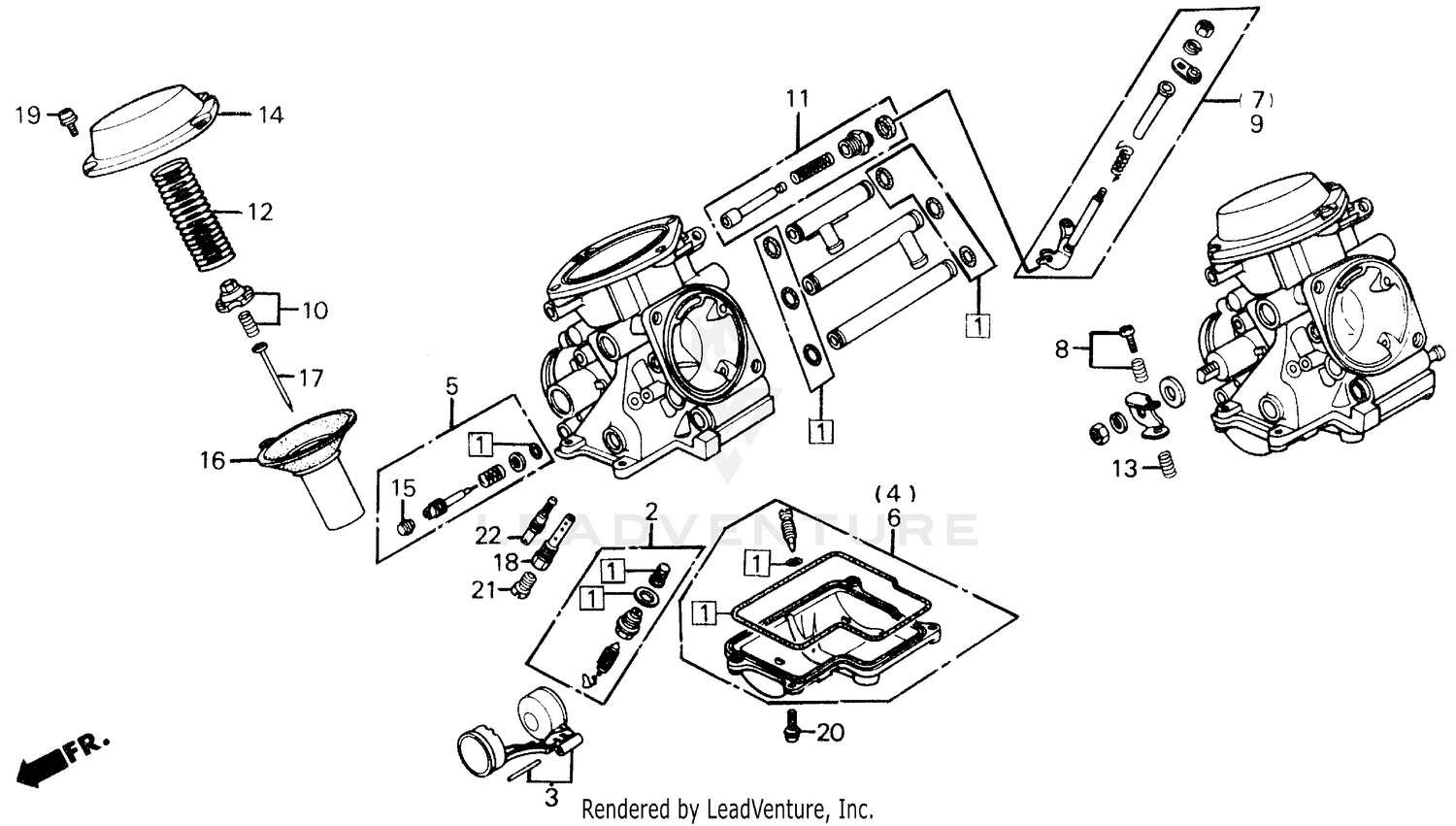

Carburetor (components) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MG9-014
Superseded by 16010-MG9-691
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-MG9-691
|
$18.69 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-MB1-671
|
$92.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-ML8-741
Superseded by 16011-MB1-671
|
$92.69 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-MB0-671
|
$66.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-MG9-014
Superseded by 16015-MBL-731
|
$176.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-MG9-691
Superseded by 16015-MBL-731
|
$176.80 | ||
|
Unavailable |
|||
|
#4
CHAMBER SET, FLOAT
16015-MR6-671
Superseded by 16015-MBL-731
|
$176.80 | ||
|
Unavailable |
|||
|
#5
SCREW SET A (NOT AVAILABLE)
16016-KJ9-671
|
$18.01 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16023-MG9-014
Superseded by 16023-MG9-691
|
$92.73 | ||
|
Unavailable |
|||
|
#7
LINK A SET, STARTER (NOT AVAILABLE)
16025-MG9-004
|
$50.81 | ||
|
Unavailable |
|||
|
#8
SCREW SET
16029-KE8-004
Superseded by 16029-KEJ-900
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK B SET, STARTER (NOT AVAILABLE)
16035-MG9-004
|
$50.07 | ||
|
Unavailable |
|||
|
#10
PLATE SET, VALVE
16037-ME5-671
|
$33.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE SET, STARTER
16046-MG9-681
|
$79.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, VACUUM PISTON
16051-MG9-004
|
$17.60 | ||
|
Unavailable |
|||
|
#13
SPRING, COMPRESSION COIL
16052-KG4-003
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
16052-MB0-671
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
TOP (NOT AVAILABLE)
16107-MG9-004
|
$35.90 | ||
|
Unavailable |
|||
|
#15
CAP (NOT AVAILABLE)
16109-MB0-671
|
$9.45 | ||
|
Unavailable |
|||
|
#16
VALVE, THROTTLE (NOT AVAILABLE)
16111-ML8-741
|
$115.56 | ||
|
Unavailable |
|||
|
#17
NEEDLE, JET (NOT AVAILABLE)
16131-MG9-024
|
$18.20 | ||
|
Unavailable |
|||
|
#18
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-ML8-741
|
$23.37 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (4X14)
93500-04014-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (4X16)
93892-04016-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, MAIN (#105)
99101-GHB-1050
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, MAIN (#105)
99101-393-1050
Superseded by 99101-GHB-1050
|
$8.04 | ||
|
Unavailable |
|||
|
#22
JET, SLOW (#40)
99103-MAL-0400
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, SLOW (#40)
99103-437-0400
Superseded by 99103-MAL-0400
|
$13.65 | ||
|
Unavailable |
|||
