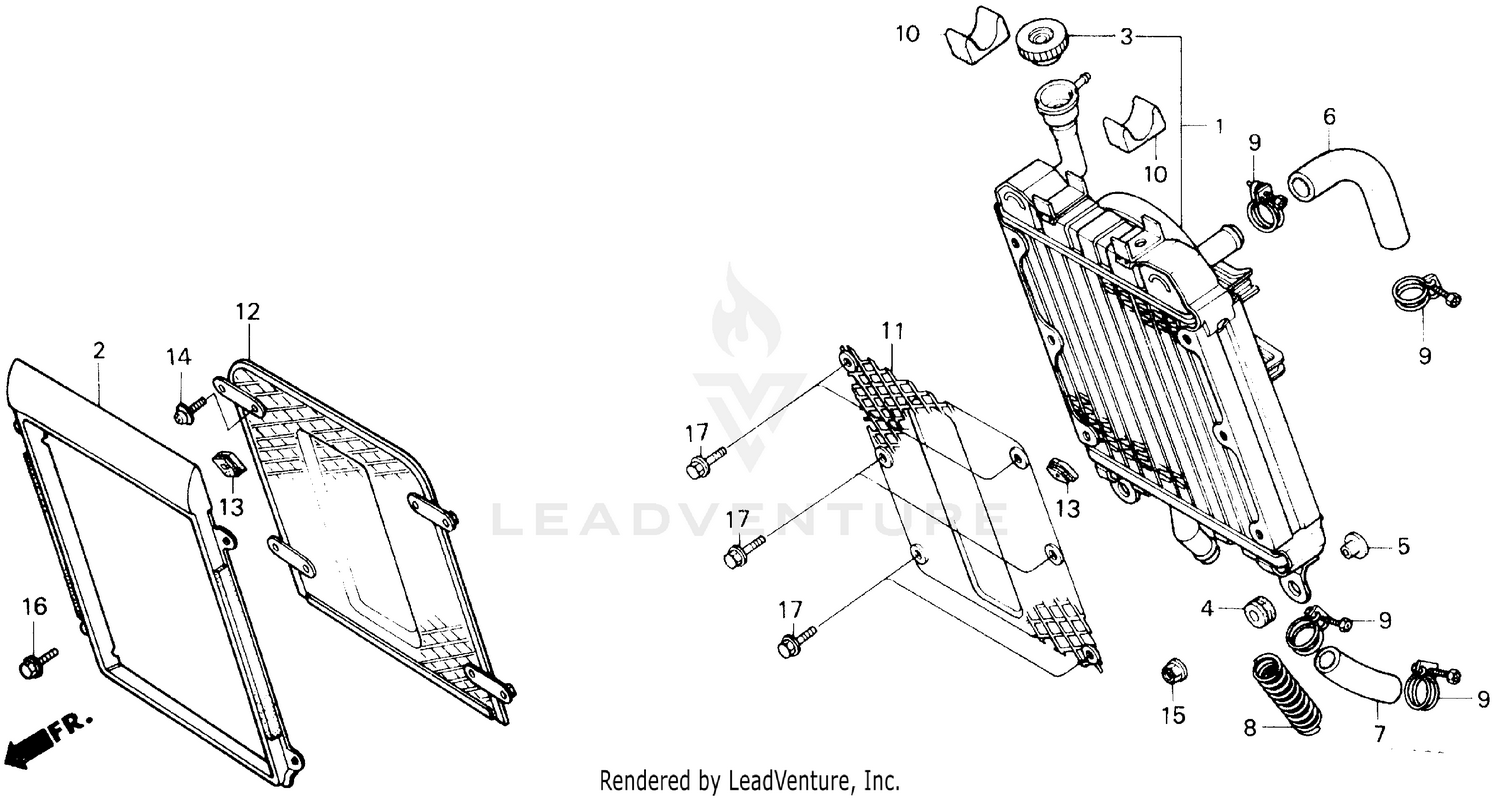

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR (NOT AVAILABLE)
19010-MG9-013
|
$711.81 | ||
|
Unavailable |
|||
|
#3
CAP, RADIATOR
19045-MB0-013
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
19045-MZ3-405
|
$39.36 | ||
|
Unavailable |
|||
|
#4
RUBBER, RADIATOR MOUNTING
19051-KA4-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RADIATOR MOUNTING
19052-MB0-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, WATER (UPPER)
19501-431-000
|
$44.07 | ||
|
Unavailable |
|||
|
#7
HOSE, WATER (LOWER)
19502-MG9-000
|
$13.51 | ||
|
Unavailable |
|||
|
#8
GUARD B, WIRE (NOT AVAILABLE)
19512-MG9-010
|
$9.12 | ||
|
Unavailable |
|||
|
#9
BAND A, HOSE
19515-431-003
|
$6.68 | ||
|
Unavailable |
|||
|
#10
RUBBER, RADIATOR (UPPER) (NOT AVAILABLE)
19518-MG9-000
|
$4.29 | ||
|
Unavailable |
|||
|
#11
GRILL,RAD.
85400-MG9-770
Superseded by 85400-MG9-505
|
$102.87 | ||
|
Unavailable |
|||
|
#13
GROMMET, RADIATOR GRILLE (NOT AVAILABLE)
85401-371-000
|
$2.13 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
96000-06010-07
Superseded by 96001-06010-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
