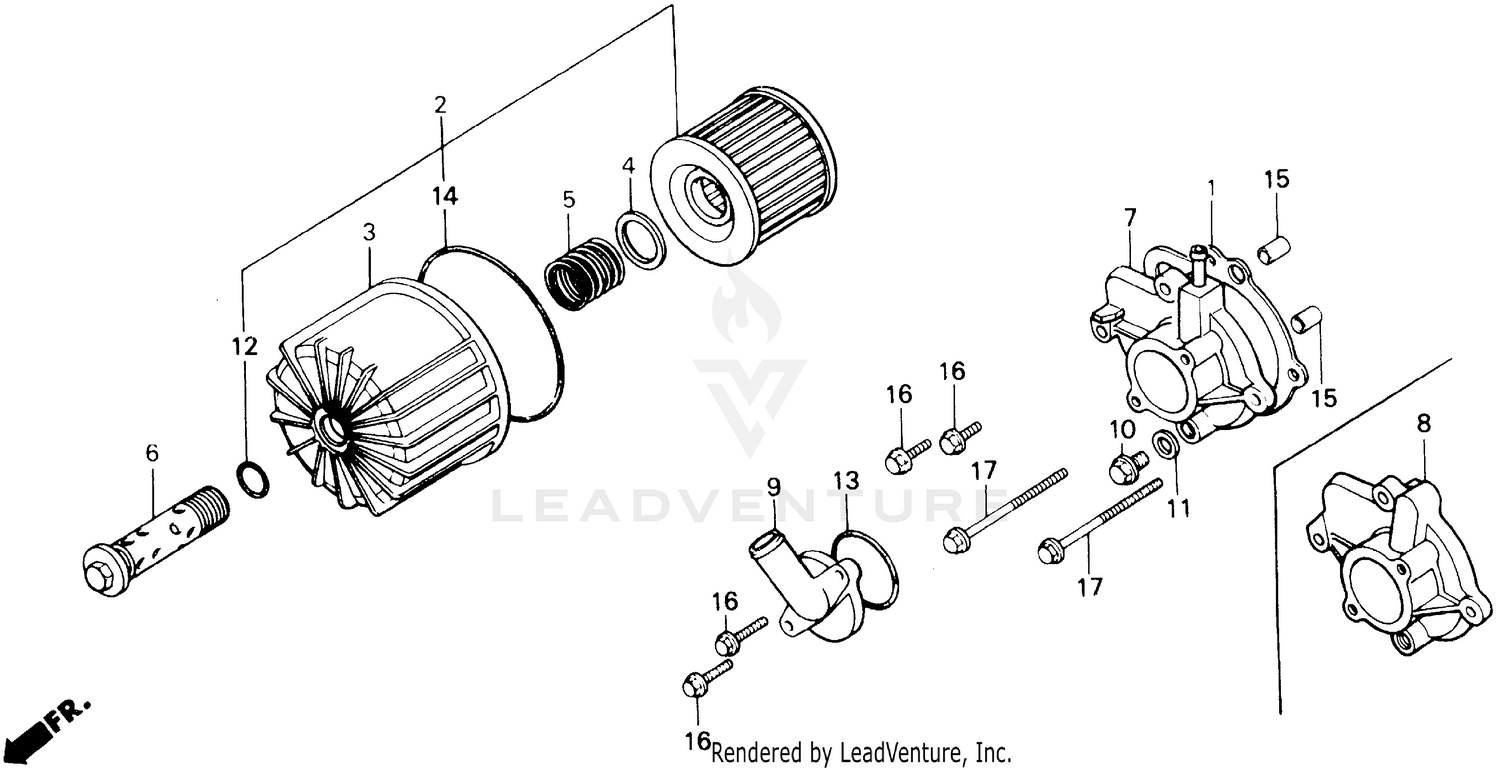

Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, WATER PUMP
11396-371-000
Superseded by 11396-371-306
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, WATER PUMP
11396-371-306
|
$8.76 | ||
|
Unavailable |
|||
|
#2
ELEMENT, OIL FILTER
15410-426-010
|
$10.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CASE, OIL FILTER (NOT AVAILABLE)
15411-371-000
|
$78.91 | ||
|
Unavailable |
|||
|
#4
SEAT, OIL FILTER SPRING
15414-300-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, OIL FILTER ELEMENT SETTING
15415-300-000
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, OIL FILTER CENTER
15420-300-020
|
$56.15 | ||
|
Unavailable |
|||
|
#8
COVER, WATER PUMP (NOT AVAILABLE)
19221-MG9-000
|
$92.13 | ||
|
Unavailable |
|||
|
#9
CAP, WATER PUMP
19225-371-000
|
$26.33 | ||
|
Unavailable |
|||
|
#10
CHECK BOLT, OIL LEVEL
90007-371-004
Superseded by 90035-KZ1-000
|
$3.22 | ||
|
Unavailable |
|||
|
#11
WASHER (10.2MM)
90481-463-000
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (15X2.5)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (46X2)
91305-216-000
Superseded by 91305-426-003
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (46X2)
91305-426-003
|
$9.02 | ||
|
Unavailable |
|||
|
#14
O-RING (89X4.5)
91316-300-005
Superseded by 91316-425-003
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (89X4.5)
91316-425-003
|
$5.58 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X80)
96000-06080-02
|
$3.78 | ||
|
Unavailable |
|||
