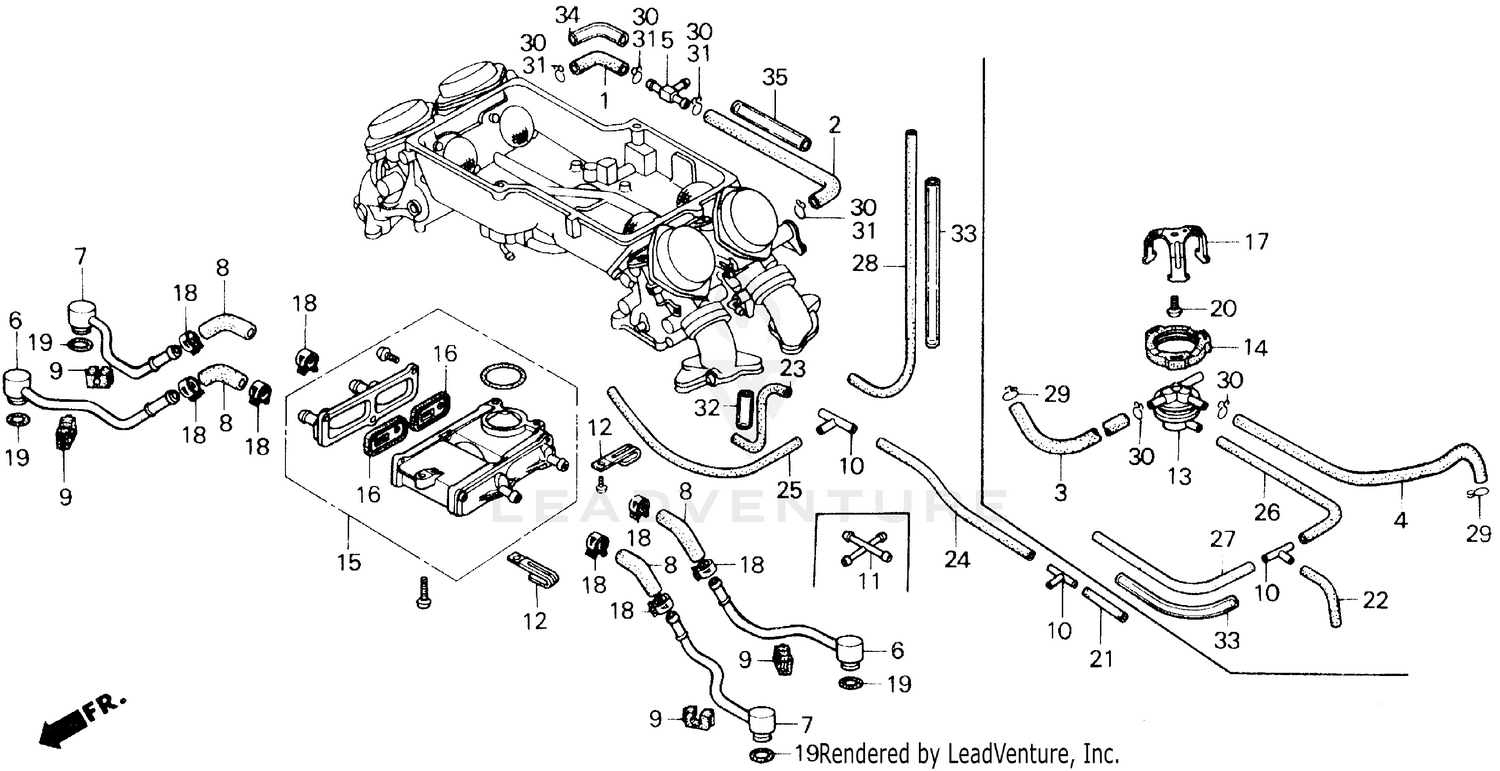

Air Suction Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, R. FUEL (NOT AVAILABLE)
16191-MG9-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, L. FUEL (NOT AVAILABLE)
16192-MG9-000
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, FUEL TUBE (NOT AVAILABLE)
16958-MG9-000
|
$4.77 | ||
|
Unavailable |
|||
|
#6
PIPE A, AIR FEED (NOT AVAILABLE)
17130-ML8-000
|
$16.36 | ||
|
Unavailable |
|||
|
#7
PIPE B, AIR FEED (NOT AVAILABLE)
17140-ML8-000
|
$15.45 | ||
|
Unavailable |
|||
|
#8
HOSE, AIR FEED (NOT AVAILABLE)
17150-MG9-000
|
$6.02 | ||
|
Unavailable |
|||
|
#9
RUBBER, AIR PIPE SETTING
17151-MG9-000
|
$5.00 | ||
|
Unavailable |
|||
|
#10
JOINT A, VACUUM TUBE
17201-MG9-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP A, TUBE (NOT AVAILABLE)
17215-MG9-000
|
$2.54 | ||
|
Unavailable |
|||
|
#15
VALVE ASSY., AIR SUCTION (NOT AVAILABLE)
18600-MG9-004
Superseded by 18600-MG9-014
|
$157.51 | ||
|
Unavailable |
|||
|
#16
VALVE, REED
18601-MG9-005
Superseded by 18601-MJ1-791
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, REED
18601-MJ1-791
|
$25.24 | ||
|
Unavailable |
|||
|
#18
CLAMP D (15.5MM)
53729-671-003
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.8X2.4)
91352-425-003
Superseded by 91305-422-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.8X2.4)
91305-422-000
|
$2.96 | ||
|
Unavailable |
|||
|
#23
BULK HOSE, FUEL (3.5X3000) (3.5X90)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
BULK HOSE, FUEL (3.5X3000) (3.5X170)
95001-35003-60M
|
$25.27 | ||
|
Unavailable |
|||
|
#25
BULK HOSE, FUEL (3.5X3000) (3.5X190)
95001-35003-60M
|
$25.27 | ||
|
Unavailable |
|||
|
#28
BULK HOSE, FUEL (3.5X3000) (3.5X470)
95001-35003-60M
|
$25.27 | ||
|
Unavailable |
|||
|
#30
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
TUBE, VINYL (8X9X2000) (NA USE ALT:95003-21003-10M)
95003-21020-20
Superseded by 95003-21200-20
|
$0.70 | ||
|
Unavailable |
|||
|
#35
BULK HOSE, VINYL (11X13X3000)
95003-36003-10M
|
$13.38 | ||
|
Unavailable |
|||
