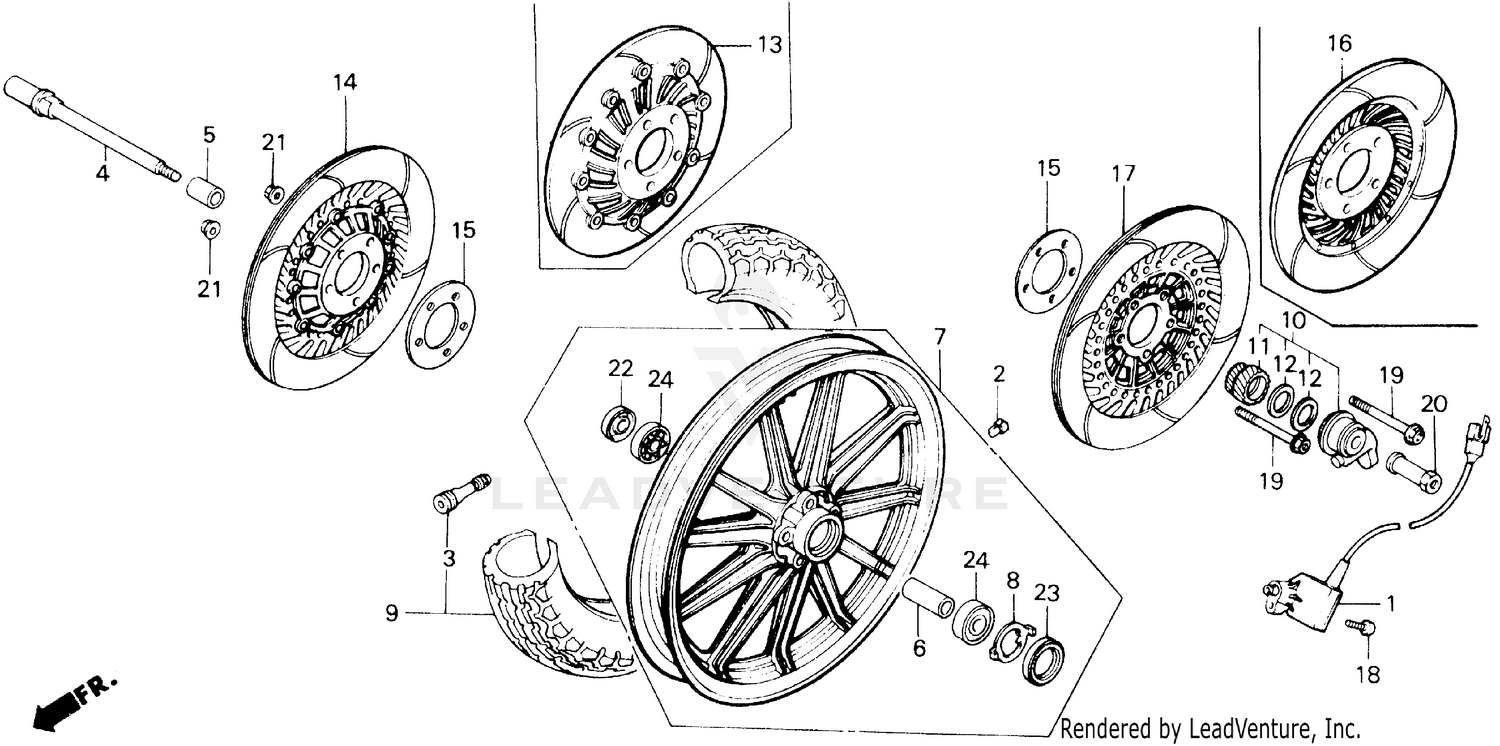

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
WEIGHT, BALANCE (10G)
42704-MB0-000
Superseded by 42704-MCF-D60
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
WEIGHT, BALANCE (20G)
42705-MB0-000
Superseded by 42705-MCF-D60
|
$17.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
WEIGHT, BALANCE (30G)
42706-MB0-000
Superseded by 42706-MCF-D60
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM
42753-GC7-822
Superseded by 42753-VM0-003
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM
42753-GC7-823
Superseded by 42753-VM0-003
|
$12.49 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM
42753-VM0-003
|
$12.49 | ||
|
Unavailable |
|||
|
#4
AXLE, FR. WHEEL
44301-463-000
|
$65.08 | ||
|
Unavailable |
|||
|
#5
COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)
44311-410-000
Superseded by 44311-425-870
|
$32.23 | ||
|
Unavailable |
|||
|
#6
COLLAR, FR. WHEEL DISTANCE (NOT AVAILABLE)
44620-410-000
|
$11.03 | ||
|
Unavailable |
|||
|
#7
WHEEL, FR. (NOT AVAILABLE)
44650-MG9-680
|
$570.25 | ||
|
Unavailable |
|||
|
#8
RETAINER, GEAR BOX
44680-410-000
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE ASSY., FR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE)
44710-MG9-003
Superseded by 44710-MG9-004
|
$95.50 | ||
|
Unavailable |
|||
|
#9
TIRE ASSY., FR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE)
44710-MG9-004
|
$95.50 | ||
|
Unavailable |
|||
|
#10
BOX ASSY., SPEEDOMETER GEAR
44800-MG9-003
Superseded by 44800-MG9-013
|
$87.37 | ||
|
Unavailable |
|||
|
#10
BOX ASSY., SPEEDOMETER GEAR
44800-MG9-013
|
$87.37 | ||
|
Unavailable |
|||
|
#11
GEAR, SPEEDOMETER (NOT AVAILABLE)
44806-MG9-003
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPEEDOMETER GEAR
44809-402-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, R. FR. (NOT AVAILABLE)
45120-MG9-000
|
$419.94 | ||
|
Unavailable |
|||
|
#15
SHIM, DAMPING
45128-445-630
|
$4.92 | ||
|
Unavailable |
|||
|
#16
DISK, L. FR. (NOT AVAILABLE)
45220-MG9-000
|
$406.03 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X116) (NOT AVAILABLE)
90113-MG9-000
|
$3.91 | ||
|
Unavailable |
|||
|
#20
NUT, AXLE (12MM) (NOT AVAILABLE)
90305-MB9-780
|
$21.98 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#22
DUST SEAL (22X42X7) (ARAI)
91252-MC7-003
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$18.62 | ||
|
Unavailable |
|||
