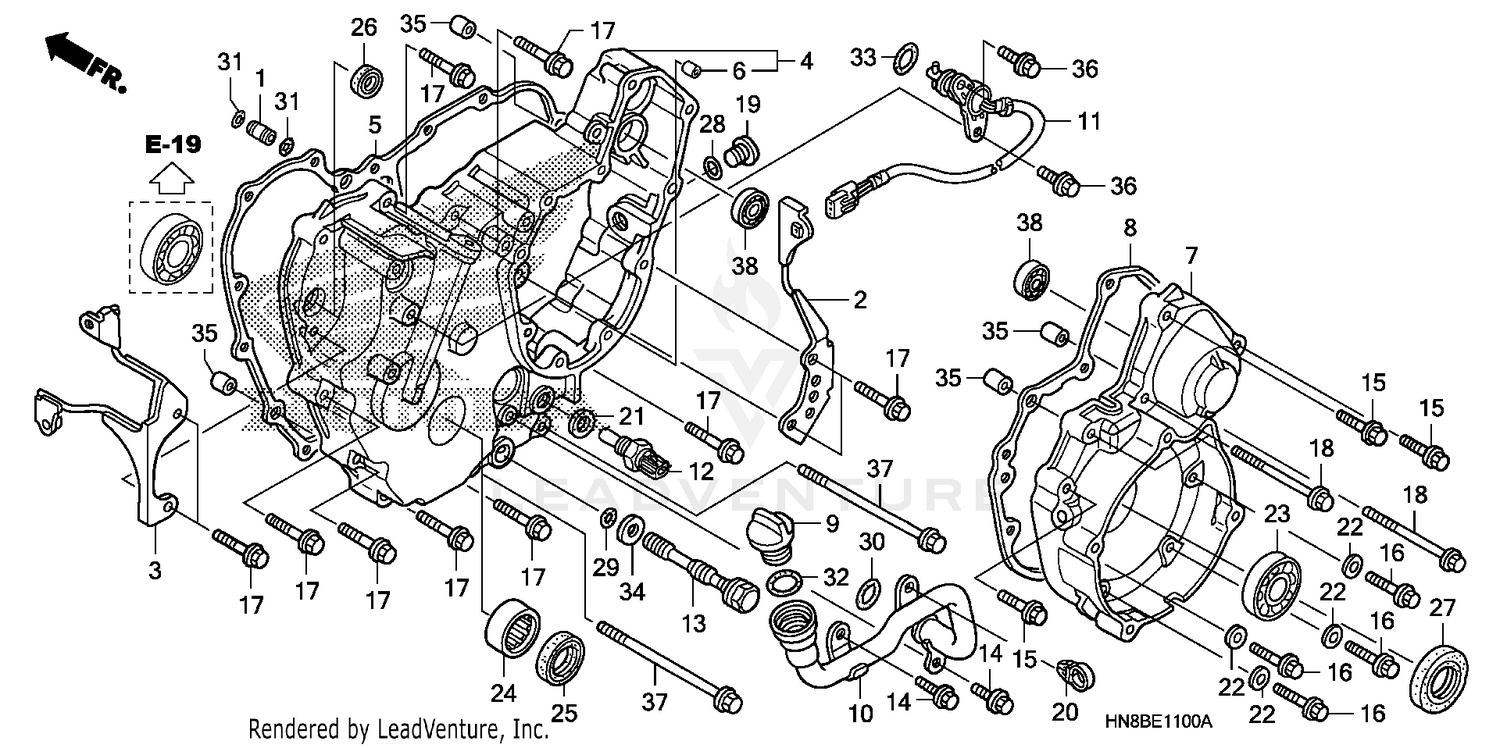

Rear Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, OIL GUIDE (8MM)
11145-HN8-010
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, R. RR. ENGINE SIDE COVER
11312-HN8-000
|
$21.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, L. RR. ENGINE SIDE COVER
11322-HN8-A60
|
$23.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, RR.
11340-HN8-A60
|
$249.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, RR. COVER
11345-HN8-000
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
ORIFICE (1.0MM)
11349-HN8-300
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, ALTERNATOR
11350-HN8-F40
|
$136.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, ALTERNATOR COVER
11396-HN8-A60
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, OIL FILLER
15655-HN8-010
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, OIL FILLER
15660-HN8-000
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., CHANGE
35759-HN8-000
|
$102.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., THERMOSTAT OIL (PANASONIC)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, DRAIN PLUG (12MM)
90002-HL3-A00
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X14) (NSHF)
90004-GHB-620
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X28) (NSHF)
90004-GHB-680
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X32) (NSHF)
90004-GHB-690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X35) (NSHF)
90004-GHB-700
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X90) (NSHF)
90004-GHB-810
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP (14MM)
90084-KY2-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, FUEL BREATHER TUBE
90115-HN8-000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER A, SEALING (6MM)
90443-035-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6906)
91015-HN8-003
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE (25X37X17)
91021-HN8-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (25X35X5)
91203-KCY-671
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL (13X22X5) (ARAI)
91204-KE8-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (34X50X7) (ARAI)
91261-MB0-003
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING (9X1.8)
91305-GE1-920
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (17X3.6)
91305-HN8-003
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (21.5X3.2)
91307-425-003
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (17.0X2.5) (ARAI)
91333-KE5-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (17.0X2.5) (ARAI)
91333-567-010
Superseded by 91333-KE5-003
|
$2.55 | ||
|
Unavailable |
|||
|
#34
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (8X140)
95701-08140-00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
