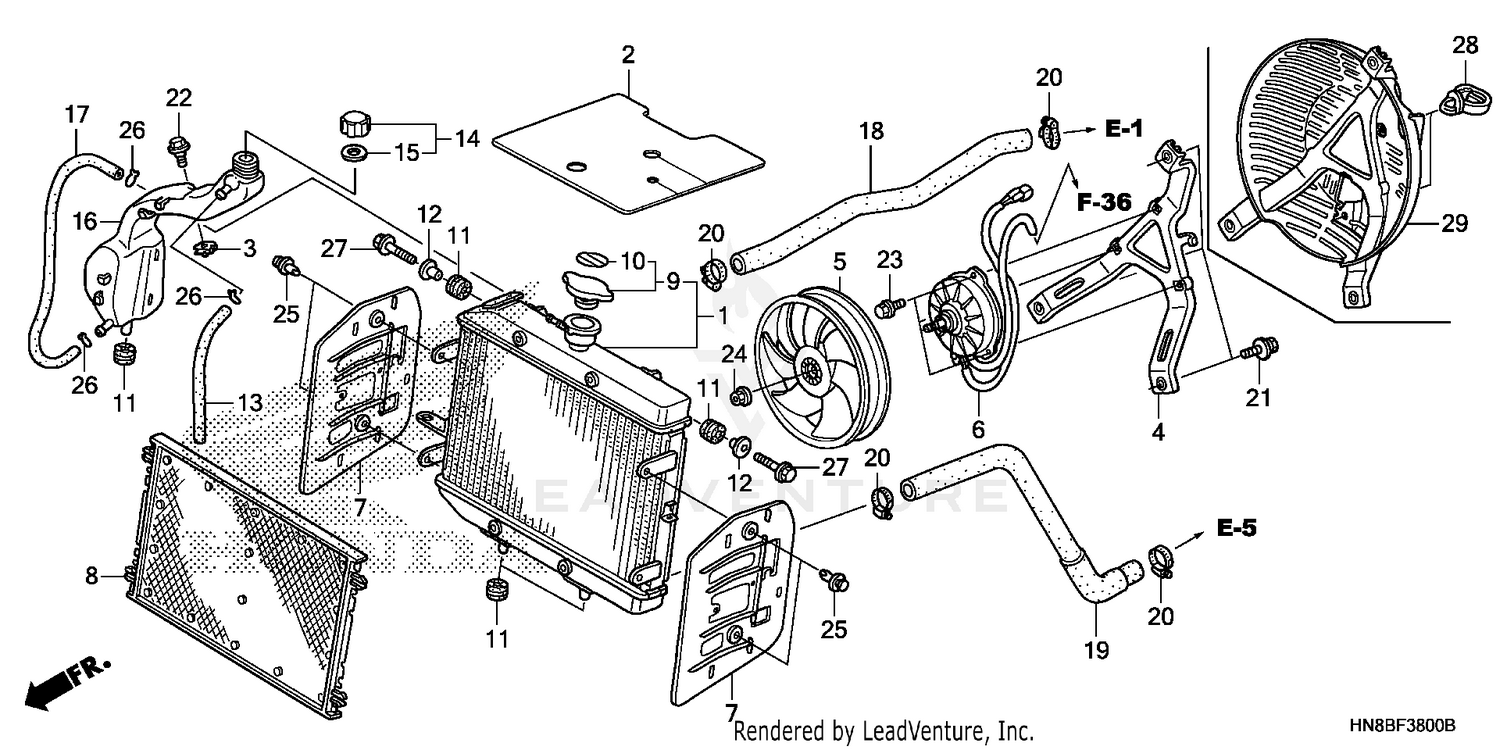

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-HN8-A61
|
$283.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, RADIATOR
19011-HN8-A60
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
FAN, COOLING
19020-HN2-003
|
$83.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., FAN
19030-HN8-F41
|
$111.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, RADIATOR GRILLE
19033-HN8-000
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, RADIATOR GRILLE
19035-HN8-000
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, RESERVE TANK BREATHER
19104-HN8-000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP ASSY., RESERVE TANK
19105-MG8-000
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, RESERVE TANK
19107-MG8-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANK, RADIATOR RESERVE
19110-HN8-000
|
$54.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, RADIATOR RESERVE
19111-HN8-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, WATER (UPPER)
19505-HN8-000
|
$17.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, WATER (LOWER)
19506-HN8-000
|
$18.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (6X15)
90107-HN8-003
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (5X10)
90196-MN5-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, WIRE HARNESS (25MM)
90683-SA0-003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
STAY, COOLING FAN
19015-HN8-F41
|
$31.35 | ||
|
Available to order. Add to View Price |
|||
