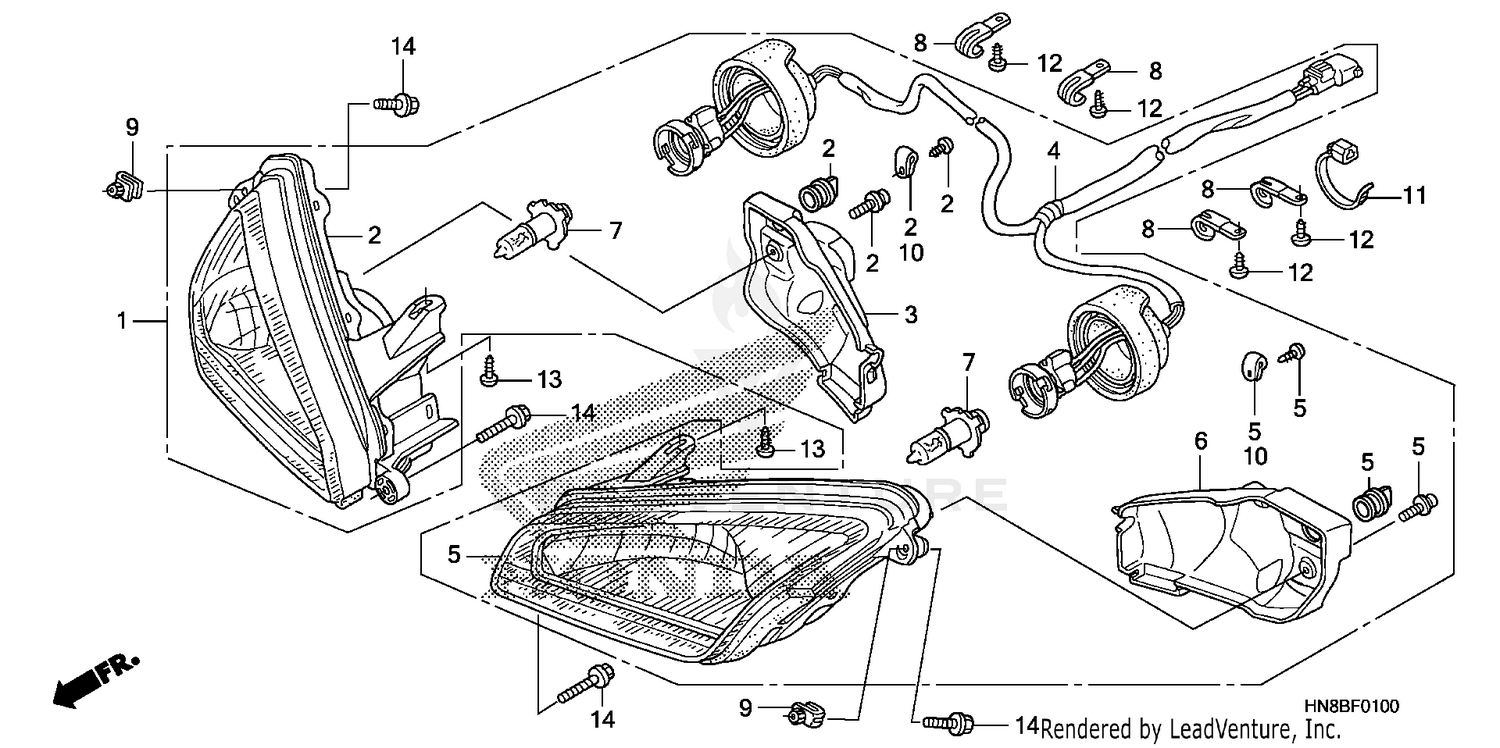

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 40/40W)
33100-HN8-003
|
$397.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT UNIT, R.
33110-HN8-003
|
$149.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, R. HEADLIGHT
33111-HN8-003
|
$53.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, HEADLIGHT
33120-HN8-003
|
$125.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEADLIGHT UNIT, L.
33160-HN8-003
|
$162.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, L. HEADLIGHT
33161-HN8-003
|
$53.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB, HEADLIGHT (12V 40/40W)
34901-GCH-004
|
$37.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, TUBE
90010-GE0-710
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CLIP (6MM)
90344-KEM-900
Superseded by 90344-692-003
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CLIP (6MM)
90344-692-003
|
$6.10 | ||
|
Unavailable |
|||
|
#10
CLIP (7.5MM)
90627-ZA8-E50
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (5X12)
93903-25220
|
$0.95 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING (5X20)
93903-35420
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
