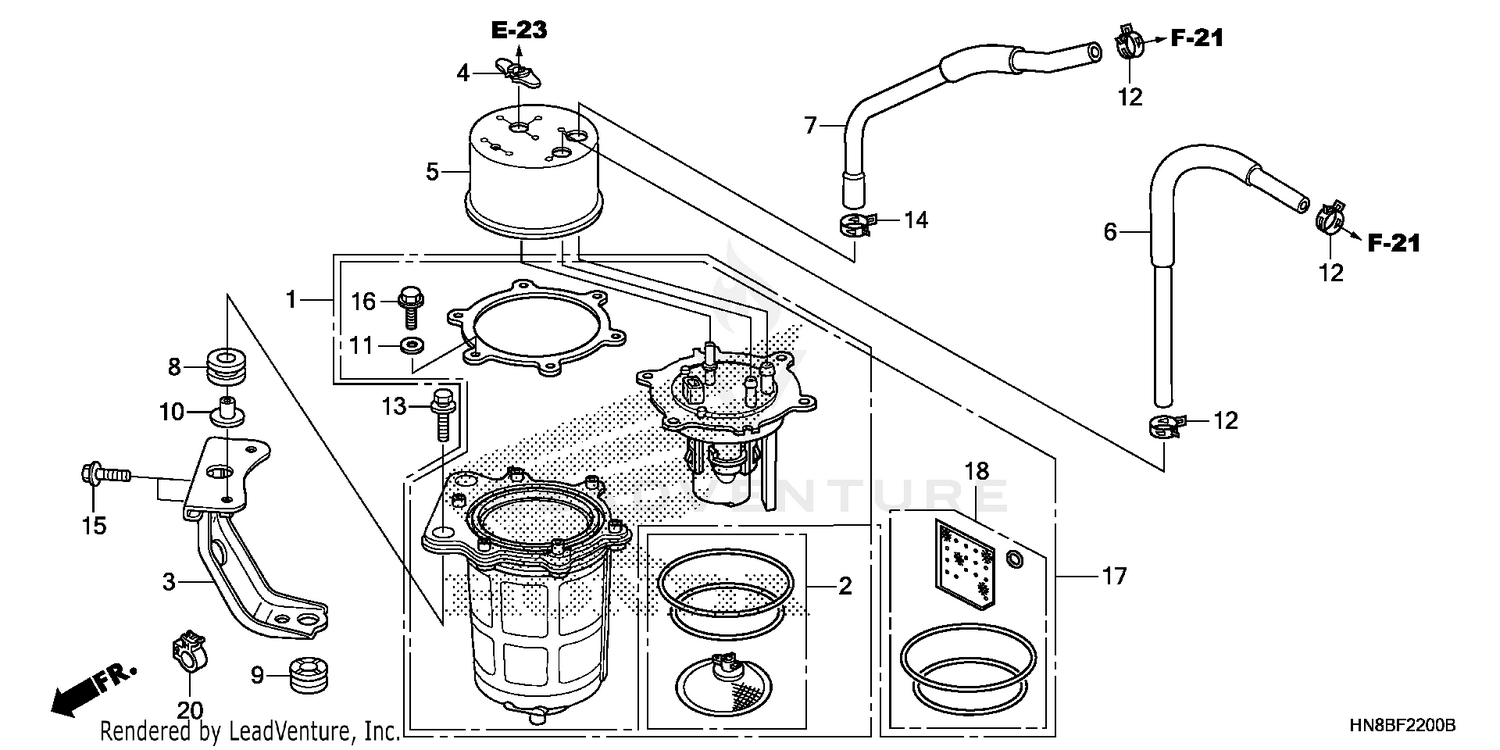

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
SUB-STAY, FUEL PUMP
16710-HN8-A60
|
$19.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, CONNECTOR
16718-HR0-F00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, FUEL PUMP
16720-HN8-A60
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, FUEL PUMP BREATHER
16730-HN8-B40
|
$25.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, FUEL
16955-HN8-B40
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MUFFLER
18334-KA3-830
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CONICAL SPRING
90501-HN8-A60
|
$0.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP, TUBE (12.0)
90651-HN6-A51
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, TUBE (D13)
95002-41300-05
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
PUMP ASSY., FUEL (MSDS)
16700-HN8-601
|
$174.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)
16706-HR0-F01
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
