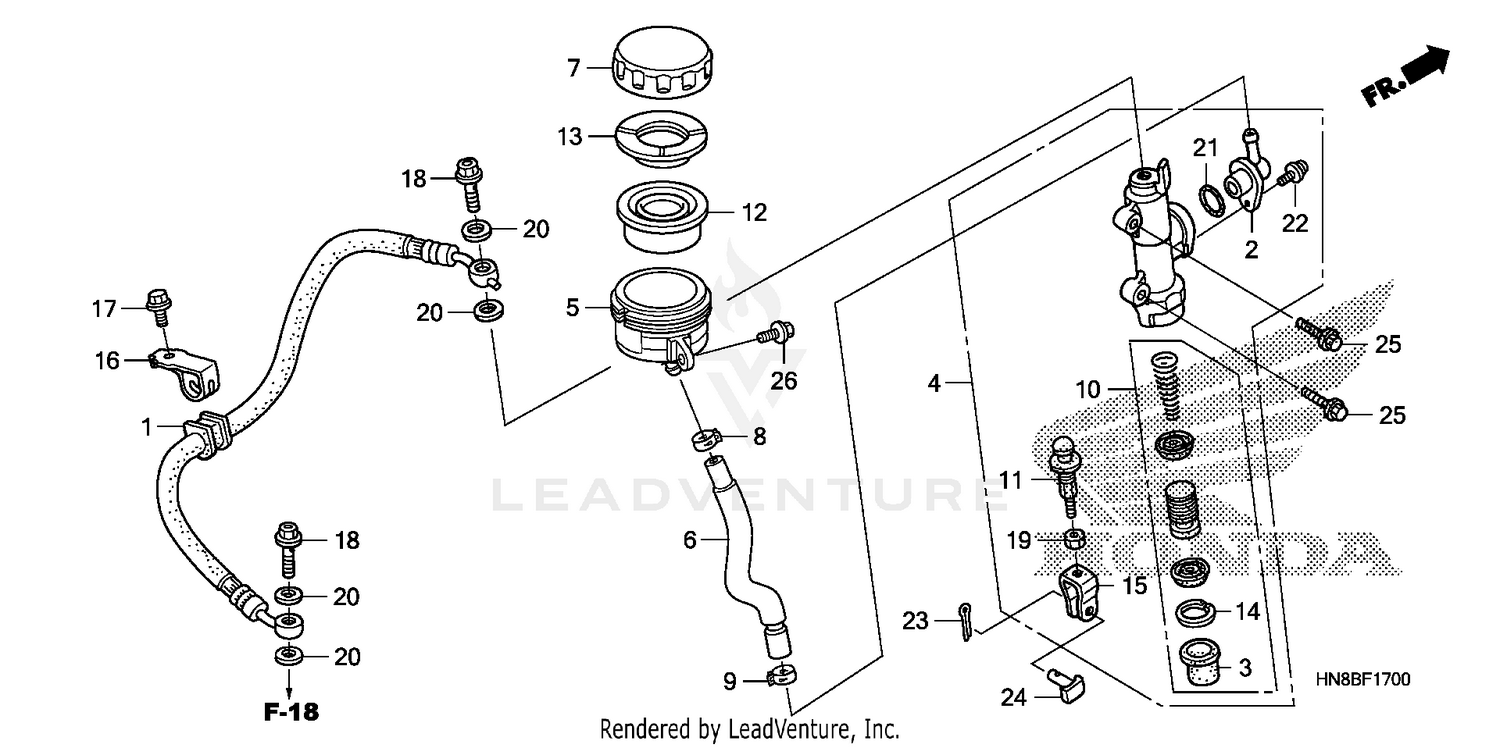

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE
43310-HN8-F41
|
$37.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, MASTER CYLINDER
43503-MB2-006
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO)
43510-HN8-305
|
$131.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, OIL
43511-MR7-016
|
$37.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. BRAKE MASTER CYLINDER
43512-HN8-006
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-MN9-006
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MG9-315
|
$68.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH
43530-MM5-006
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, BRAKE ROD
46504-HN8-006
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP B, FR. BRAKE HOSE
51208-HM8-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
90107-HC5-000
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPECIAL (8MM)
90315-MAT-006
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#23
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
