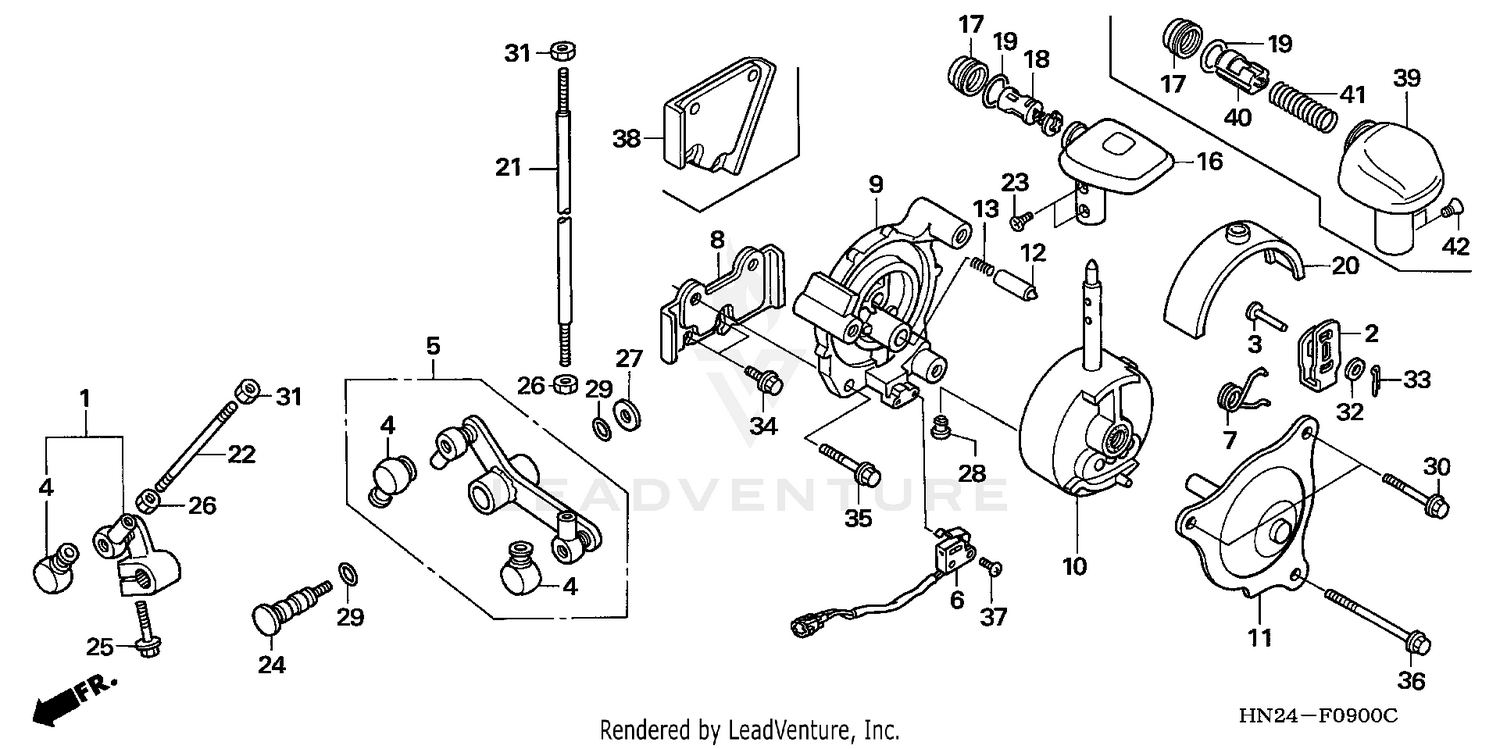

Select Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT
24712-HN2-000
|
$25.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, SHIFT SPRING
24722-HN2-000
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, SLIDE
24723-HN2-000
|
$45.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, CHANGE MIDDLE
24732-HN2-000
|
$42.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., REVERSE
35370-HN2-005
|
$43.26 | ||
|
Unavailable |
|||
|
#7
SPRING, SHIFT RETURN
50617-HN2-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, SHIFT
54004-HN2-000
|
$8.85 | ||
|
Unavailable |
|||
|
#9
BRACKET, SELECT LEVER
54201-HN2-003
|
$84.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER SUB-ASSY., SELECT
54202-HN2-003
|
$223.78 | ||
|
Unavailable |
|||
|
#11
COVER, SELECT LEVER
54207-HN2-003
|
$21.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, DETENT
54208-HN2-003
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, DETENT
54209-HN2-003
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNOB, SELECT
54213-HN2-013
|
$34.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT, PUSH KNOB
54214-HN2-003
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
KNOB, PUSH
54215-HN2-003
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, PUSH KNOB BOOT
54216-HN2-003
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, SHIFT LEVER
54226-HN2-000
|
$14.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, TIE ROD
90065-HN2-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, TIE ROD
90065-MW3-A90
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, OVAL (5X8) (LOCK)
90111-HN2-000
|
$1.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, CHANGE PIVOT
90115-HN2-010
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X20)
90118-968-000
|
$5.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (8MM)
90501-HN2-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, CHANGE REINFORCEMENT
90801-SB0-000
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (9.4X2.4)
91304-KK3-830
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT-WASHER (6X20)
93401-06020-08
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, SPLIT (2.0)
94201-20101
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW-WASHER (3X14)
90101-HN2-000
|
$1.35 | ||
|
Unavailable |
|||
