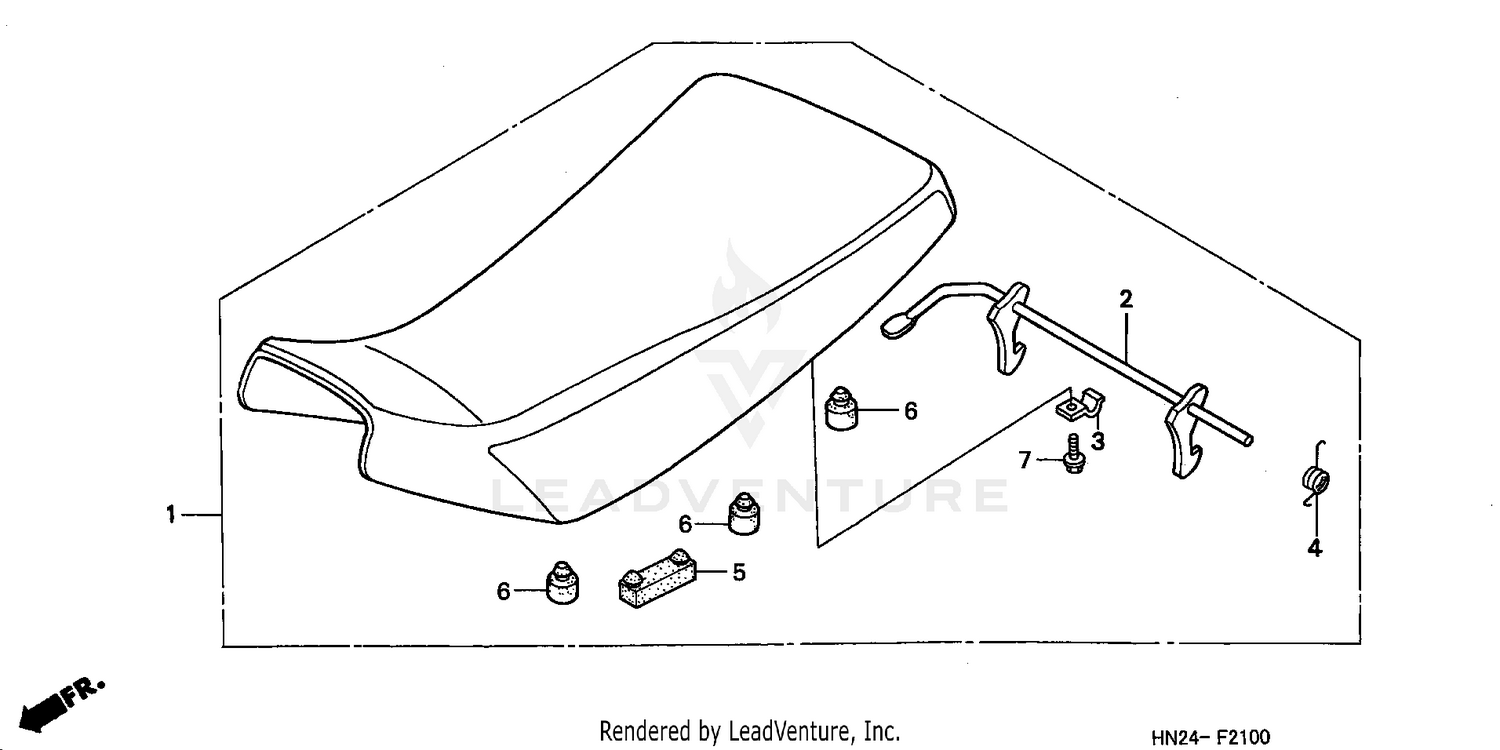

Seat (trx500fa'01-'04/fga'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT *NH1L* (BLACK)
77100-HN2-000ZA
|
$363.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, SEAT LOCK
77105-HN2-000
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, LOCK LEVER
77106-HB3-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, SEAT LOCK
77107-958-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SEAT CUSHION
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
