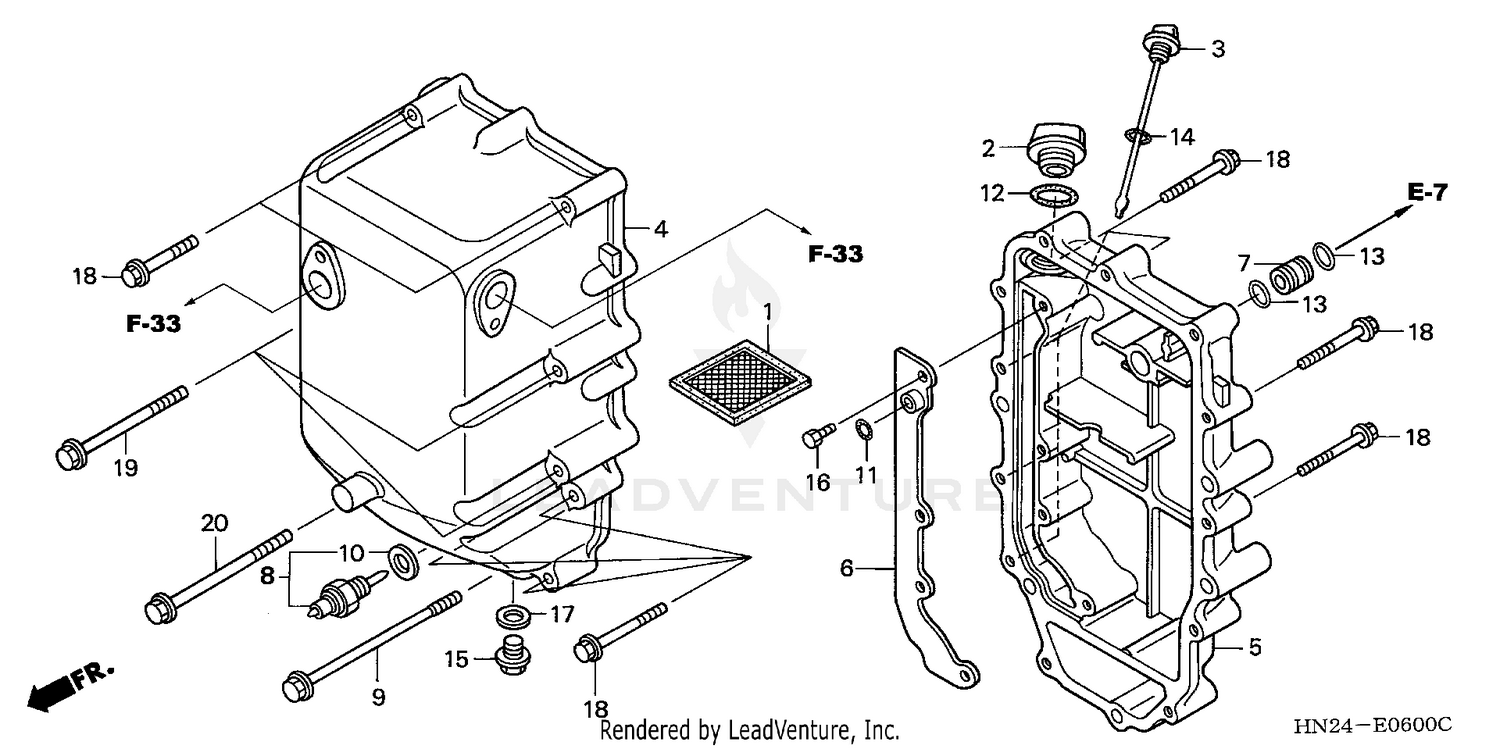

Oil Tank (trx500fa'01-'04/fga'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREEN, OIL FILTER
15421-HC4-005
Superseded by 15421-HR3-A40
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, OIL TANK
15651-HN2-000
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15660-HN2-000
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANK, FR. OIL
15710-HN2-000
|
$172.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK, RR. OIL
15721-HN2-000
|
$211.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, OIL TANK
15730-HN2-000
|
$22.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, RR. OIL TANK
15771-HN2-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., THERMOSTAT OIL (TOYO)
37750-HC4-751
|
$75.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X176)
90017-PP6-000
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING
90401-HA8-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING
90401-HC4-750
Superseded by 90401-HA8-000
|
$4.80 | ||
|
Unavailable |
|||
|
#11
O-RING (11.7X1.9) (KEIHIN)
91303-P6H-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (28X3)
91307-MK5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (18.5X2.4) (ARAI)
91311-MB0-003
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (8.4X2.4)
91316-MJ8-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (5X12)
93101-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X100)
95701-08100-00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X110)
95701-08110-08
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
