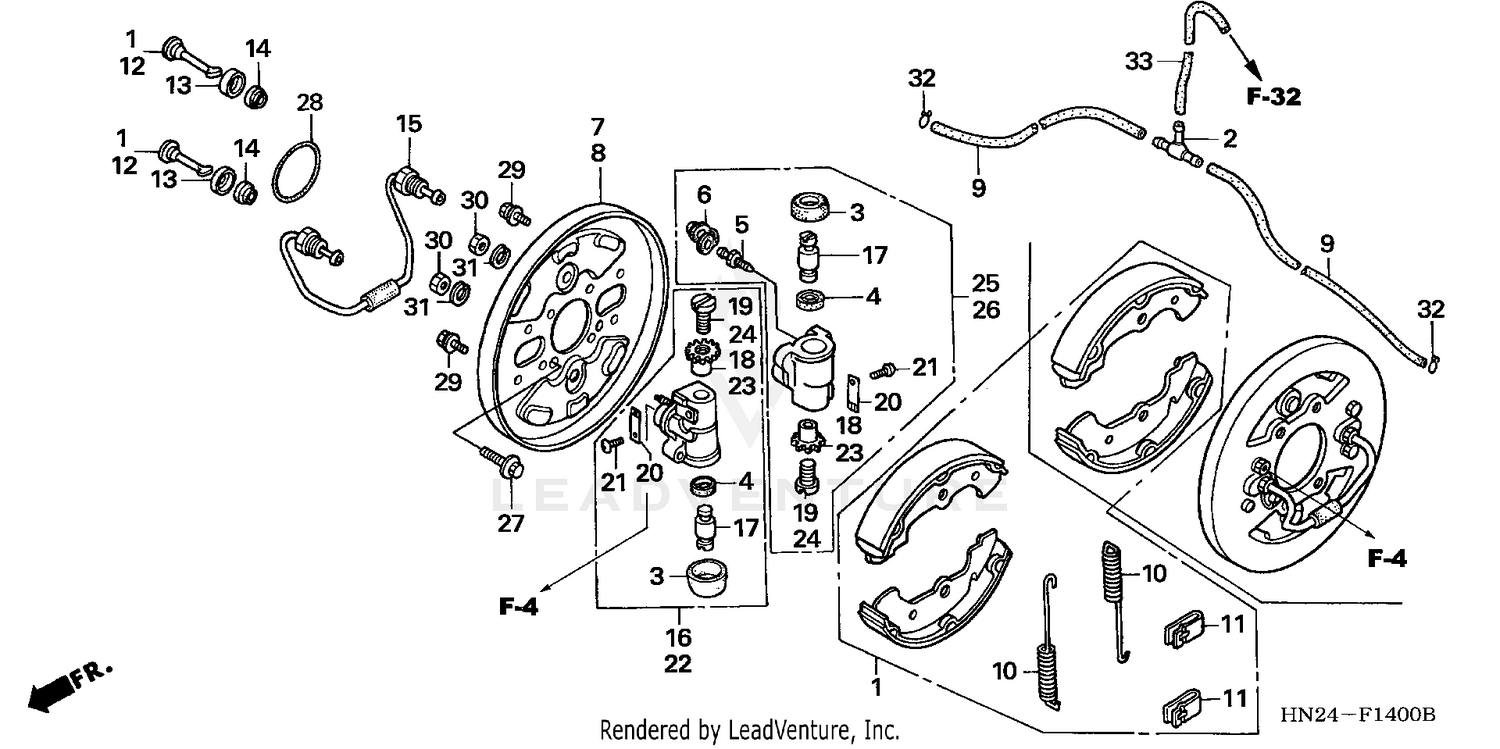

Front Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOE SET, BRAKE
06450-HN5-671
|
$61.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, TUBE
38581-671-003
Superseded by 38581-679-003
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, TUBE
38581-679-003
|
$17.85 | ||
|
Unavailable |
|||
|
#3
COVER, DUST
43315-SN4-003
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DUST
43315-671-631
Superseded by 43315-SN4-003
|
$6.68 | ||
|
Unavailable |
|||
|
#4
CUP, PISTON
43322-663-003
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, R. BACK
45110-HN5-671
|
$180.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, L. BACK
45120-HN5-671
|
$165.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, FR. BRAKE BREATHER
45136-HN2-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, BRAKE
45171-HN5-671
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SHOE CLAMP
45172-S04-003
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, TENSION
45175-HC4-006
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, PIN (NISSIN)
45176-HM5-A81
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, PIN (NISSIN)
45177-HA7-651
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, FR. WHEEL CYLINDER
45181-HC5-006
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
CYLINDER ASSY., R. FR. WHEEL
45310-HN2-006
|
$54.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PISTON
45314-HN0-A01
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, R. ADJUSTER
45316-VM0-003
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, R. ADJUSTING
45317-634-013
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK, SPRING
45318-HA7-671
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X6)
45319-634-003
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
CYLINDER ASSY., L. FR. WHEEL
45330-HN2-006
|
$54.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, L. ADJUSTER
45336-VM0-003
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, L. ADJUSTING
45337-634-013
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
CYLINDER ASSY. B, R. FR. WHEEL
45350-HN0-A01
Superseded by 45350-HN5-N01
|
$41.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
CYLINDER ASSY. B, R. FR. WHEEL
45350-HN5-N01
|
$41.25 | ||
|
Unavailable |
|||
|
#26
CYLINDER ASSY. B, L. FR. WHEEL
45370-HN0-A01
Superseded by 45370-HN5-N01
|
$41.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X20)
90115-HA7-651
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (64.6X1.7)
91357-HM7-003
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-WASHER (6X12)
93402-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (8MM)
94001-08080-0S
Superseded by 94001-08000-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94001-08080-05
Superseded by 94001-08000-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94001-08200-0S
Superseded by 94001-08000-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING (8MM)
94111-08800
|
$1.03 | ||
|
Unavailable |
|||
|
#32
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#33
BULK HOSE, VACUUM (3.5X1000) (3.5X390)
95005-35001-30M
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
