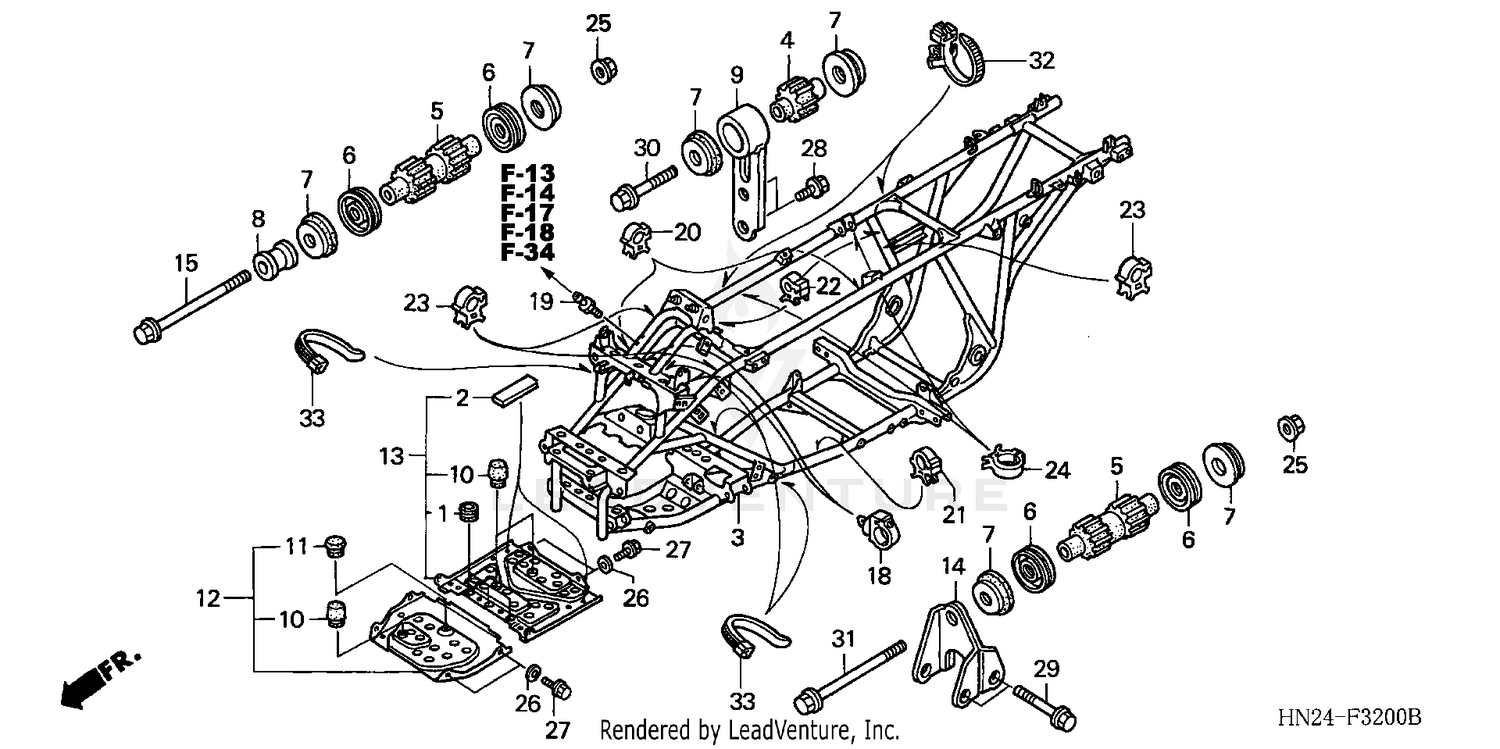

Frame (trx500fa'01-'04/fga'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET A, RR. COVER (8X16X6.6)
11344-MB0-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, TANK SPACER
17511-HM5-670
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME
50100-HN2-000
|
$2,120.32 | ||
|
Unavailable |
|||
|
#4
RUBBER, ENGINE HEAD MOUNTING
50201-HN2-000
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER SET, ENGINE MOUNTING (LOWER) (RIGHT AND LEFT SET)
50202-HN2-305
|
$42.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST SEAL, ENGINE MOUNTING
50203-HM7-003
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER C, MOUNTING
50204-HM7-003
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, ENGINE HANGER
50205-HN2-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, HEAD HANGER
50351-HN2-000
|
$134.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER A, STOPPER
50352-HM5-730
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER B, STOPPER
50354-HM5-730
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD, ENGINE (FR)
50360-HN2-000
|
$27.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, ENGINE (RR)
50361-HN2-000
|
$35.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
HANGER, ENGINE (LOWER)
50363-HN2-000
|
$86.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ENGINE HANGER
90103-147-000
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CABLE (10MM)
90690-GHB-641
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, CABLE (15MM)
90690-GHB-651
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CABLE (20MM)
90690-GHB-661
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CABLE (25MM)
90690-GHB-671
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CABLE (30MM)
90690-GHB-681
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER (8.5MM)
90521-259-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X22)
95701-08022-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X60)
95701-08060-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (10X60)
95701-10060-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (10X125)
95801-10125-00
|
$5.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
