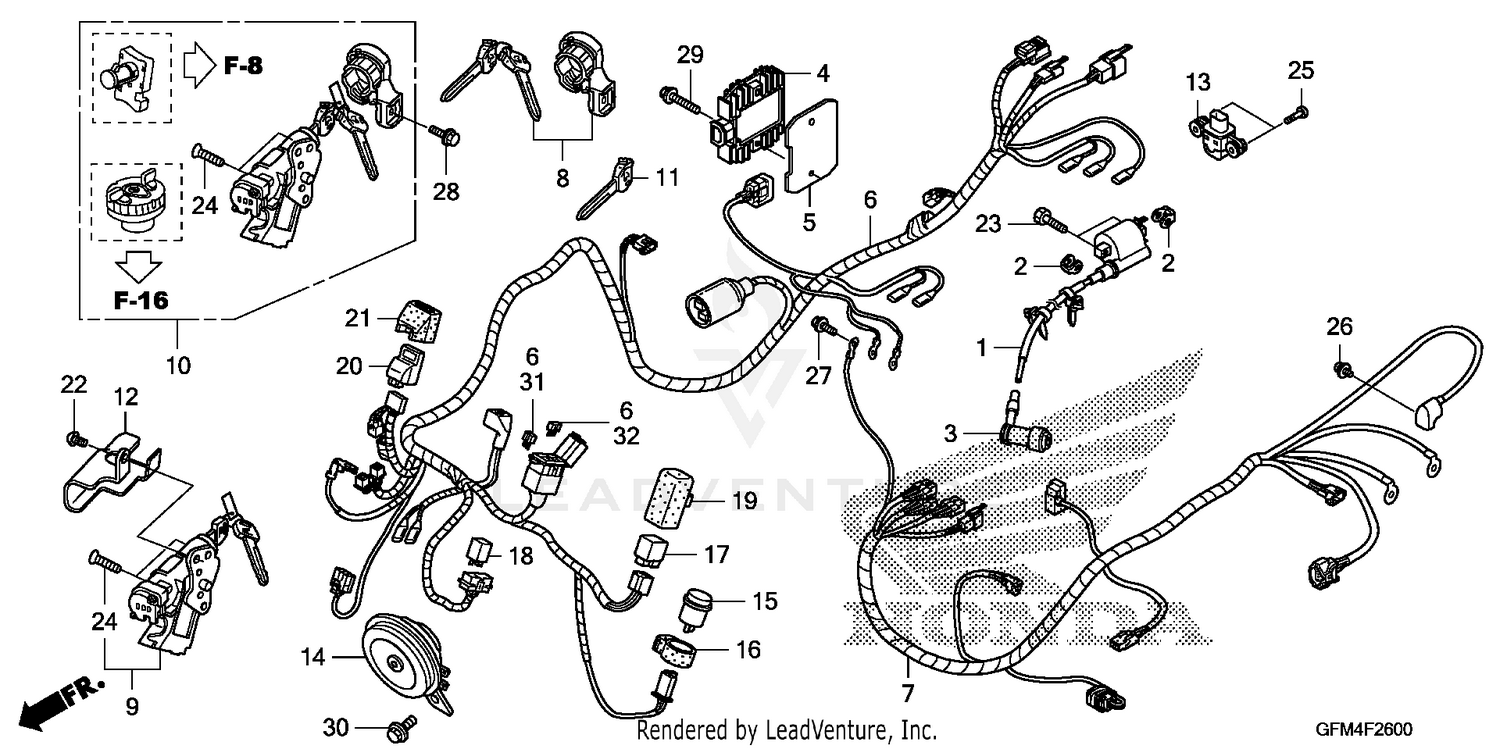

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-GFM-890
Superseded by 30510-GFM-901
|
$72.78 | ||
|
Available to order. Add to View Price |
|||
|
#1
COIL, IGNITION
30510-GFM-901
|
$72.78 | ||
|
Unavailable |
|||
|
#2
SPACER, IGNITION COIL
30520-GFM-900
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-GFM-891
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER ASSY., REGULATE
31600-GFM-890
Superseded by 31600-GFM-901
|
$206.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER ASSY., REGULATE
31600-GFM-901
|
$206.55 | ||
|
Unavailable |
|||
|
#5
PLATE, REGULATOR
31601-GFM-970
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-GFM-A00
|
$417.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, ENGINE
32101-GFM-K00
|
$157.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHUTTER SET, KEY (BREP KEYTOP 1REP 0)
35011-GFM-B10
|
$98.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY. SET, COMBINATION & LOCK
35012-GFM-B10
Superseded by 35012-GFM-B11
|
$203.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY. SET, COMBINATION & LOCK
35012-GFM-B11
|
$203.58 | ||
|
Unavailable |
|||
|
#10
KEY & SCREW SET
35014-GFM-A00
Superseded by 35014-GFM-A02
|
$277.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY & SCREW SET
35014-GFM-A01
Superseded by 35014-GFM-A02
|
$277.67 | ||
|
Unavailable |
|||
|
#11
KEY, BLANK (B1KEYTOP2REPORDER) (NOT AVAILABLE)
35121-GFM-B10
|
|||
|
Unavailable |
|||
|
#12
PROTECTOR, COMBINATION SWITCH
35125-GFM-960
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR ASSY., BANK ANGLE
35160-GFM-K01
|
$83.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
HORN (HIGH)
38110-MBB-000
|
$76.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, AUDIBLE PILOT & TURN SIGNAL
38301-KVJ-840
|
$35.39 | ||
|
Unavailable |
|||
|
#16
SUSPENSION, TURN SIGNAL RELAY
38306-292-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY, STARTER
38501-GFM-890
Superseded by 38501-GFM-901
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY, STARTER
38501-GFM-901
|
$36.87 | ||
|
Unavailable |
|||
|
#18
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY, POWER (MICRO ISO 4P)
38502-GFM-890
Superseded by 38501-MCS-G01
|
$13.04 | ||
|
Unavailable |
|||
|
#19
SUSPENSION, STARTER RELAY
38506-GFM-890
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
PGM-FI UNIT
38770-GFM-A01
|
$285.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
SUSPENSION, ENGINE CONTROL UNIT
38771-GFM-900
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, ONE-WAY (6X10)
90103-GFM-960
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X22)
90106-GFM-900
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT (6X22)
90164-GEE-003
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT (6X22)
90164-GFC-890
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (4X20)
93500-04020-0H
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X6)
93892-04006-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X12)
95701-08012-00
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
