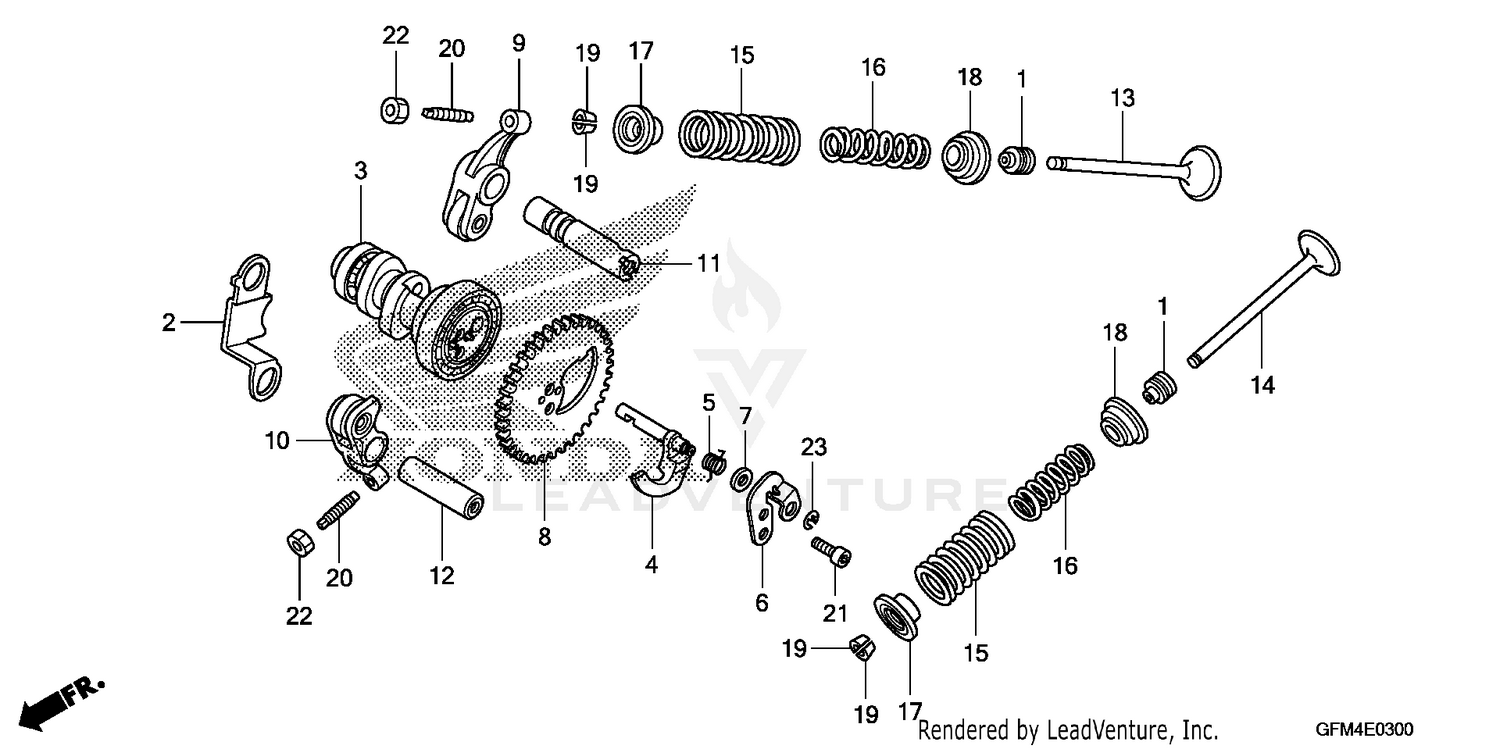

Camshaft + Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (NOK)
12209-GB4-681
|
$7.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
SEAL, VALVE STEM (ARAI)
12209-GB4-682
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
PLATE, CAM STOPPER
12215-GFM-900
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMSHAFT
14100-GFM-B20
|
$135.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
WEIGHT, DECOMPRESSION
14102-GFM-900
|
$116.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, DECOMPRESSION
14106-GFM-900
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, WEIGHT SETTING
14107-GFM-900
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, DECOMPRESSION SPRING
14108-GFM-900
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPROCKET, CAM (34T)
14321-GFM-900
|
$53.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, IN VLV ROCKER
14430-GFM-890
Superseded by 14430-GFM-900
|
$104.33 | ||
|
Unavailable |
|||
|
#10
ARM, EX. VLV ROCKER
14440-GFM-890
Superseded by 14440-GFM-900
|
$101.32 | ||
|
Unavailable |
|||
|
#11
SHAFT, IN. ROCKER ARM
14451-GFM-900
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, EX. ROCKER ARM
14461-GCC-000
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE, IN.
14711-GFM-900
|
$41.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, EX.
14721-GFM-901
|
$72.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, VALVE (OUTER)
14751-KVB-900
|
$1.24 | ||
|
Unavailable |
|||
|
#16
SPRING, VALVE (INNER)
14761-KVB-900
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINER, VALVE SPRING
14771-GFM-900
Superseded by 14771-GB4-680
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT, VALVE SPRING
14775-GFM-900
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COTTER, VALVE
14781-GFM-900
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPET ADJUSTING
90012-GFM-900
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET KNOCK (5MM)
90083-KVB-900
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, TAPPET ADJUSTING
90206-001-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING (4MM)
90601-GFM-970
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
