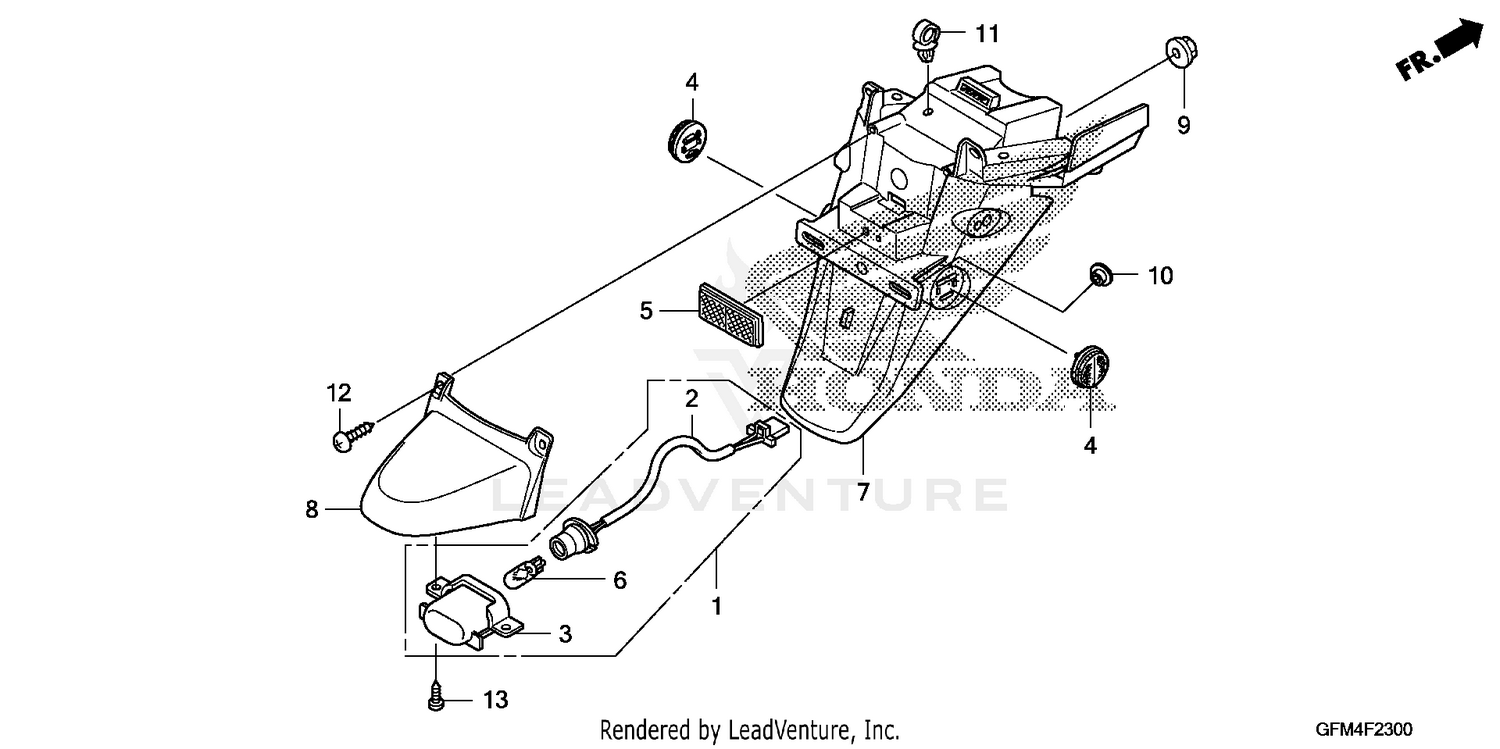

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIGHT ASSY., LICENSE (COO)
33720-GFM-305
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE
33736-GFM-971
|
$38.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
LIGHT, LICENSE
33737-GFM-A01
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR, RR. REFLEX
33741-GS7-671
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
REFLECTOR, REFLEX
33742-GFM-971
|
$26.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, LICENSE LIGHT (12V 5W)
34907-GFM-971
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, RR.
80105-GFM-A00
|
$57.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, LICENSE
80121-GFM-900
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPECIAL (5MM)
90301-GFM-890
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, WIRE HARNESS (25MM)
90683-SA0-003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (5X16)
93903-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING (4X12)
93903-34380
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
