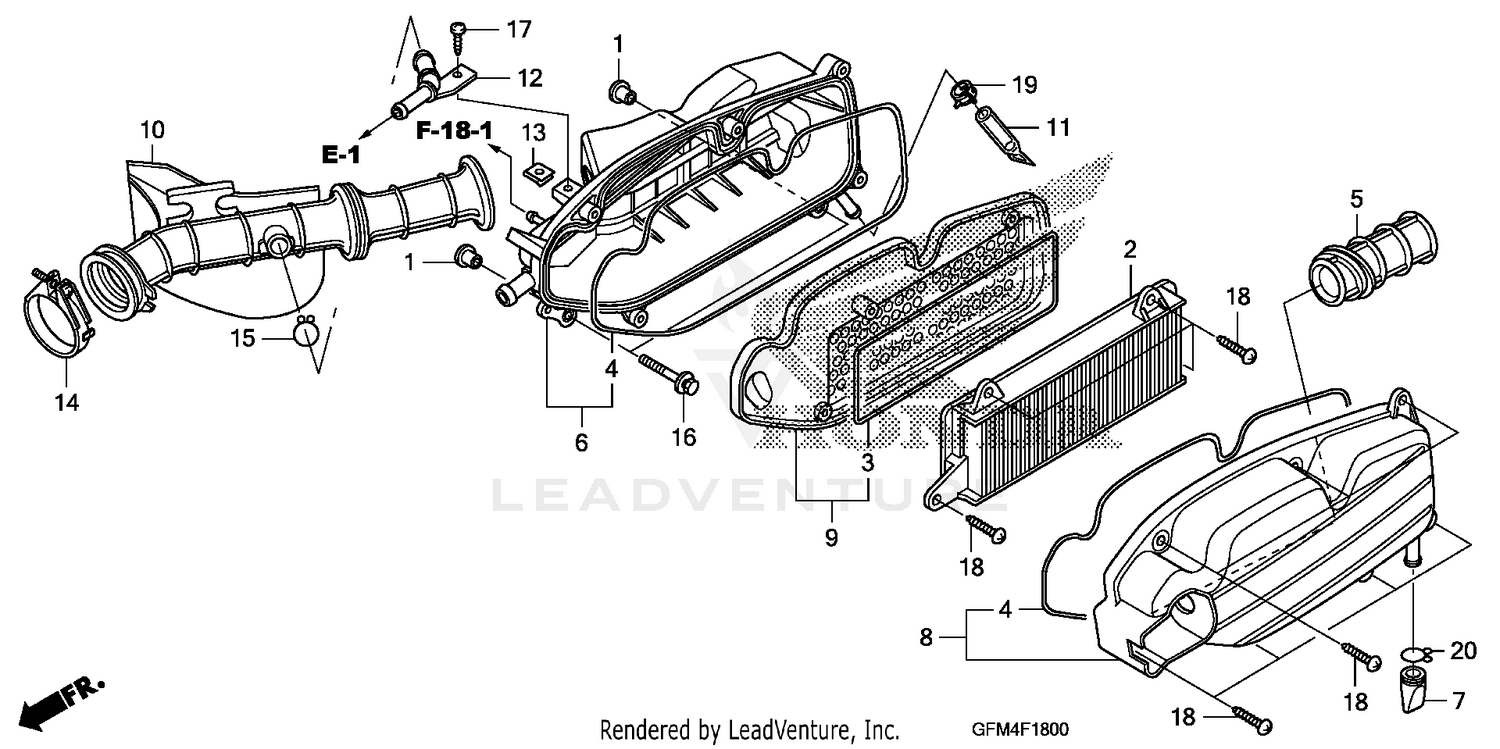

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, AIR CLEANER SETTING
17208-GFM-970
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT, AIR CLEANER
17210-GFM-K00
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, AIR CLEANER COVER
17212-GAH-000
|
$6.10 | ||
|
Unavailable |
|||
|
#4
SEAL D, AIR CLEANER
17212-GFC-900
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUCT, AIR CLEANER
17215-GFM-901
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE SUB-ASSY., AIR CLEANER
17225-GFM-970
|
$55.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, AIR CLEANER DRAIN
17234-KCW-871
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER SUB-ASSY., AIR CLEANER
17235-GFM-901
|
$42.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER SUB-ASSY., ELEMENT
17245-GFM-901
|
$19.64 | ||
|
Unavailable |
|||
|
#10
TUBE, AIR CLEANER CONNECTING
17253-GFM-900
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, DRAIN
17261-GFM-900
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, BREATHER
17375-GFM-900
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING (4MM)
90303-GFM-970
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (40)
90652-GFM-K00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, TUBE
90652-MB1-000
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X40)
93404-06040-08
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING (5X20)
93903-25480
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, TUBE (D12)
95002-41200-08
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, TUBE (C12)
95002-80000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
