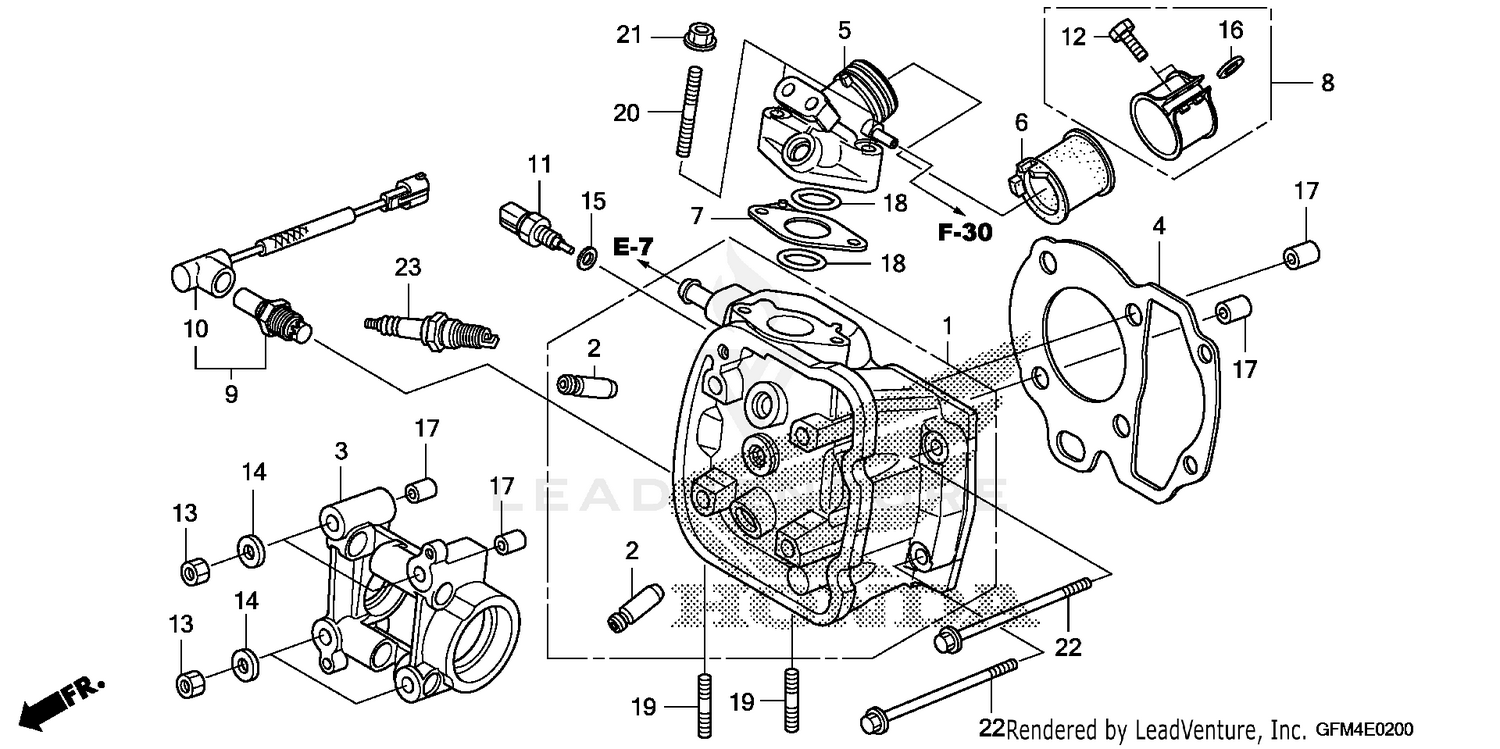

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-GFM-K00
|
$268.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-KVB-305
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CAMSHAFT
12211-GFM-970
|
$121.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-GFM-890
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, INLET
17110-GFM-K00
|
$53.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, INLET
17110-GFM-K01
|
$53.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
17112-GFM-B20
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, IN. PIPE
17119-GFM-970
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
17255-GFM-900
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, OXYGEN
36532-GFM-901
|
$141.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, OXYGEN SENSOR
36533-GFM-901
|
$50.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY., WATER TEMPERATURE
37870-KTF-641
|
$34.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, RECESSED (5X20)
90005-MBW-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (7MM)
90201-GCC-C50
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (7.2X16X2.5)
90401-GFM-900
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL (12MM)
90454-GFM-900
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (5MM)
90482-GCC-C50
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (8X14)
90701-GF6-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (25.5X1.9)
91308-GFM-900
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD (6X12)
92900-06012-0B
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 2, STUD (6X32)
92900-06032-0B
Superseded by 92900-06032-0E
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 2, STUD (6X32)
92900-06032-0E
|
$2.77 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X100)
95701-06100-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPARK PLUG (CR7EH9) (NGK)
98059-57916
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-57926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR8EH9) (NGK)
98059-58916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-58926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-58926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59910
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59910
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
|
#23
SPARK PLUG (CR9EH-9) (NGK)
98059-59926
Superseded by 98059-59916
|
$9.86 | ||
|
Unavailable |
|||
