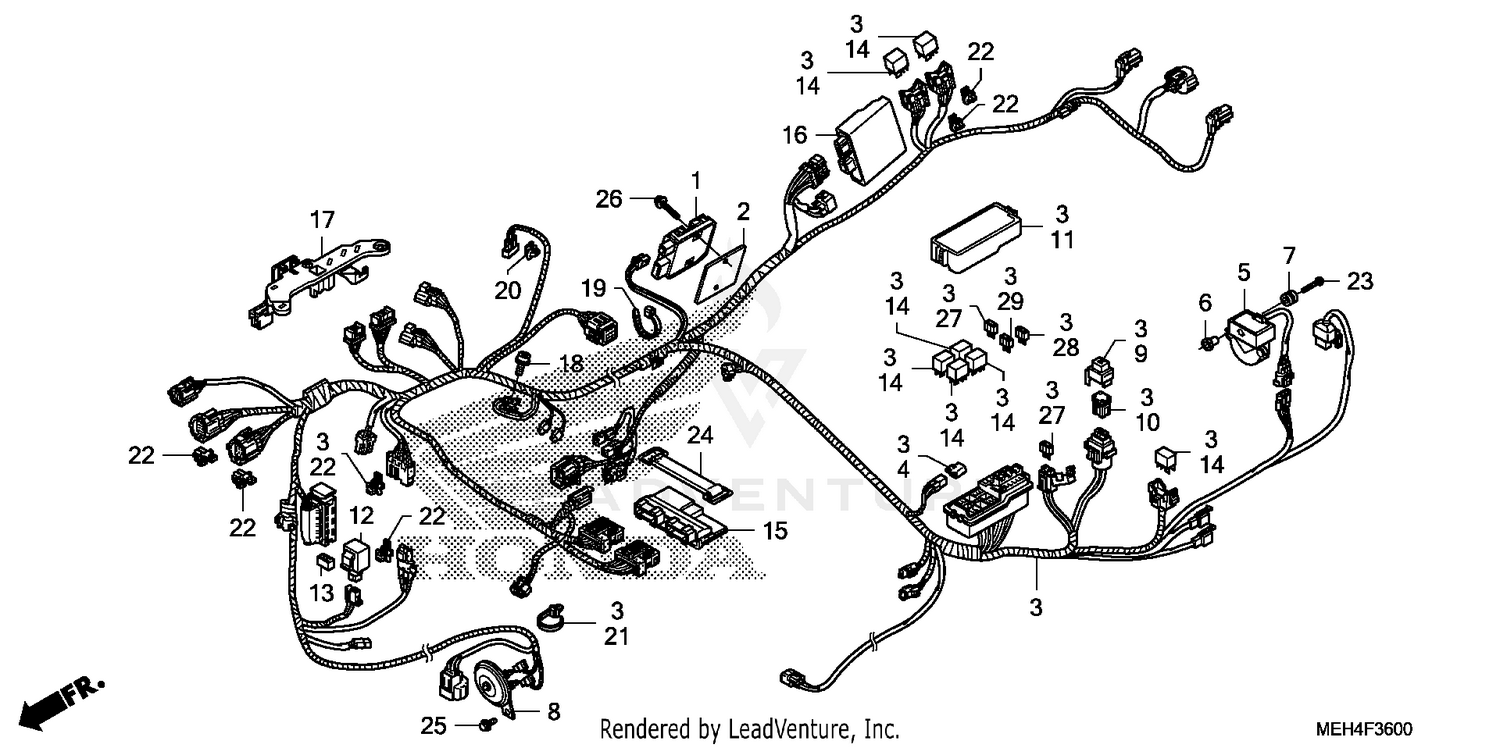

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER, REGULATOR
31600-KVZ-631
|
$430.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, REGULATE RECTIFIER
31601-MEH-000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MEH-670
|
$1,729.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, DUMMY (4P) (RED)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, BANK ANGLE
35161-MEH-003
|
$122.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
35162-MN5-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
35163-MN5-003
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
HORN (LOW)
38120-MEH-003
|
$81.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER (UPPER)
38252-MFJ-D01
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY, TURN SIGNAL (MITSUBA)
38301-MEW-921
|
$54.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
38306-KK4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#15
PGM-FI UNIT
38770-MEH-671
|
$832.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
CONTROL UNIT
38910-MEH-671
Superseded by 38910-MEH-672
|
$592.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, FR. CONNECTOR
50255-MEH-000
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (6X12)
90003-HA0-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SUCTION HOSE (BLACK)
90679-SG9-E01
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, CONNECTOR (NATURAL)
91533-S04-003
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, HARNESS BAND (145MM) (BLACK)
91541-S0A-003
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (4X20)
93500-04020-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND B2, BATTERY
95012-13001
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X12)
95701-08012-00
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE, MINI (30A)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
