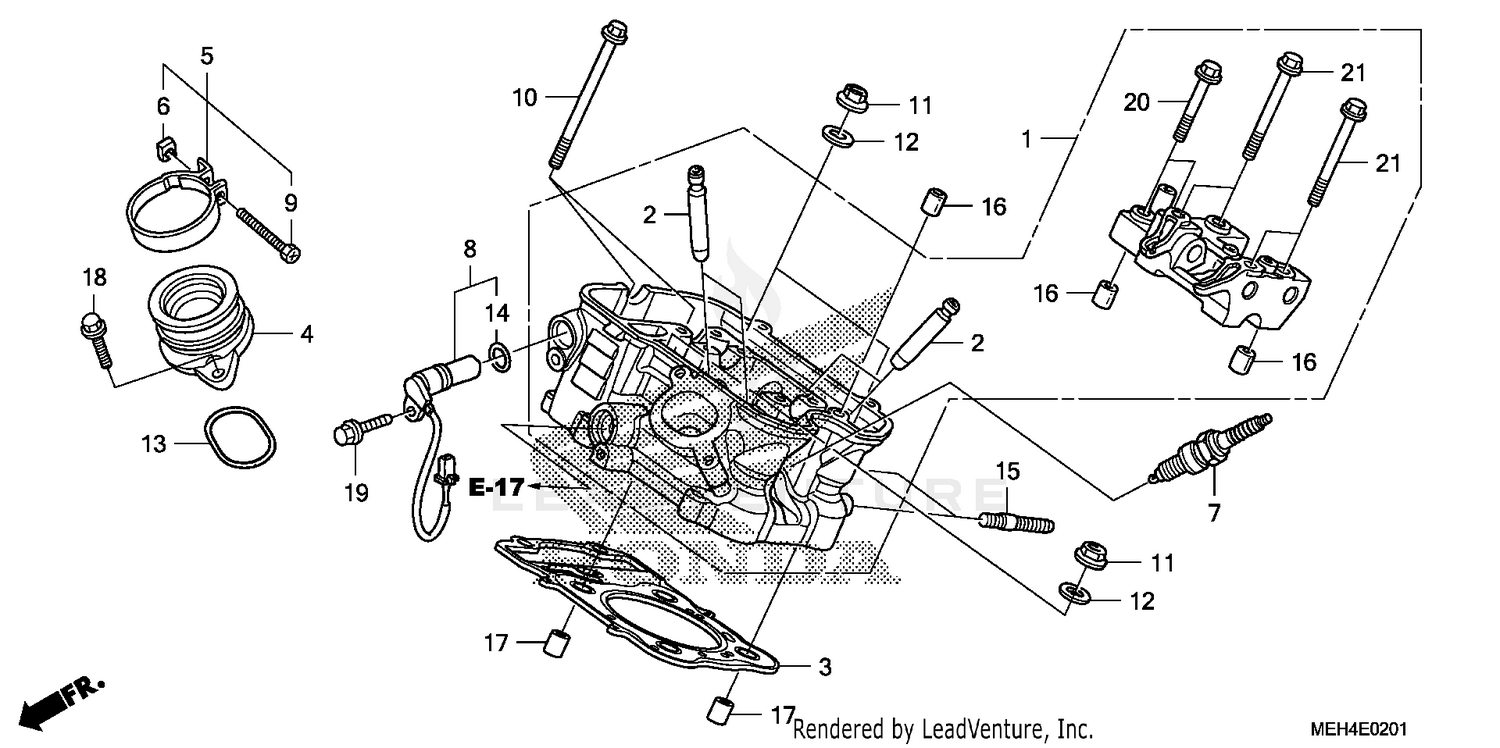

Rear Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY., RR.
12020-MEH-000
|
$945.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MEW-P00
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MEH-003
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
INSULATOR, THROTTLE BODY
16210-MEW-920
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND B, INSULATOR
16218-MAT-000
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG (SIMR8A9) (NGK)
31916-MEH-003
|
$22.13 | ||
|
Unavailable |
|||
|
#8
PULSER ASSY., CAM
36140-MEH-003
|
$167.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, RECESSED (5X32)
90005-MM4-000
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (8X135)
90006-MM5-640
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (10MM)
90204-634-000
Superseded by 94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (10MM)
94030-10000-07
Superseded by 94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#12
WASHER (10MM)
90410-HC4-000
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (45X2.5)
91303-397-000
|
$6.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (16X2.1) (NOK)
91309-PX4-003
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X22)
92900-08022-0E
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X18)
95701-06018-07
|
$1.70 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X70)
95701-08070-00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
