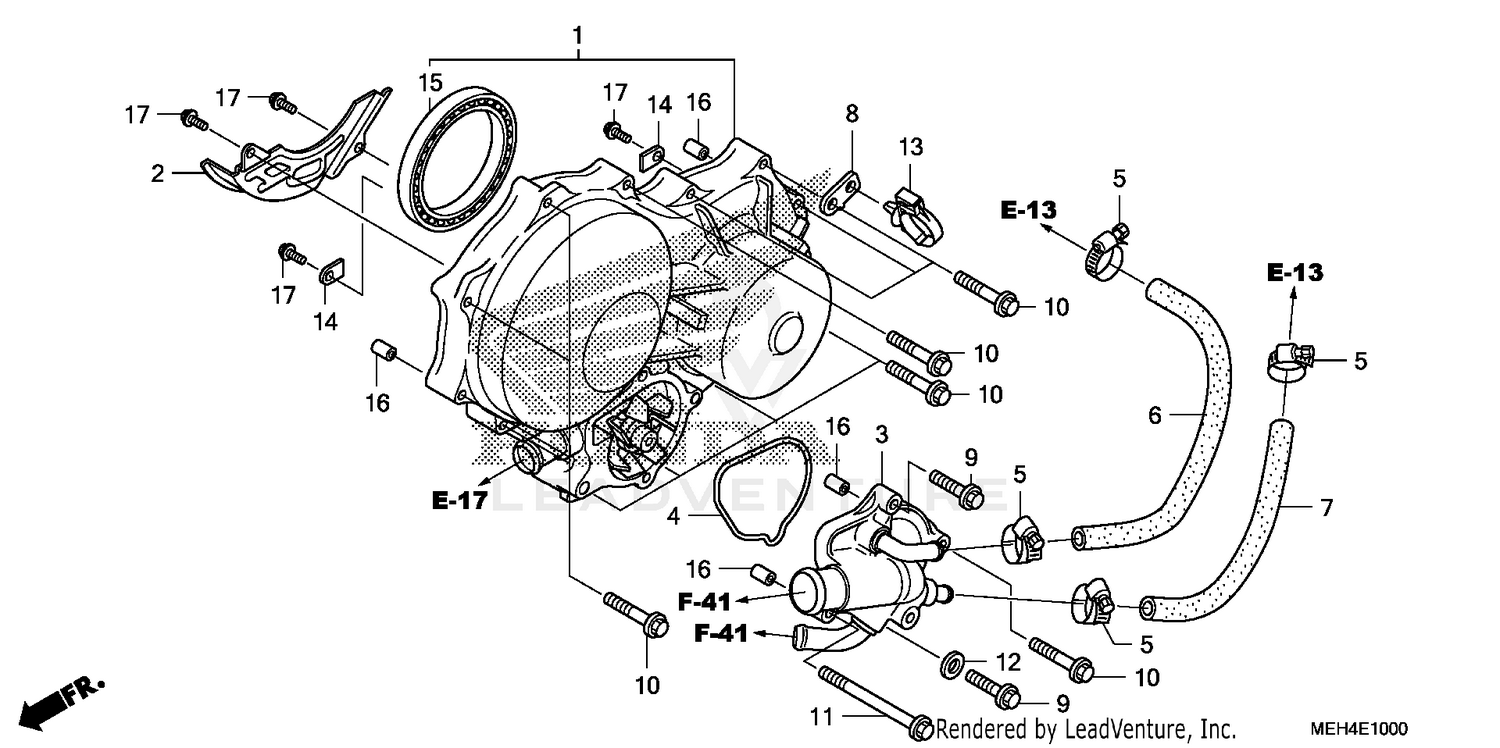

Left Crankcase Cover + Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L.
11340-MEH-000
|
$373.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEPARATOR B, OIL
15713-MEH-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, WATER PUMP
19220-MEH-000
|
$128.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, WATER PUMP
19226-MEH-000
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP A, WATER HOSE
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE A, WATER
19521-MEH-000
|
$21.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE B, WATER
19522-MEH-000
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, HARNESS CLIP
32157-MFJ-D00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X75) (NSHF)
90006-GHB-780
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE B, BEARING SETTING
91012-MEL-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6816)
91022-MEH-003
|
$73.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
