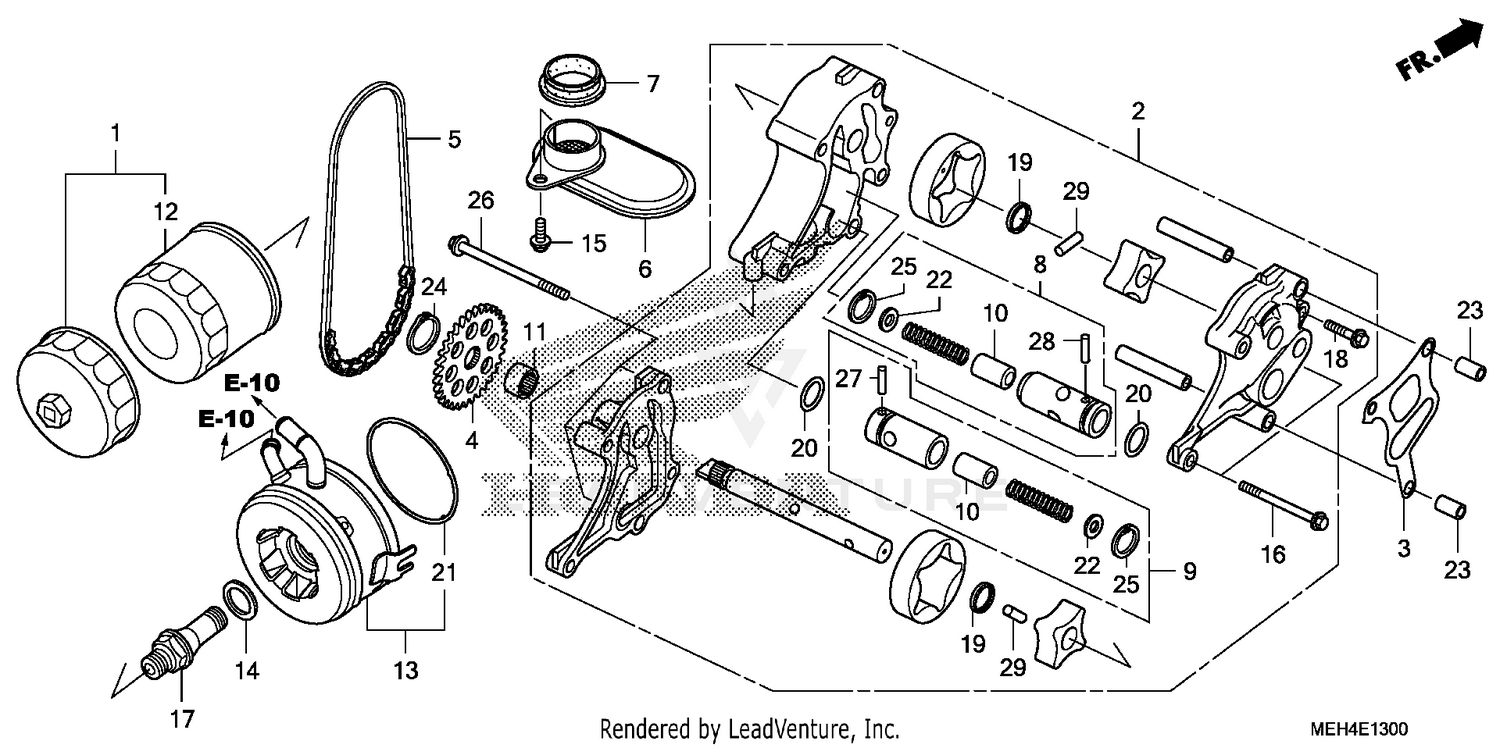

Oil Filter + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER SET, OIL
15010-MCE-H51
Superseded by 15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
PUMP ASSY., OIL
15100-MEH-000
|
$389.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, OIL PUMP
15133-MEH-003
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN (28T)
15134-MEH-000
|
$42.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, OIL PUMP DRIVE (64L)
15136-MEH-003
|
$19.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER, OIL
15150-MEH-000
|
$28.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, OIL STRAINER
15154-MEH-000
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY., RELIEF
15220-HN7-010
|
$31.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE ASSY., RELIEF
15220-ME9-770
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, RELIEF
15231-413-020
|
$23.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, OIL PUMP SPROCKET
15237-MEH-000
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COOLER, OIL
15700-MEH-003
|
$259.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING (24MM)
23929-PX4-700
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X14) (CT200)
90014-952-000
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X65)
90015-ZG0-801
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL COOLER
90019-MCJ-000
|
$36.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25) (CT200)
90121-952-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (13MM)
90456-MC7-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (14.8X2.2)
91313-MG7-004
|
$4.62 | ||
|
Unavailable |
|||
|
#21
O-RING, OIL COOLER
91354-MEJ-641
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN (5MM)
94101-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP, OUTER (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (INNER) (12MM)
94520-12000
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X95)
95701-06095-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROLLER (3X16.8)
96220-30168
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROLLER (3X17.8)
96220-30178
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
ROLLER (5X17.8)
96220-50178
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
