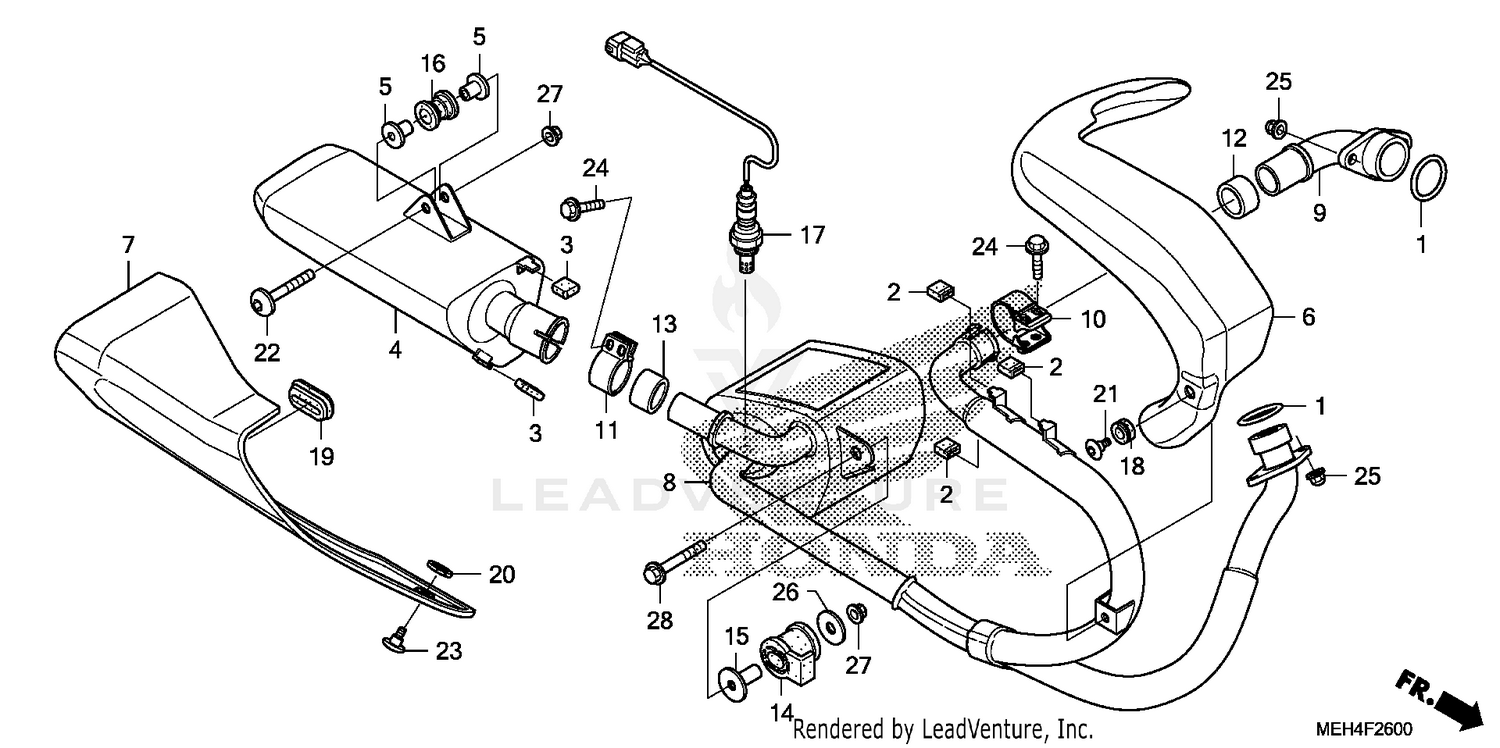

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MN4-920
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, PROTECTOR GASKET
18293-MBC-000
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER
18310-MEH-670
|
$881.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. CHAMBER (8.5X15)
18327-KAE-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR A, EX. PIPE
18341-MEH-000
|
$368.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, FR. MUFFLER
18342-MEH-000
|
$270.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAMBER, EX.
18350-MEH-670
|
$2,202.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, RR. EX.
18370-MEH-003
|
$87.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, MUFFLER
18373-ML7-920
|
$32.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, MUFFLER
18375-MEH-000
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
18391-ML8-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER
18392-MEH-000
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, CHAMBER MOUNTING
18421-MEH-000
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, CHAMBER MOUNTING
18422-MEH-000
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, MUFFLER MOUNTING
18423-MEH-000
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR, OXYGEN
36531-MEH-003
|
$167.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, HEAT GUARD MOUNTING
50176-ML7-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET, SIDE COVER
83551-ME9-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, RUBBER
84708-KPM-000
Superseded by 84708-KPM-010
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X14)
90113-MM5-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X45)
90128-MBE-000
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (6X14)
90138-MCA-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X35)
90161-ML7-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CAP (8MM)
90208-438-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (8MM)
90501-819-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X55)
95701-08055-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
