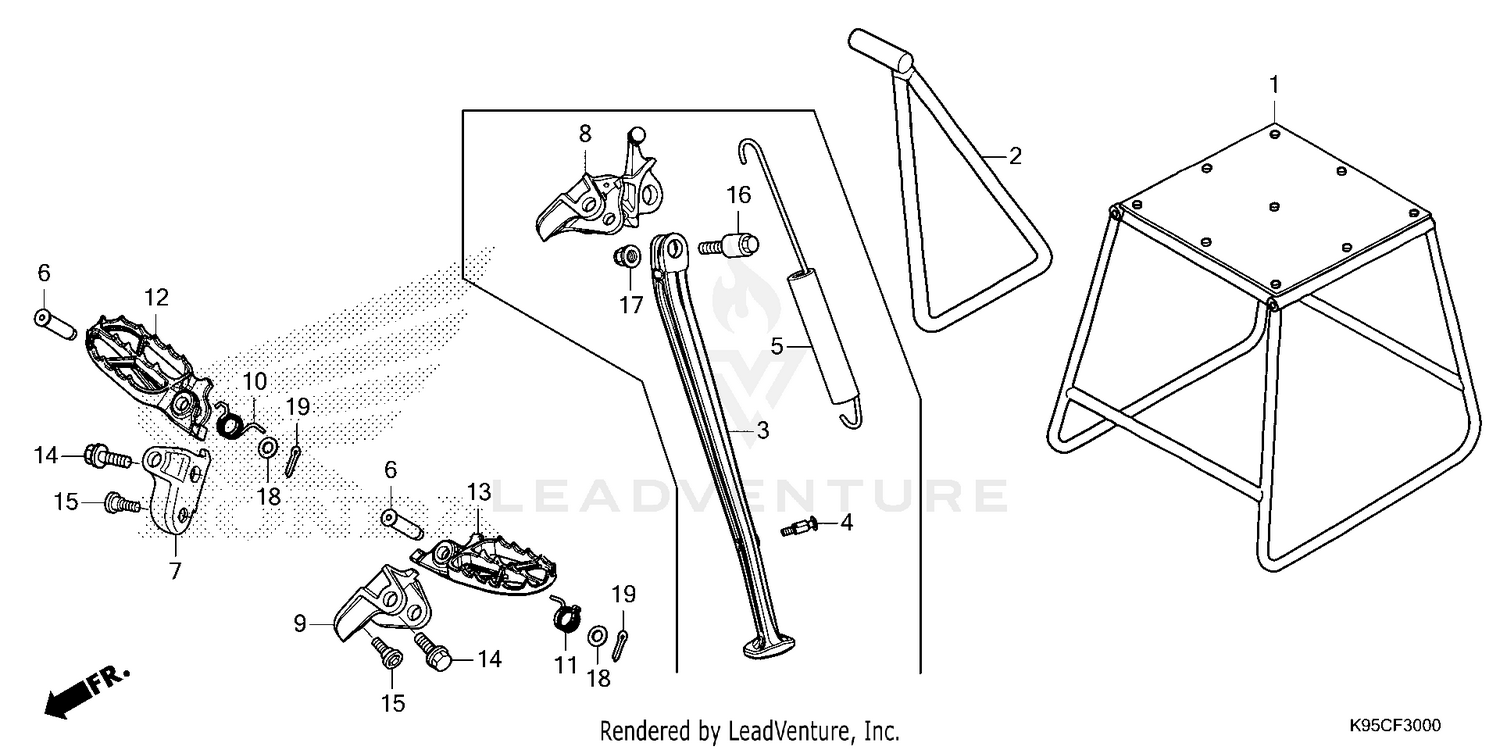

Step@stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WORKSTAND (17")
50500-KA3-820
|
$147.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAR, SIDE STAND
50530-MKE-AG0
|
$210.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SIDE STAND SPRING
50538-MKE-A10
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING ASSY., SIDE STAND
50540-MKE-A80
|
$23.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, STEP JOINT
50603-KZ4-J40
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, R. STEP
50610-MEN-B10
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, L. STEP (NOT AVAILABLE)
50611-K95-A50
|
$133.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, R. STEP RETURN
50617-KZ4-J40
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING, L. STEP RETURN
50618-KZ4-J40
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, R. STEP
50660-MKE-A70
|
$58.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, L. STEP
50670-MKE-A70
|
$58.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STEP (12MM)
90106-MKE-AJ0
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STEP BRACKET
90110-MEN-B10
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SIDE STAND PIVOT
90118-MKE-A10
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PIN, SPLIT (2.5X30)
94201-25150
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
