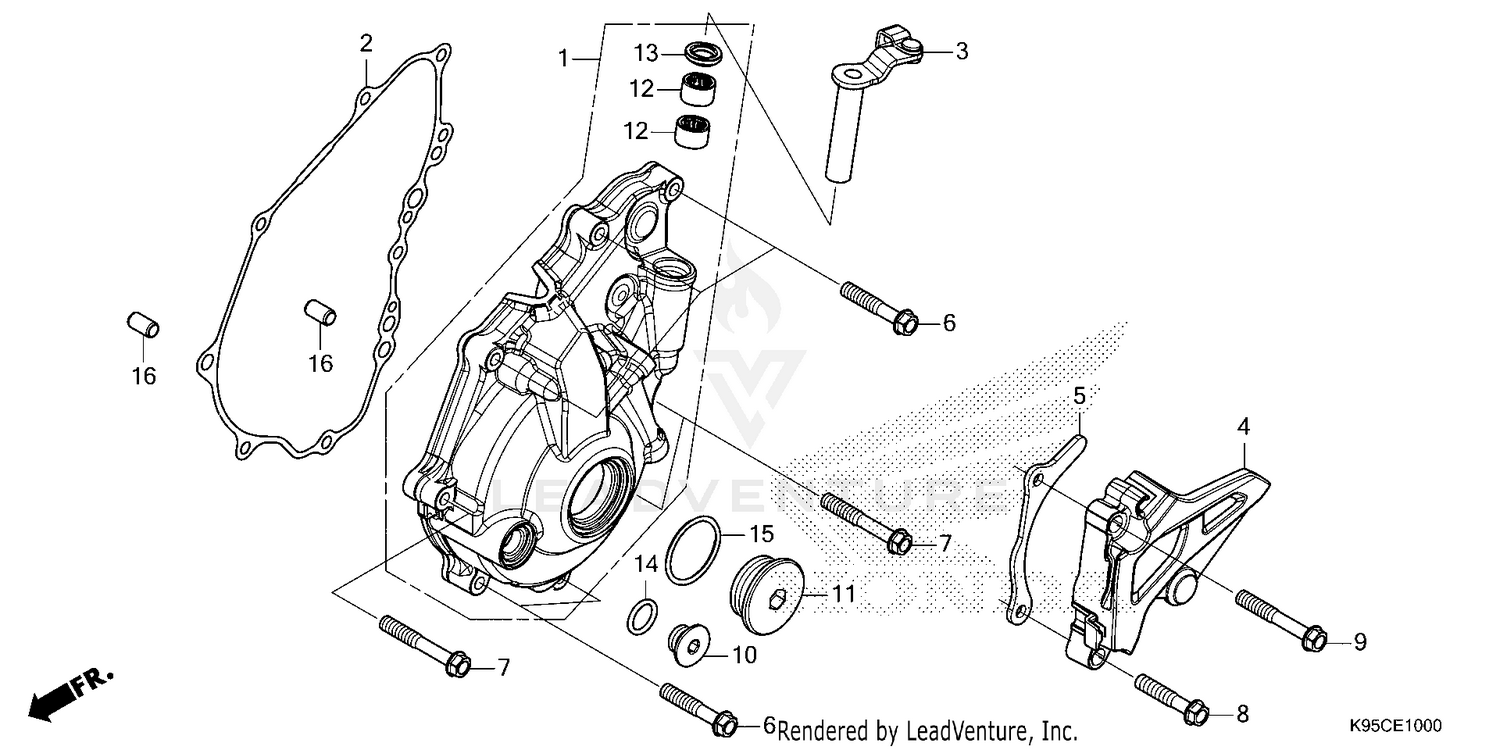

Left Crankcase Cover (crf250r/crf250rx) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11340-K95-AA0
|
$184.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L. COVER
11395-K95-A21
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER COMP
22810-K95-AA1
|
$49.11 | ||
|
Unavailable |
|||
|
#4
COVER, DRIVE SPROCKET
23810-K95-A60
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, DRIVE CHAIN
23812-K95-A20
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X32)
90020-GHB-710
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X40)
90020-GHB-740
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X30)
90021-GHB-700
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X40)
90021-GHB-740
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP (14MM)
90085-K95-AA0
|
$11.58 | ||
|
Unavailable |
|||
|
#11
CAP (32MM)
90087-K95-AA0
|
$20.04 | ||
|
Unavailable |
|||
|
#12
BEARING, NEEDLE (12X16X10)
91053-719-005
Superseded by 91101-PZ9-000
|
$10.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING, NEEDLE (12X16X10)
91101-PZ9-000
|
$10.51 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (12X18X3) (ARAI)
91205-MEB-671
|
$4.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (31.7X2.4)
91305-KRM-840
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
