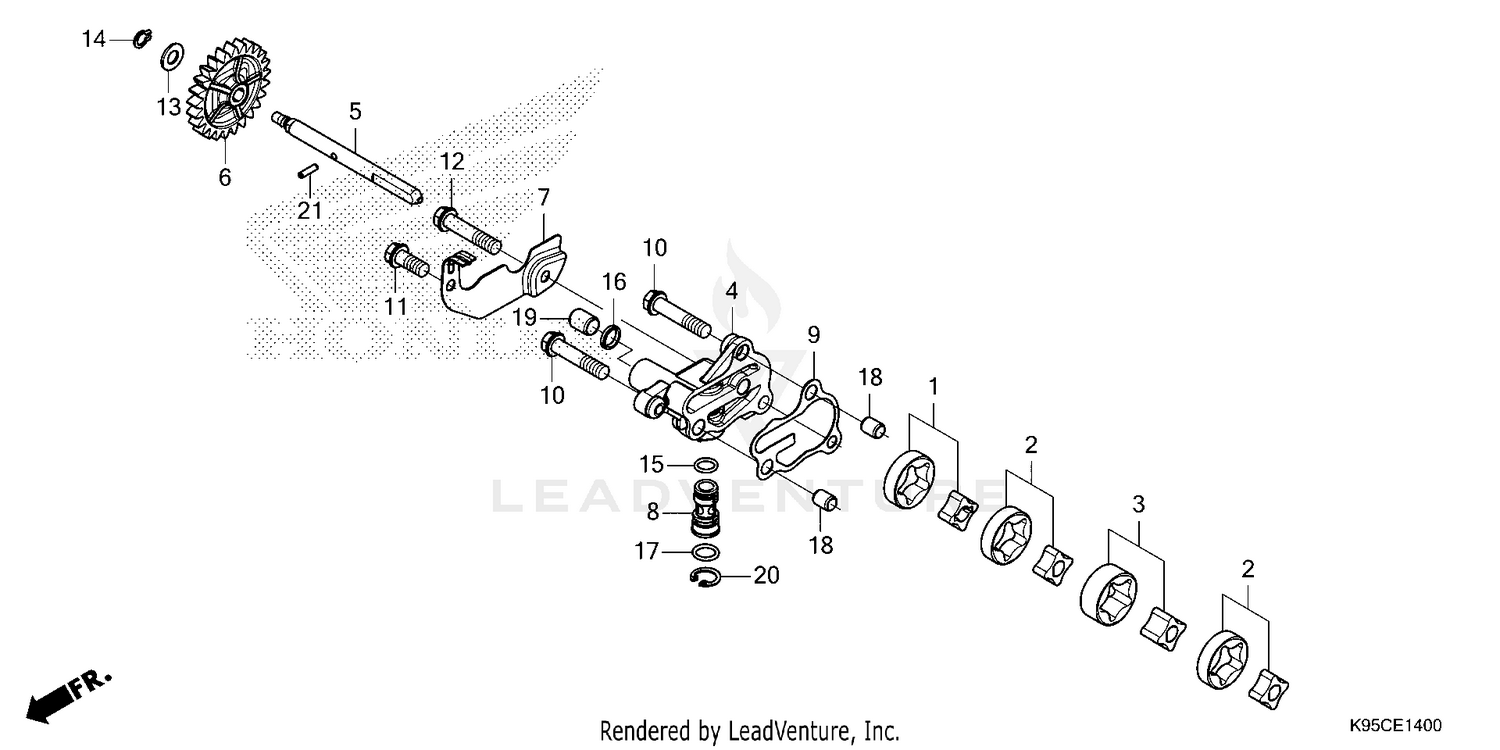

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR SET, OIL PUMP
15021-K95-A20
|
$37.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR SET, OIL PUMP
15022-K95-A20
|
$37.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR SET, OIL PUMP
15023-K95-A20
|
$46.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, OIL PUMP
15101-K95-AA0
|
$76.96 | ||
|
Unavailable |
|||
|
#5
SHAFT, OIL PUMP
15111-K95-A20
|
$54.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR (25T)
15130-K95-AA0
|
$57.22 | ||
|
Unavailable |
|||
|
#7
PLATE
15202-K95-A41
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY., RELIEF
15220-MKE-AA0
|
$44.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, OIL PUMP COVER
15351-K95-A21
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X28)
90020-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X14)
90026-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28)
90026-GHB-690
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER (6MM)
90443-MEL-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (6MM)
90603-MKE-A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (8.5X1.7)
90751-GK1-003
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, RUBBER
91303-KK0-003
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (9.8X1.9)
91305-K95-AA1
|
$3.85 | ||
|
Unavailable |
|||
|
#18
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (10X12)
94301-10120
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CIRCLIP (INNER) (14MM)
94520-14000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROLLER (3X11.8)
96220-30118
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
